Application examples
160 AFG31000 Series Arbitrary Function Generator User's Manual
3. Set the oscilloscope display format to XY.
4. Adjust the amplitude so that the waveform is shown in the graticule. A Lissajous pattern is
displayed.

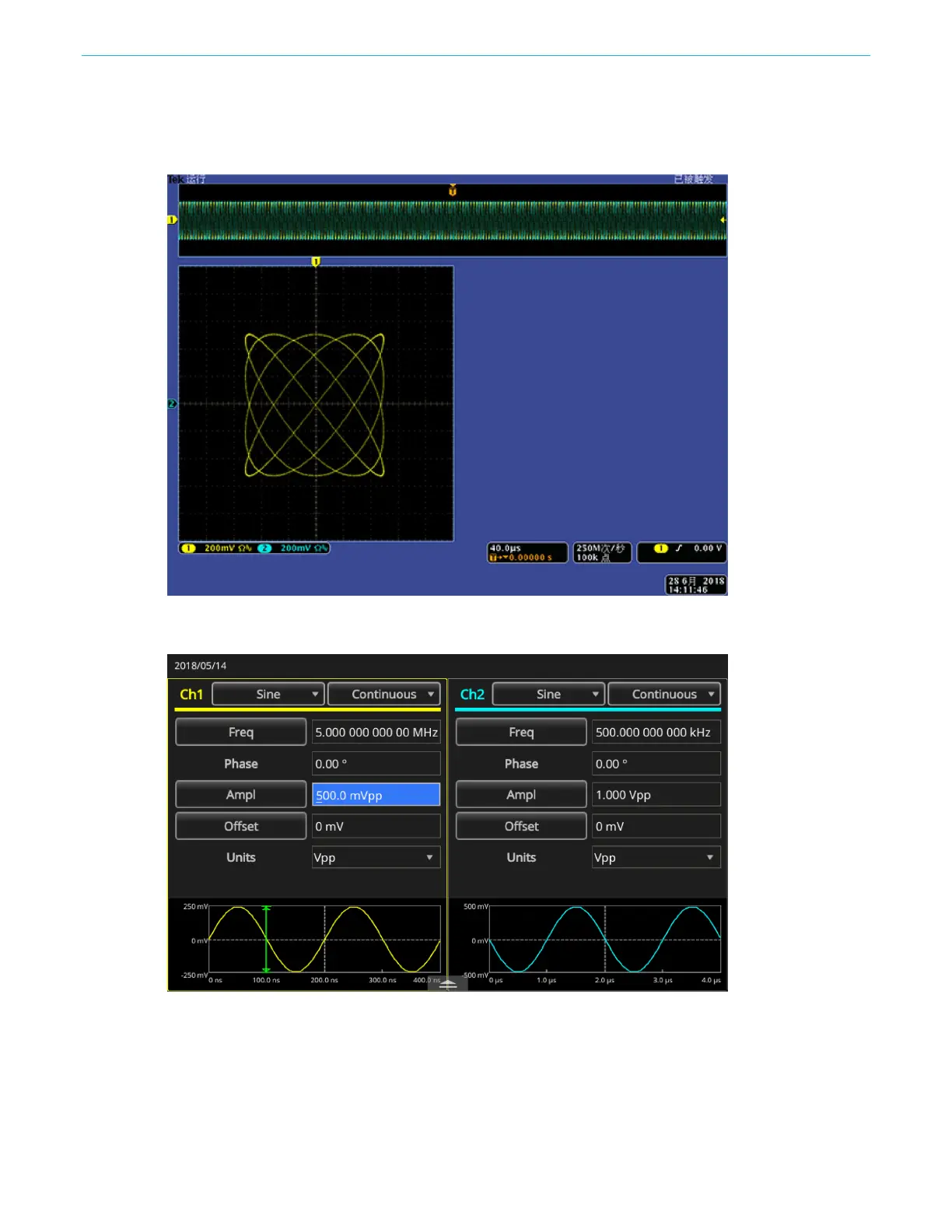

Figure 162: Lissajous Pattern Displayed
5. Change amplitude of AFG31K from 1 Vpp to 0.5 Vpp.
Figure 163: Lissajous pattern change displayed
