AFG31000 Series Arbitrary Function Generator User's Manual 159
Application examples
This section contains a series of application examples. These simplified examples highlight the
features of the instrument and give you ideas for using it to solve your own test problems.
Lissajous patterns
Use your Series 31000 AFG dual-channel model to create a Lissajous pattern and observe the
waveforms with an oscilloscope.
To create a Lissajous pattern:
1. Connect the CH1 and CH2 outputs of the dual-channel instrument and the CH1 and CH2 Inputs
of an oscilloscope with BNC cables.
2. Set the waveform parameters as follows:
 Function: Sine
 RunMode: Continuous
 Amplitude: 1 V
 CH1 Frequency: 400 kHz
 CH2 Frequency: 500 kHz

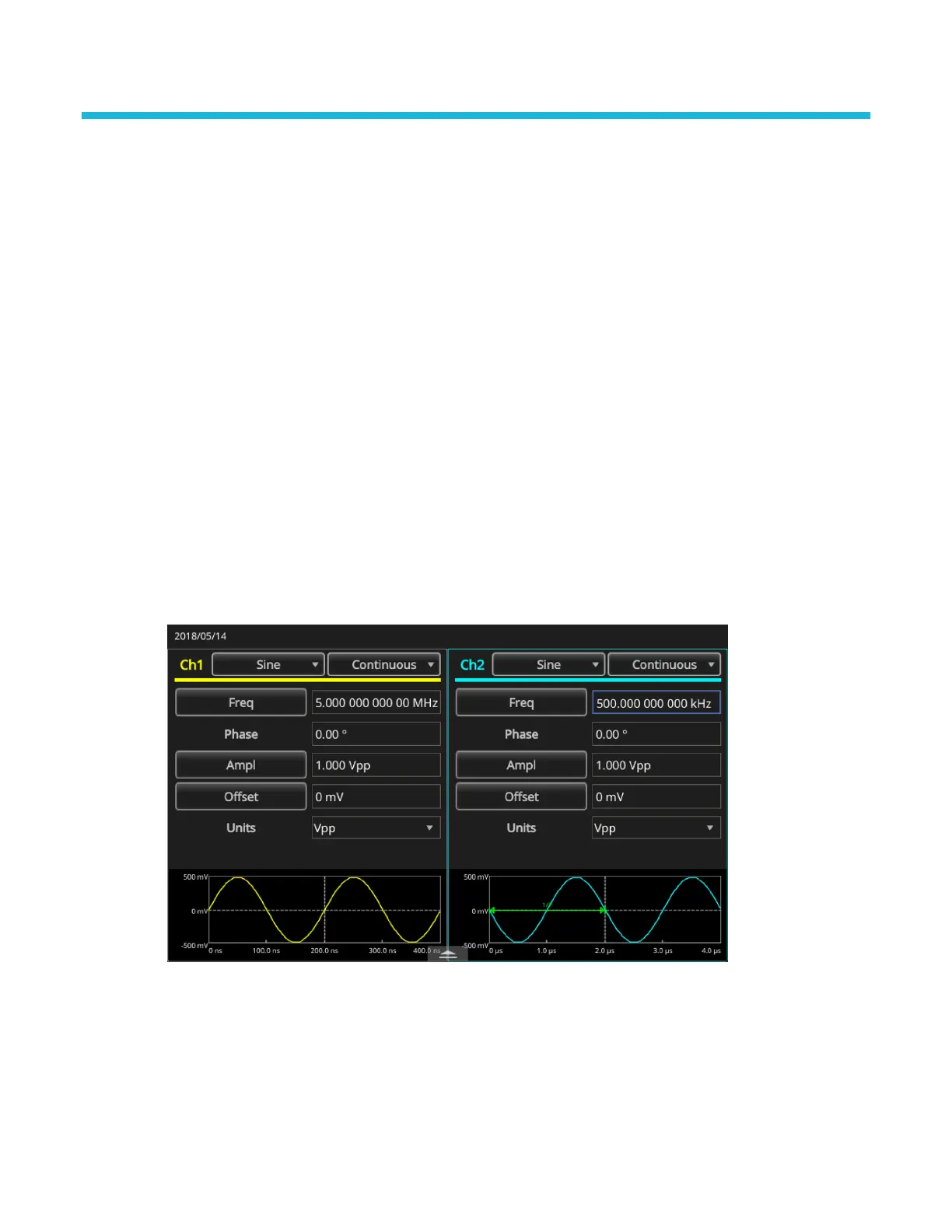

Figure 161: Set the waveform pattern
