Waveform Displa
y and Edit

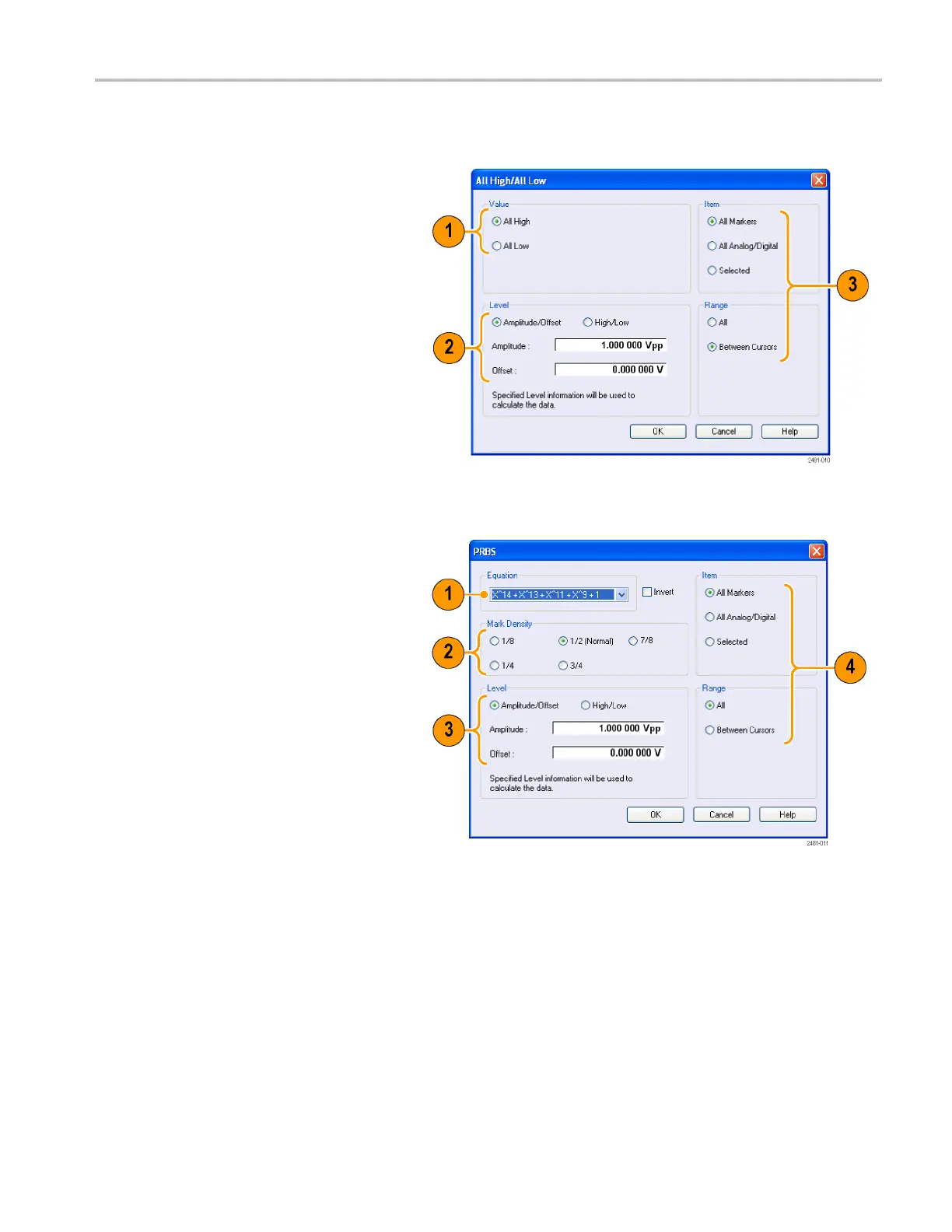

All High/All Low. You can set the specified range of data to high or low using All High/All Low from the Edit > Modify
Pattern menu.
1. Select All High or All Low.
2. Change the Level parameters, if needed.
3. Select the Item and Range.
PRBS. You
can replace a speci fied range of data with a PRBS pattern using PRBS from the Edit > Modify Pattern menu.
1. Select a PRBS pattern from the Equation
list.
2. Select a
Mark Density.
3. Change t
he Level parameters, if needed.
4. Select t
he Item and Range.
AWG5000 and AWG7000 Series Quick Start User Manual 65
