Tektronix AWG7000B Series Quick Start Manual

Tutorials

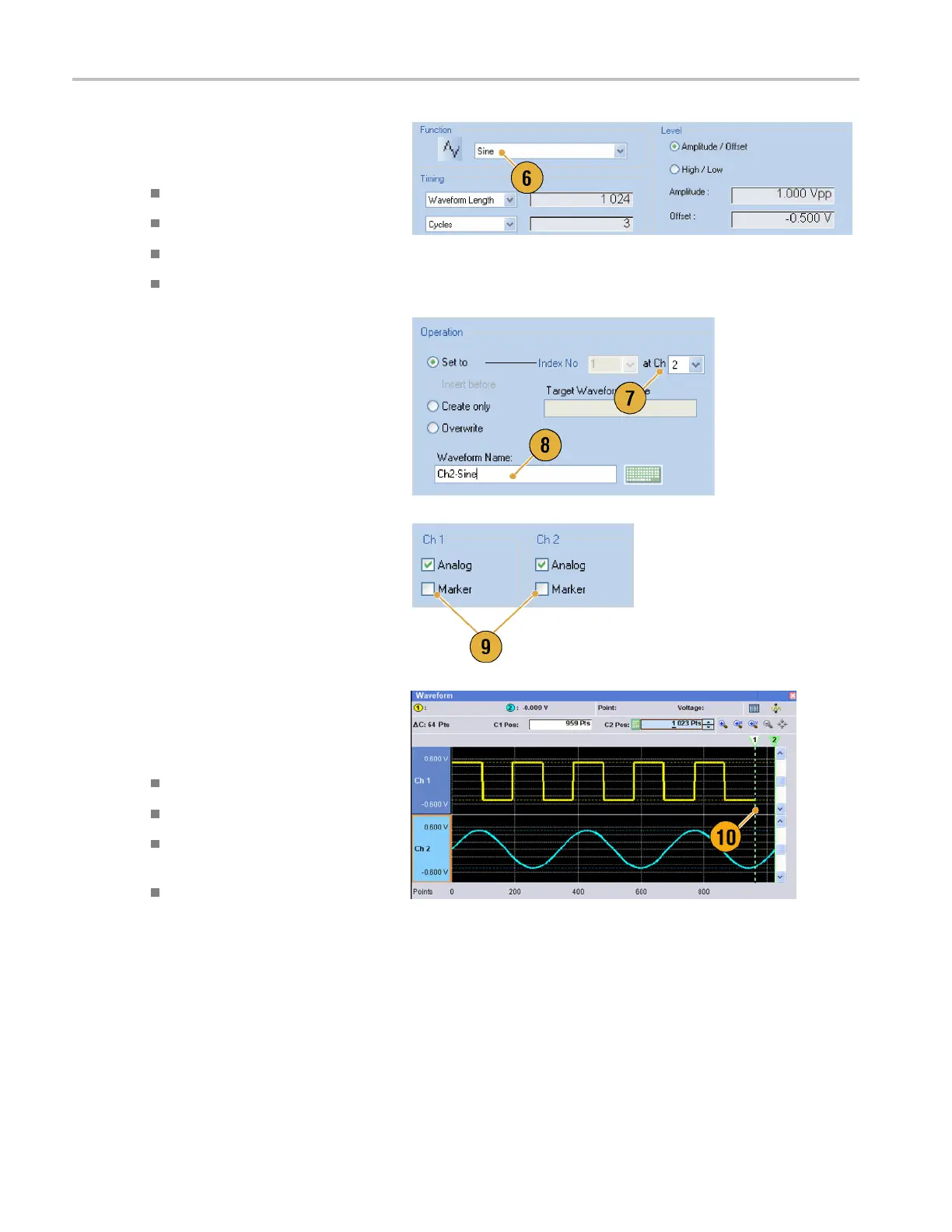

6. Use the Standard Waveform dialog
box to create the sine waveform shown
below:
Waveform Leng
th: 1024 points
Cycles: 3
Amplitude: 1
.0 Vp -p
Offset: –0.
5V
7. Set the wave
form created in step 6 to
Ch 2.
8. Assign the waveform name “Ch2-Sine”
to the waveform.
9. To edit analog waveform data, hide the
Ch1andCh2Marker data using the
Display Properties dialog box.
10. Delete points from the end of the Ch 2
waveform to make it the same length as
the Ch 1 waveform.
Use cursors to set the range.
Position the cursors as shown.
Select the Ch 2 waveform.
Right-click and select: Delete,
Selected, Between Cursors.
Click OK.
80 AWG5000 and AWG7000 Series Quick Start User Manual
