Saving and Recal
ling Setups

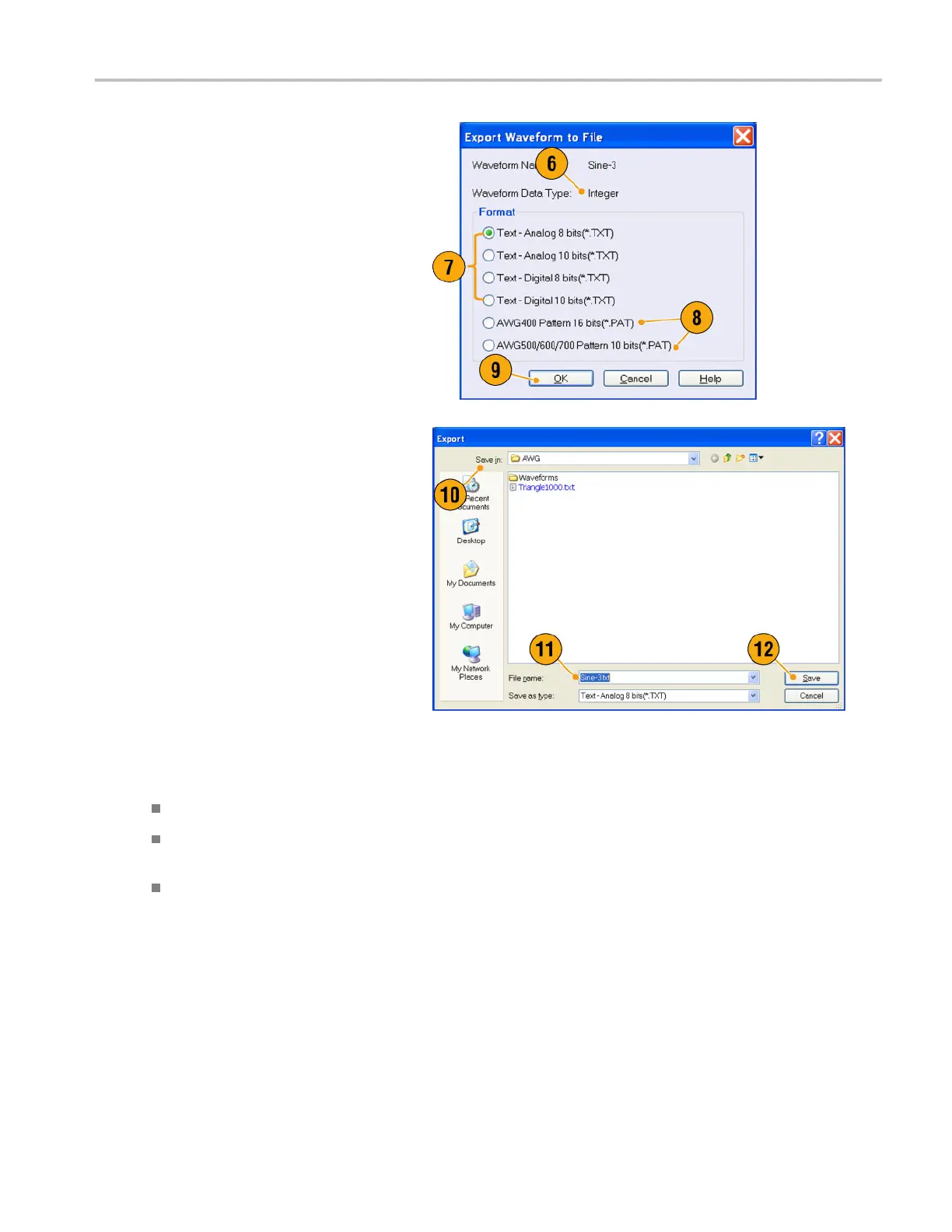

6. This is an example of a dialog box when
you export an Integer format waveform
in an AWG7000 s
eries instrument.
7. You can select
Analog or Digital when
you select a *.txt format. Select Digital
to specify each bit for D AC.
8. You can export an Integer format
waveform int
o a *.pat file for
the AWG400/500/600/700 series
instruments.
9. Click OK. The Export dialog box shown
in step 10 i
s displayed.
10. Select a location to save the waveform
data in Save in box.
11. The waveform name you selected in the
Waveform List window is displayed.
12. Click Save. You can export the selected
waveform data as a specified file format.
Quick Tips
Analog data is exported as normalized value.
You can select DAC resolution w hen an Integer waveform is exported. The selected DAC resolution is used to convert
integer data to normalized value.
To change waveform format (Real or Integer), use the Waveform Properties dialog box. (See page 57, Confirming
Wave
form Properties.)
AWG5000 and AWG7000 Series Quick Start User Manual 49
