Tektronix DPO70000 Series Technical Reference

Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
Check Offset A
ccuracy
≥ 4 GHz models
Equipment Required Prerequisites
One DC calibration generator (Item 6)
One S MA male-to-female BNC adapter
(Item 19)
The instrumen
t must meet the prerequisites.
(See page 3-18, Prerequisites.)
WARNING. The generator is capable of outputting dangerous voltages. To
avoid injury, be sure to set the DC calibration generator to off or 0 volts before
connecting, disconnecting, and/or moving the test hookup during this procedure.
1. Install the test hookup and preset the instrument controls:
a. Hook up the test-signal source:
Set the output of a DC calibration generator to off or 0 volts. Set the
DC impedance of the generator to 50 Ω.
Connect the output of a DC calibration generator to Ch 1 through an
adapter. Refer to the following figure.

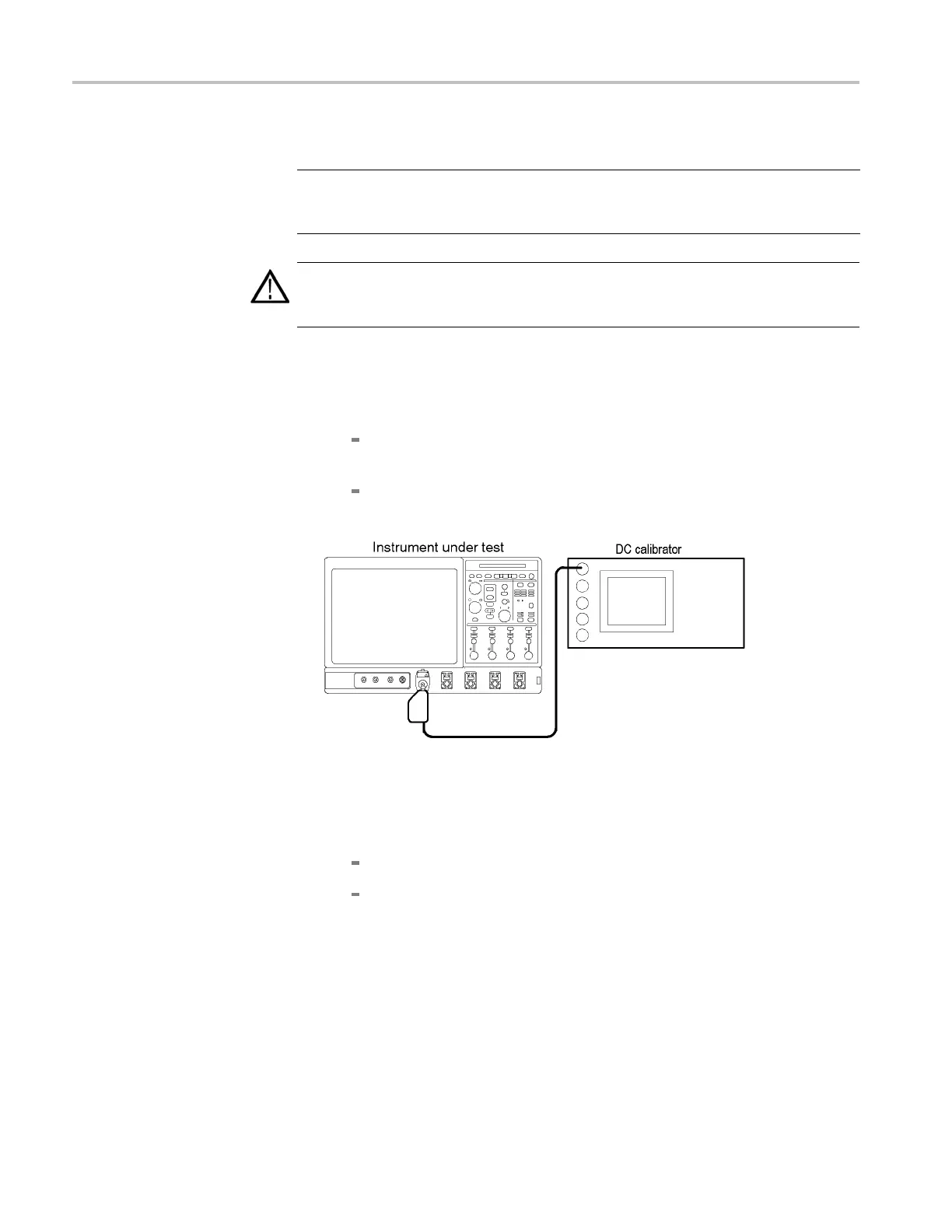

Figu
re 3-11: Initial test hookup
b. Ini
tialize the instrument: Press Default Setup.
c. Modify the default settings:
From the tool bar, touch Horiz/Acq and select the Acquisition tab.
Touch Average andsetthenumberofaveragesto16.
3–56 MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
