Tektronix DPO70000 Series Technical Reference

Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
3. Disconnect the
hookup: Disconnect the equipment from the instrument.

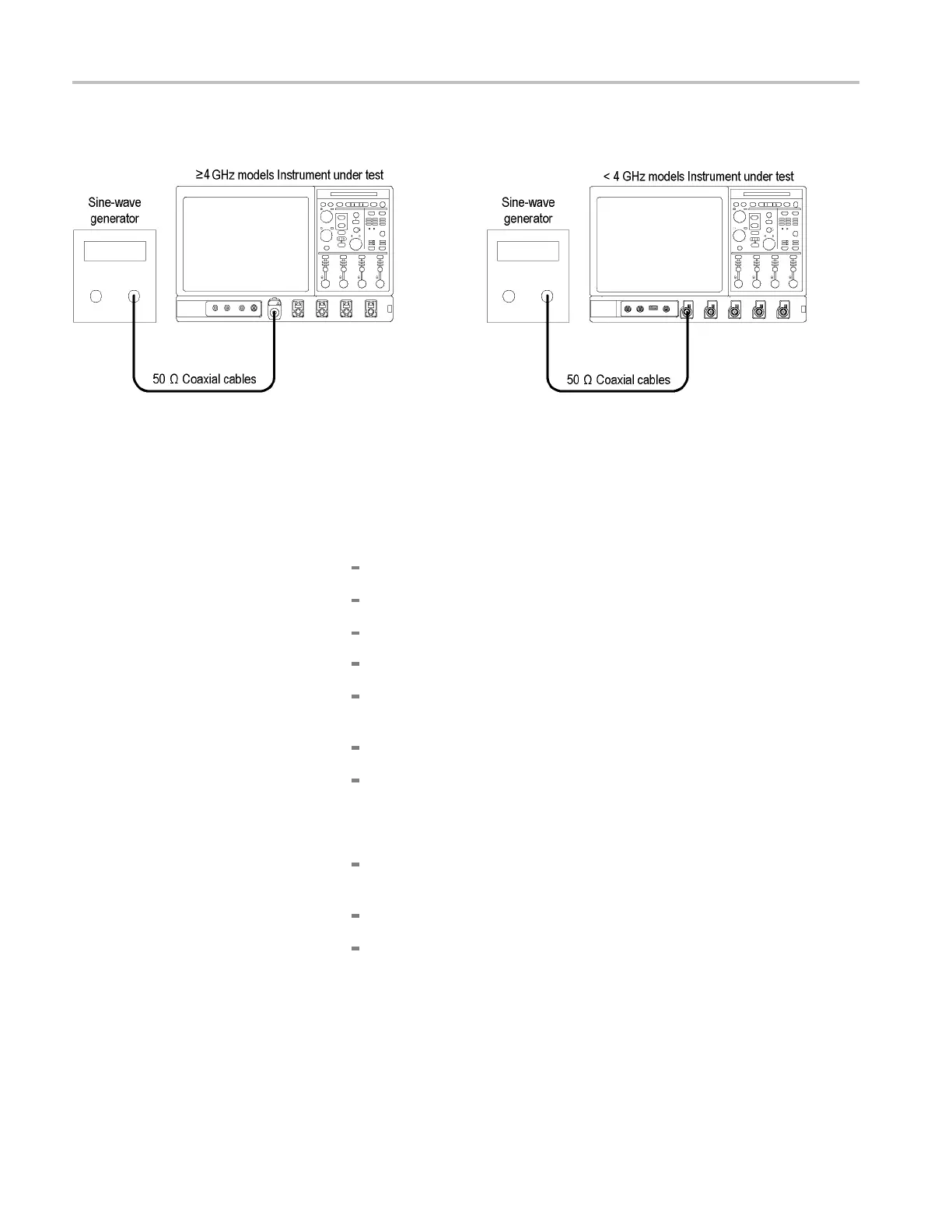

Figure 3-19: Initial test hookup
4. Install the test hookup and preset the instrument controls:
a. Initialize the instrument: Press the Default Setup button.
b. Hook up t
he test-signal source: Connect the output of the sine wave
generator to Ch 1 input. (See Figure 3-19.)
From th
e button bar, touch Measure and select the Ampl tab.
Touch the Pk-Pk button.
Touch the X (Close) button.
Set the Vertical Scale to 50 mV.
< 4 GHz models: Touch Vert ic al, select Ver tical Setup,andthen
touch Termination 50 Ω.
Set the generator for a 10.0 MHz sine wave.
Set the generator to output a 4 division signal. Adjust the output until
the Pk-Pk readout displays 200 mV.
c. Set the instrument controls:
M
ove the cable from the Ch 1 input to the rear-panel Ext Ref input
(See Figure 3-20.)
F
rom menu mode, touch Utilities and sele ct External Signals.
Touch the External button to select the external reference.
3–74 MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
