Tektronix DPO70000 Series Technical Reference

Performance Tests (MSO/DPO5000 Series)
8. Repeat the test
sat50Ω as follows:
a. Set the calibrator impedance to 50 Ω.
b. Push the front-panel oscilloscope Vertical Menu button.
c. Set the Te rmination to 50 Ω.
d. Repeat steps 4 through 6.
9. Repeat the procedure for all remaining channels as follows:
a. Push the fr
ont-panel button to deselect the channel that you have already
tested.
b. Push the f
ront-panel button to select the next channel to be tested.
c. Move the calibrator connection to the next channel to be tested.
d. Starting from step 3, repeat the procedure until all channels have been
tested.
10. Press the Menu Off button.
Check D
C Balance
This test checks the DC balance. You do not need to connect any test equipment
(other than the 50 Ω terminator) to the oscilloscope to perform this check.

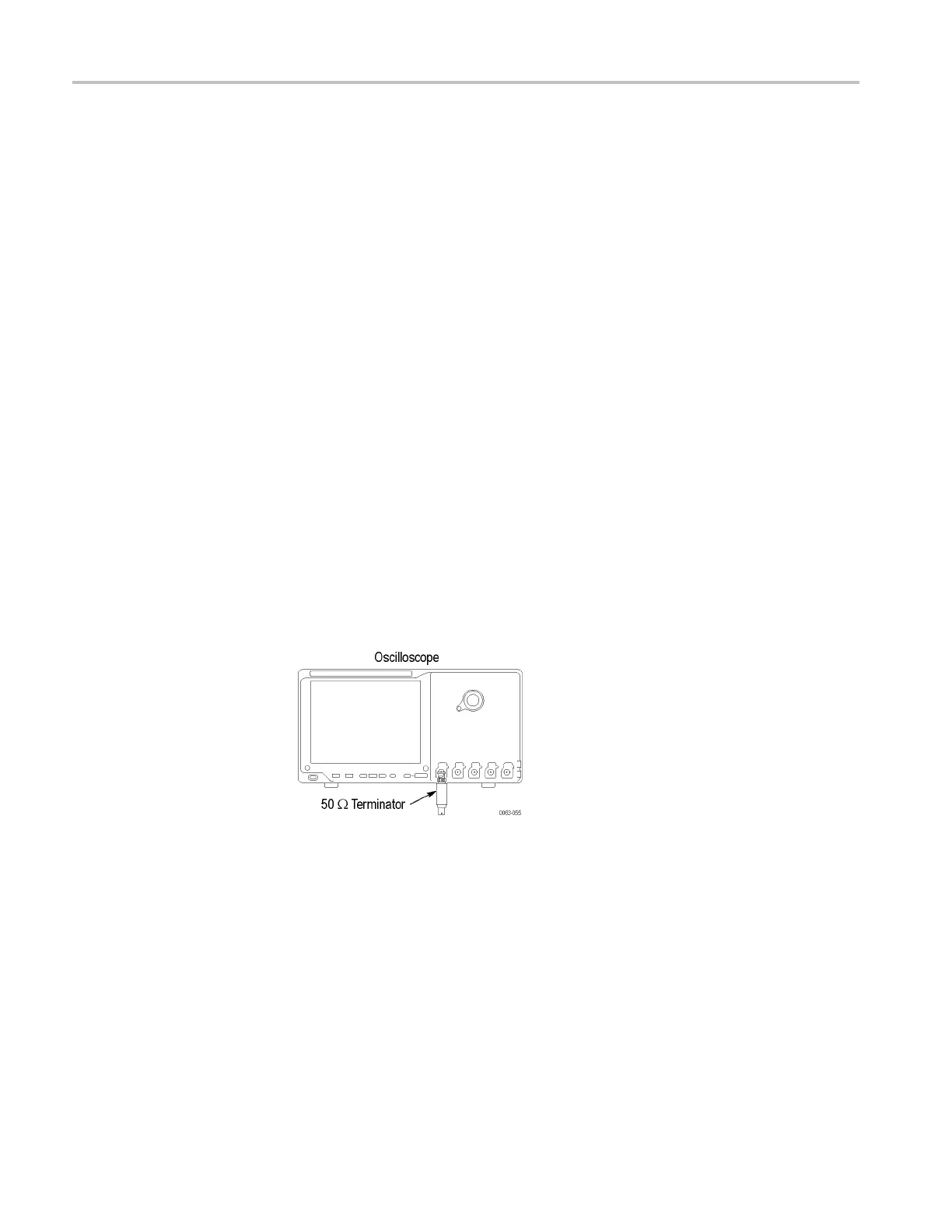

1. Attach a 50 Ω terminator to the oscilloscope c hannel 1 input.
2. Push the front-panel Default S etup button.
3. Set the oscilloscope impedance to 50 Ω as follows:
a. Push the front-panel oscilloscope Vertical Menu button.
b. Set the Termination to 50 Ω.
4. Set the Bandwidth to 20 MHz
5. Set the Horizontal Scale to 1 ms/division.
4–28 MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
