Tektronix DPO70000 Series Technical Reference

Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
Check Serial T
rigger Clock
Recovery Range
Equipment required Equipment r e qu ired
One precision 50 Ω coaxial cable (Item 4)
One sine-wave generator (Item 9)
One adapter (I
tem 19)
The oscillosc
ope must meet the
prerequisites. Also, the instrument
must have passed Check DC Voltage
Measurement
Accuracy. (See page 3-42,
Check DC Voltage Measurement Accuracy.)
1. Install the test hookup and preset the instrument controls:

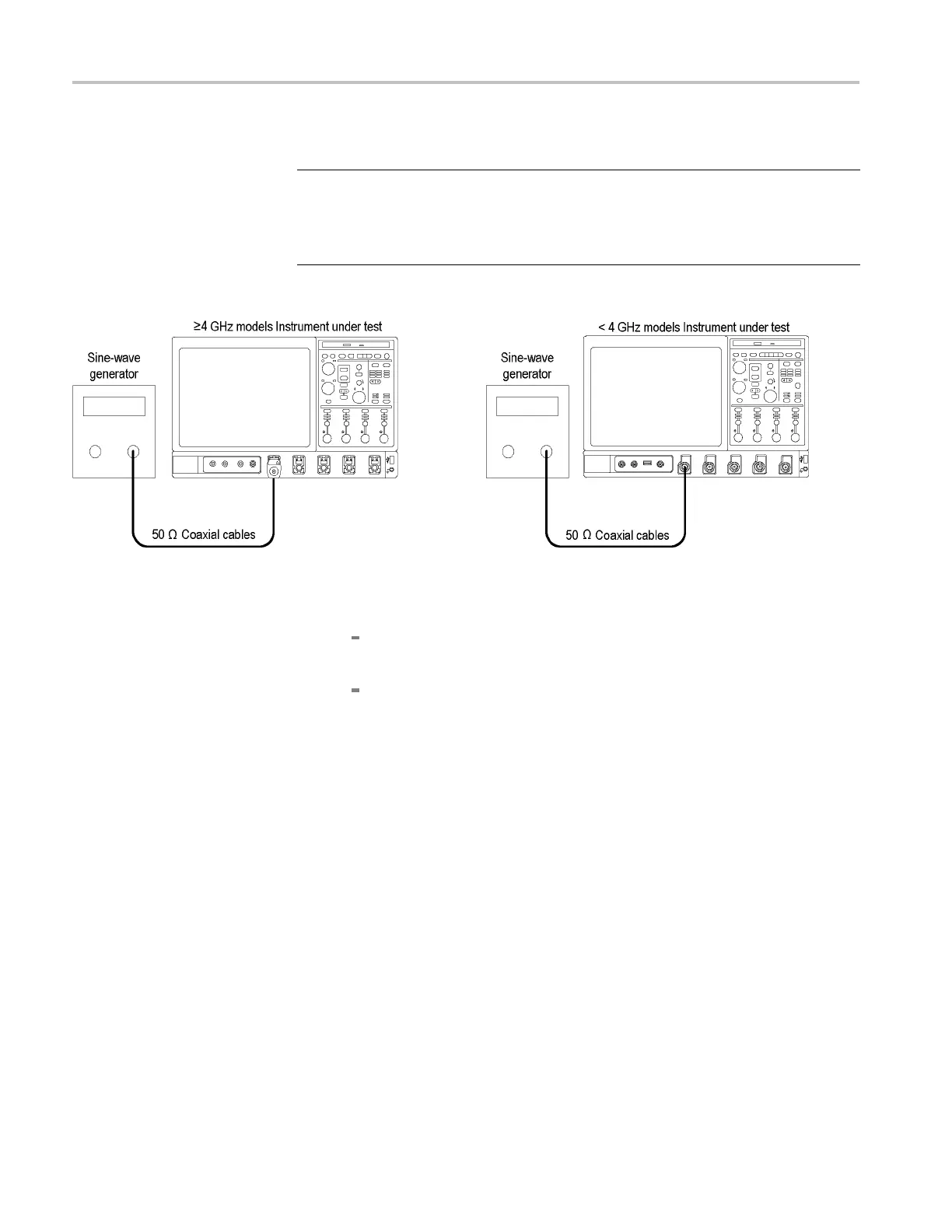

Figure 3-36: Initial test hookup
a. Hook up test-signal source 1: (See Figure 3-36.)
Connect the sine wave output of the sine-wave generator through a
50 Ω precision coaxial cable to Ch 1 through an adapter.
Set the sine-wave generator to output a 1.5625 GHz sine wave.
b. Initialize the instrument: Press the Default Setup button.
3–110 MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
