Digital setups Set u p digital channels
Set up digital channels
NOTE. The Digital Channels D15-D8 and D7-D0 Tabs option is available only on MSO5000 and
MSO70000C Se
ries instruments and DPO5000 Series instruments with option MSOE installed.

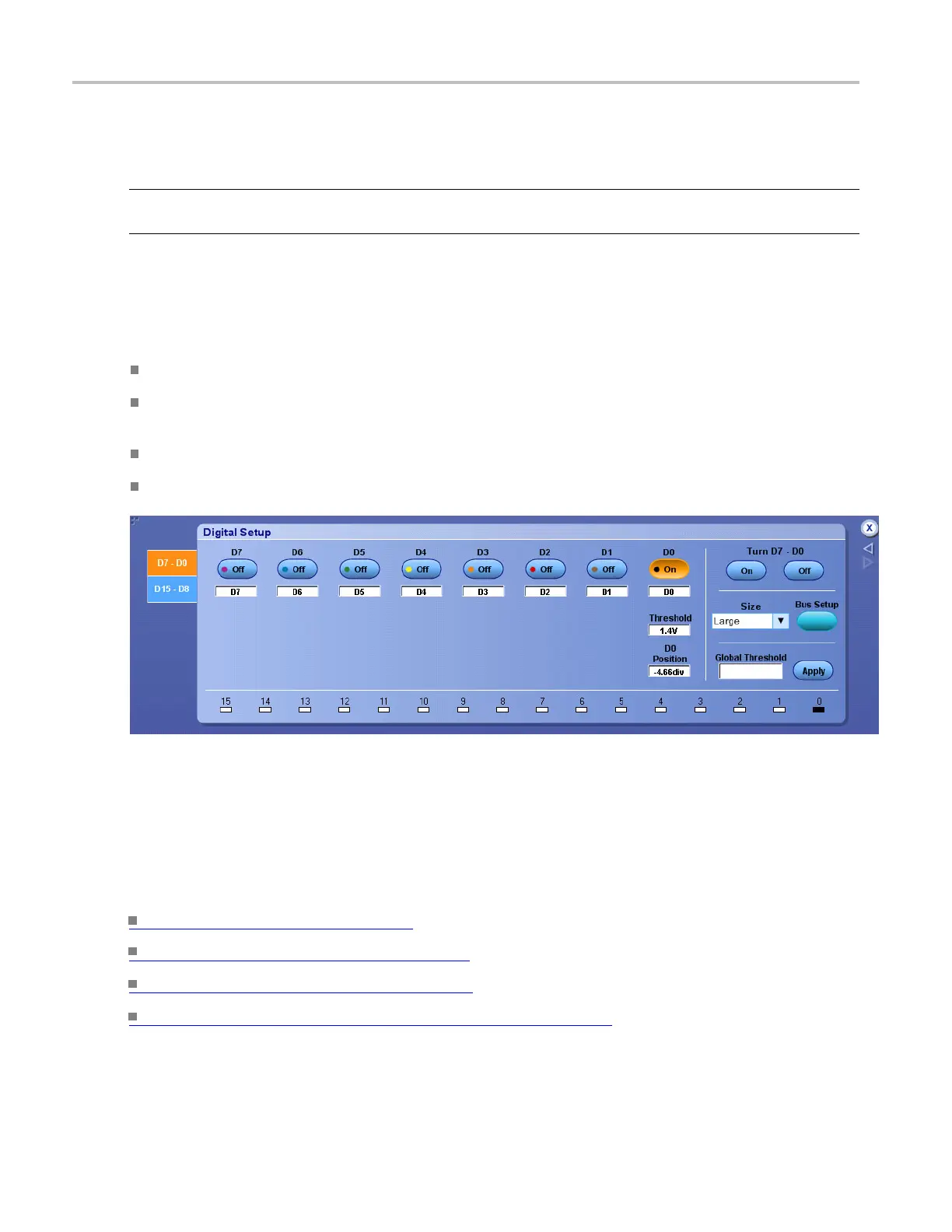

From the Digital Setup menu, select the D15-D8 or the D7-D0 tab to set up digital channels.
To use
Click a digital channel to turn on or turn off the display of the channel.
Click the Threshold entry box and use the keypad to enter a value for the voltage level or use the
multipurpose knobs to select a voltage level.
Click the Position entry box and move the channel using the multipurpose knob.
Select the size of the waveform in the display.
Behavior
As you turn on digital channels, the corresponding channel indicator along the bottom of the menu changes
to match the color on the digital channel button.
What do you want to do next?
Learn about bus setups. (see page 95)
Learn about bus configuration. (see page 148)
Learn more about digital setups. (see page 87)
Learn how to turn on or turn off the digital channels. (see page 91)
94 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
