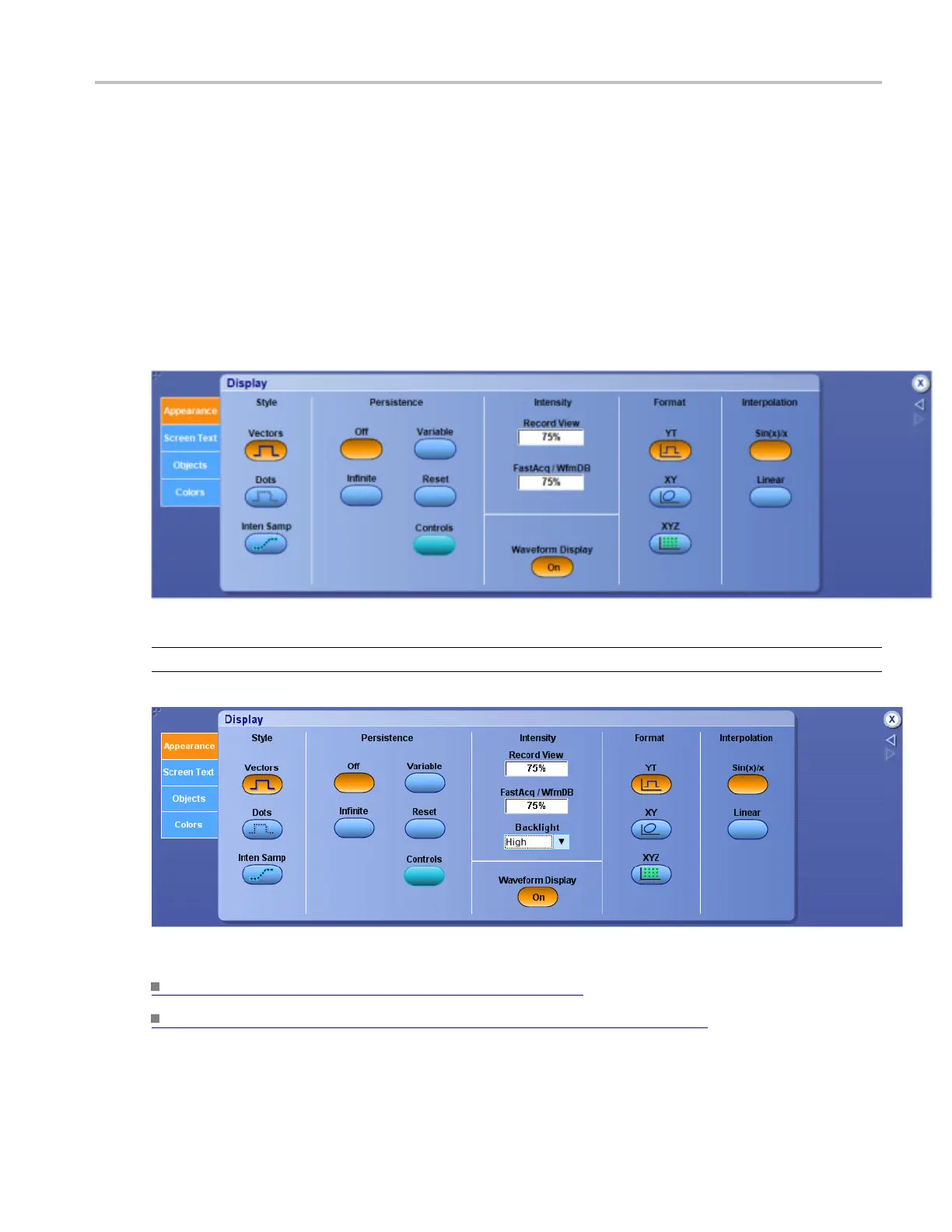

Display setups Display control window (Appearance tab)

Display control window (Appearance tab)

From the Display menu, select Display Setup.

Overview

Use the Display General tab controls to change the display style, persistence, intensity, format, and

interpolat

ion.

For information o n the controls, click the buttons.

NOTE. The following screen appears on MSO/DPO5000 Series instruments.

What do you want to do next?

Learn about using text with screen displays. (see page 164)

earn about changing the appearance of o bjects in the display.

(see page 167)

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 163
