Your instrument features cursors, automatic measurements, statistics, histograms, math, spectral analysis, and advanced
pass/fail tests to assist you in analyzing waveforms. This section contains concepts and procedures for analyzing waveforms.
Detailed information is available in the online help.
Taking Automatic Measurements

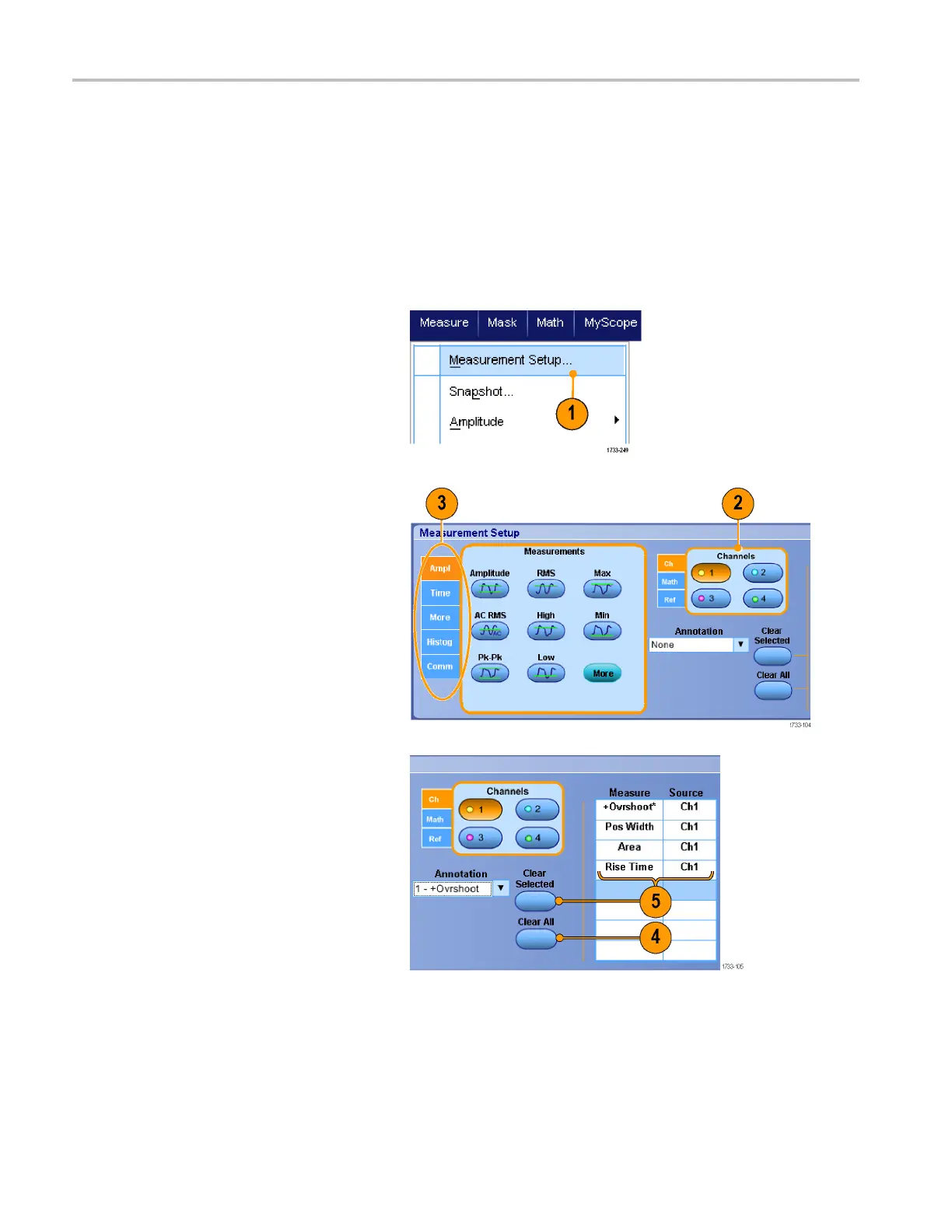

1. Select Measure > Measurem ent
Setup....
2. Select the c hannel, math or reference
waveform that you want to measure.
3. Using the tabs, select measurements in
five different categories.
4. To remove all measurements, click Clear
All.
5. To remove multiple measurements, click
and drag to select the measurements,
and then click Clear Selected.
80 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
