Display a Wavefo
rm

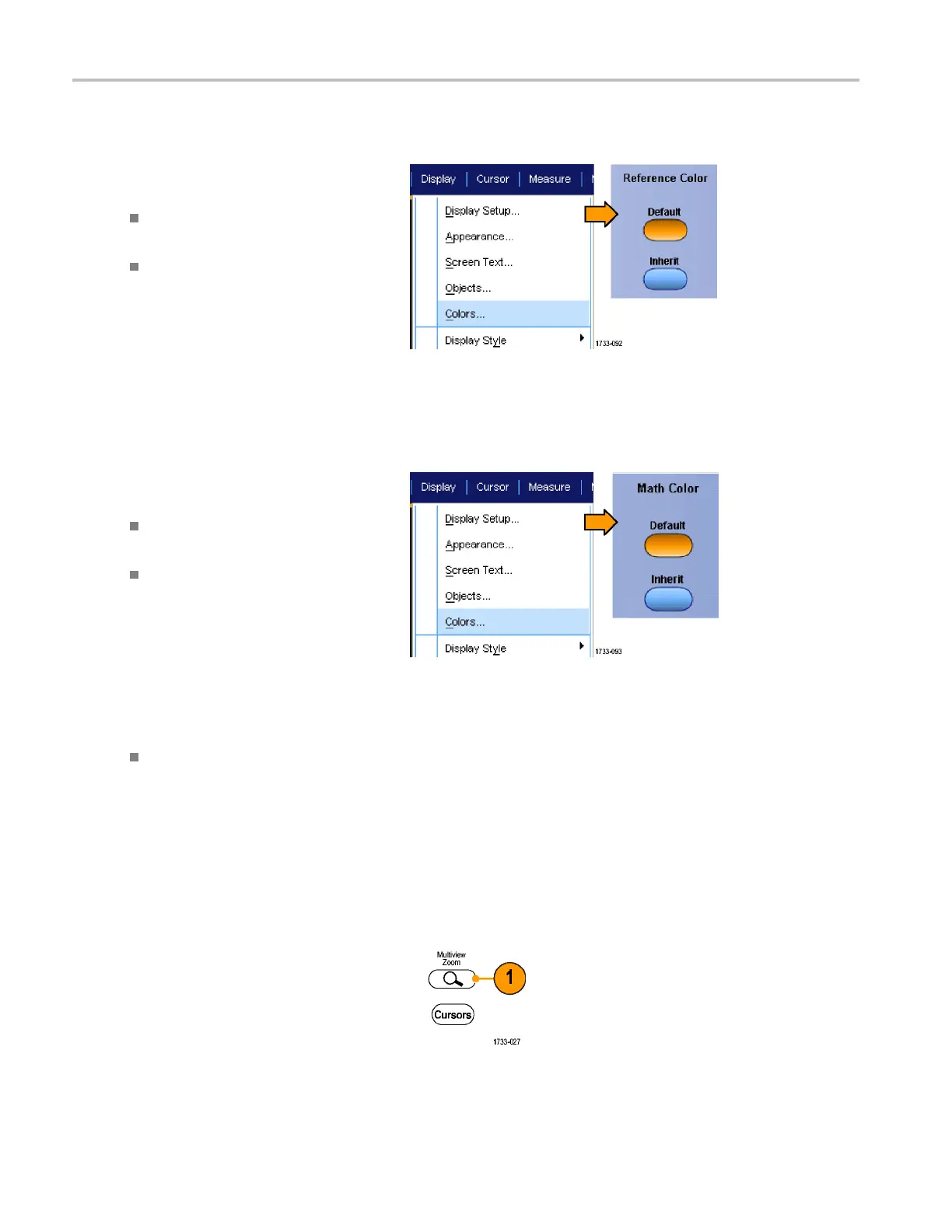

Setting the Reference Colors
Select Display > Colors..., and then select
one of the following:
Default uses the default system color for
reference waveforms.
Inherit uses the same color for the
reference waveform as the original
waveform.
Setting Math Colors
Select Display > Colors..., and then select
one of the following:
Default uses the default system color for
math waveforms.
Inherit uses the same color for the
math waveform as the lowest numbered
channel waveform the math function is
based on.
Quick Tips
The default c olor for m ath and reference waveforms are different for each waveform.
Using MultiView Zoom
Use the MultiView Zoom function to magnify a waveform vertica lly, horizontally, or in both dimensions. Zoomed waveforms
can also be aligned, locked, and automatically scrolled. Scale and Position affect only the display, not the actual waveform
data.
1. Push MultiView Zoom to split the screen
and add a zoom graticule.
66 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
