Acquisition

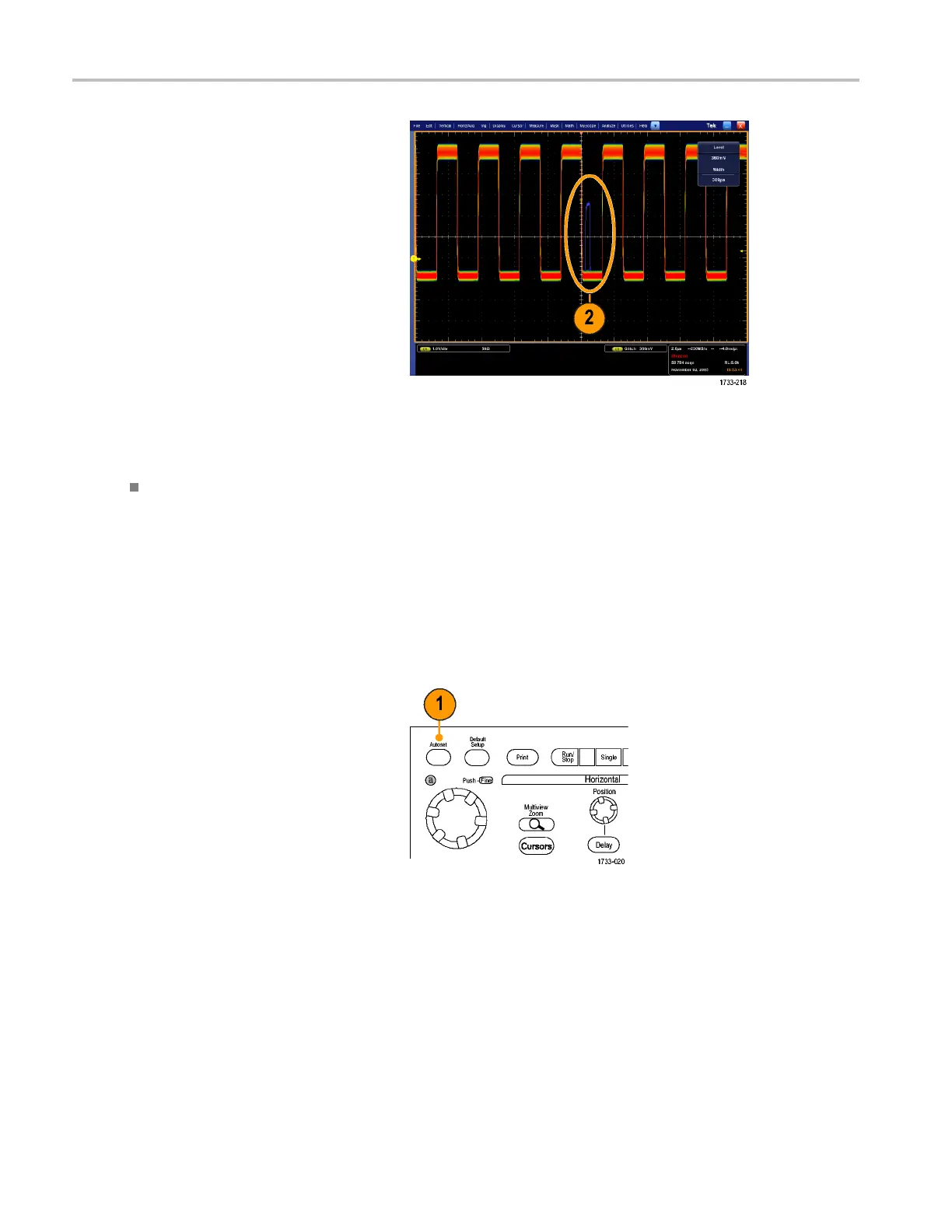

2. Find glitches,
transients, or other random
events.
When you have identified an anomaly,
set the trigge
r s ystem up to look for it.
(See page 123, Capturing Intermittent
Anomalies.)
Quick Tips
To optimize for capturing details or rare events, select Horiz/Acq > Horizontal/Acquisition Setup > Acquisition> Fast
Acq, and then select Optimize For Capturing Details or Capturing rare events .
Using DS
P Enhanced Bandwidth
If your instrument has the enhanced bandwidth feature, use the DSP (digital signal processing) enhanced bandwidth for
more accurate rise time measurements, to extend the bandwidth, and flatten the passband at the full sample rate. The
enhanced bandwidth provides a matched response across enabled channels so you can perform channel-to-channel
comparison and differential measurements.
1. Push AUTOSET to set the horizontal,
vertical, and trigger controls or set the
controls manually.
36 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
