Inspect Your Ins

trument

Inspect Your Instrument

Use the following procedures to verify the functionality of your instrument.

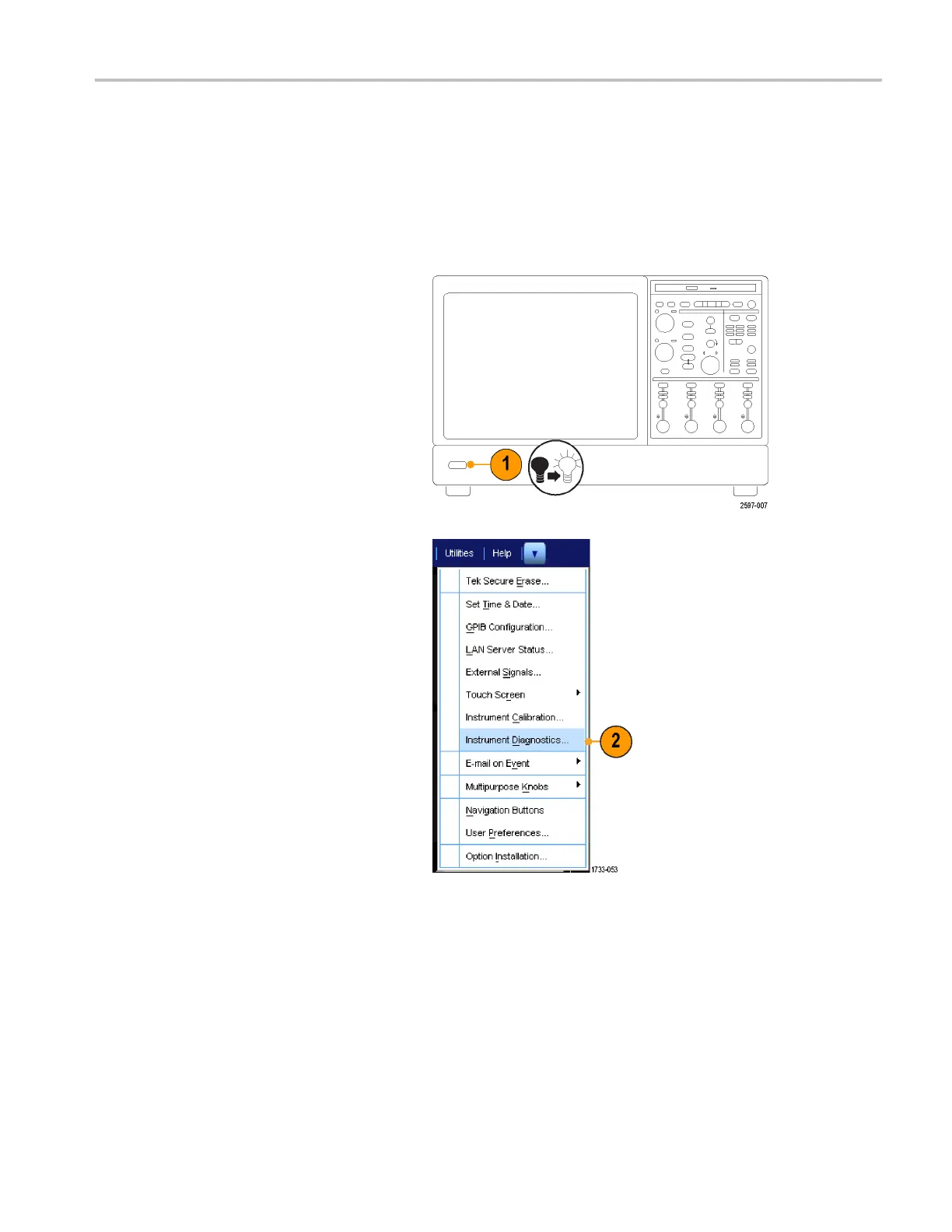

Verify Internal Diagnostics Pass

1. Power on the instrument.

2. Select Instrument Diagnostics... .

DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 21
