Application Exa
mples
Correlating Data Between a Tektronix Oscilloscope and Logic Analyzer
Almost every design is a high-speed design with fast clock edges and data rates. For these designs, you need to see the
analog characteristics of high-speed digital signals in relation to c omplex digital events in the circuit. iView i s your window
into the digital and analog world. The iView capability seamlessly integrates and automatically time-correlates data from
Tektronix logic analyzers and oscilloscopes, so you can transfer analog waveforms from the oscilloscope to the logic
analyzer display with the click of a mouse. View time-correlated analog and digital signals side-by-side and pinpoint the
source of elusive glitches and other problems in moments.
The iView External Oscilloscope Cable allows you to connect your logic analyzer to a Tektronix oscilloscope, enabling
communication between the two instruments. The Add External Oscilloscope wizard, which is available from the TLA
application S ystem menu, will guide you through the process of connecting the iView cable between your logic analyzer and
oscilloscope.
A setup window is also available to assist you in verifying, changing, and testing the oscilloscope settings. Before acquiring
and displaying a w aveform, you must establish a connection between your Tektronix Logic Analyzer and oscilloscope
using the Add External O scilloscope wizard.

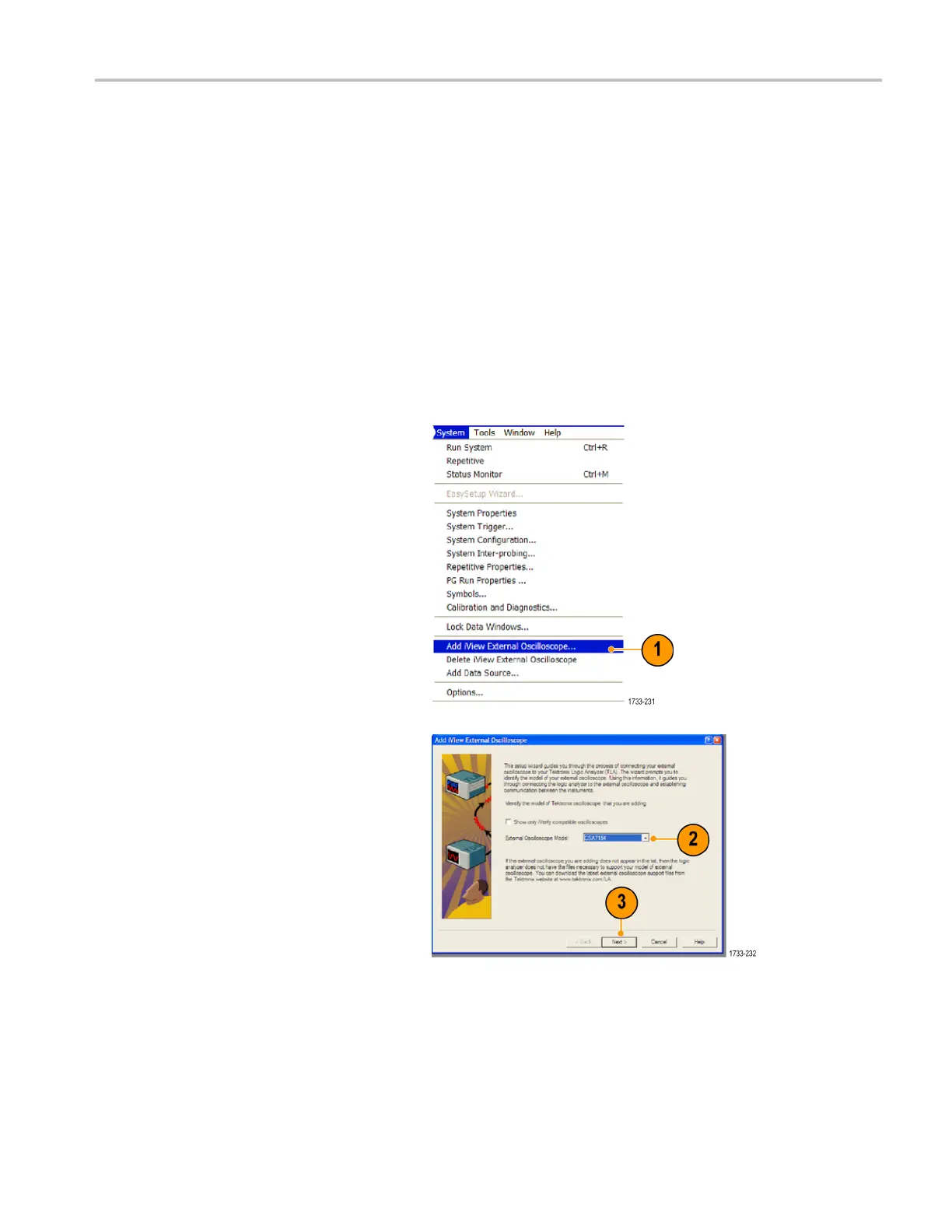

1. Select Add iView External
Oscilloscope... from the logic
analyzer System menu.
2. Select your model of oscilloscope.
3. Follow the on-screen instructions, a nd
then click Next.
4. See your Tektronix Logic Analyzer
documentation for more information
on correlating data between the logic
analyzer and the oscilloscope.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 133
