Application Exa
mples

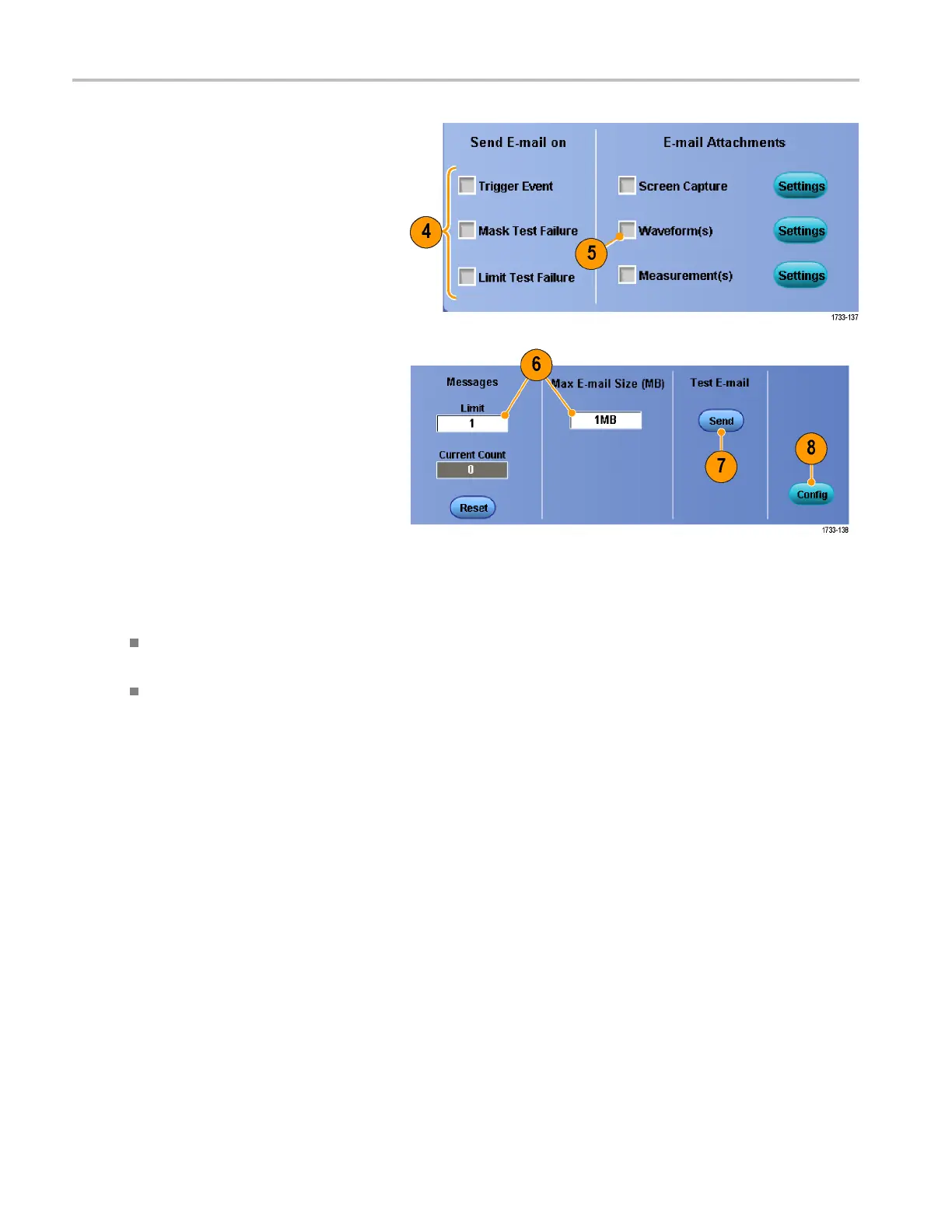

4. Select the event(s) for which you want
to send an e-mail.
5. To include attachments, select the type
of attachment
, and then click Settings to
specify the format.
6. Set the maxi
mum message limit and
e-mail size. W hen the maximum
message limit is reached, you m ust click
Reset to se
nd more e-mails on event.
7. To ensure t
hat you have set up the e-mail
addresses correctly, send a test-mail by
clicking Send.
8. If necessary, click Config to access
the e-m ai
lconfiguration dialog box and
adjust the configuration.
Quick Tips
To save attachments to your instrument hard drive, set the maximum message size to zero. The attachments will be
saved to the default location C :\TekScope\Screen Captures, Waveforms, or Data depending on the type of attachment.
Failure to enter a valid recipients’s e-mail address or a n SMTP Server Address displays error messages.
132 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
