Tektronix DPO7054

Pinpoint Trigge
rs

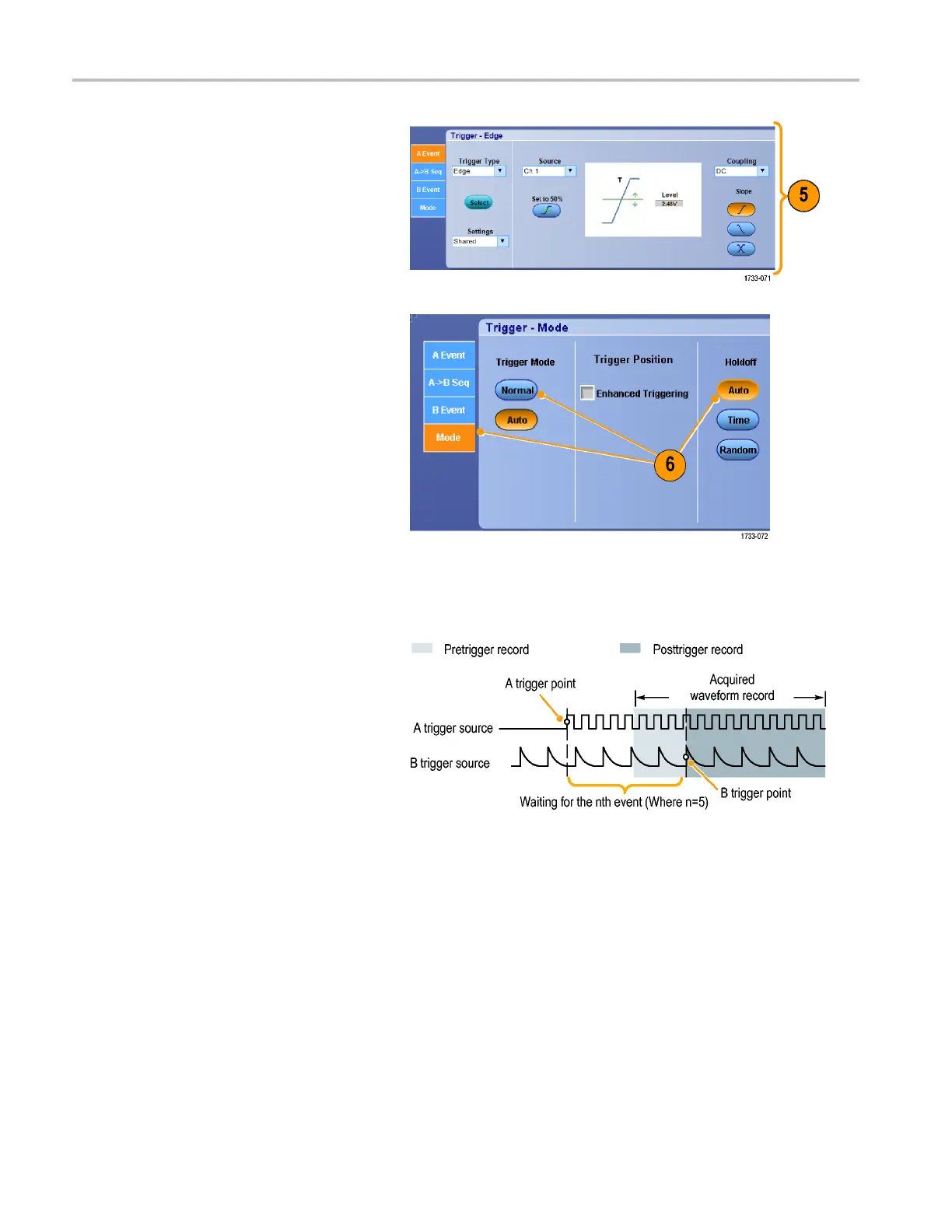

5. Set the B trigger characteristics in the B
Event (Delayed) tab.
6. Select Normal Trigger Mode and Auto
Holdoff in the Mode tab.
Trigger on B Event
The A trigger arms the instrument.
Posttrigger acquisition starts on the nth B
event.
54 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
