Display a Wavefo
rm

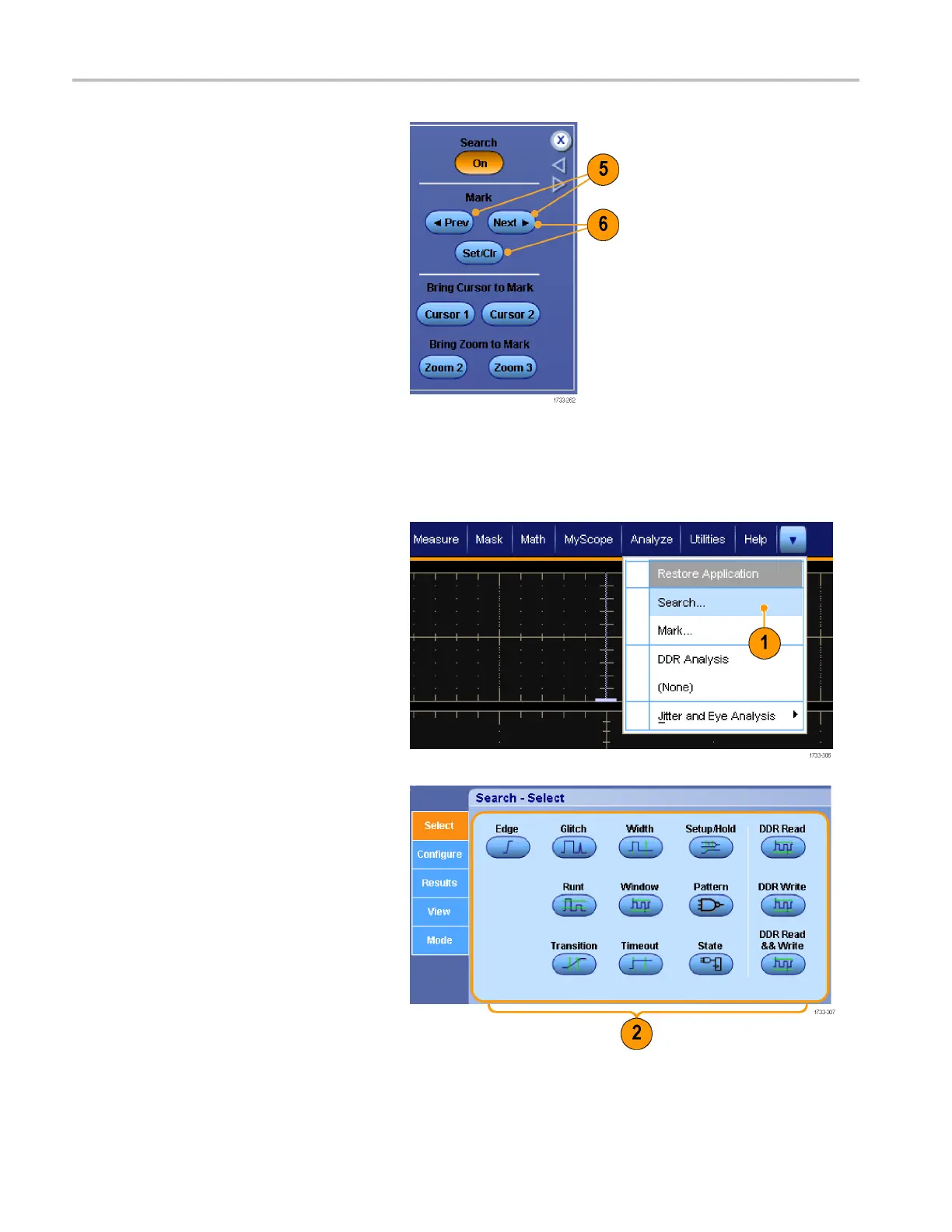

5. Investigate your waveform by moving
from search mark to search m ark. Use
the Next or Pre
v buttontojumpfrom
one marked location to another, without
adjusting any other controls.
6. Delete a mark. Push the Next or Prev
button to jump to the mark you want to
clear. To rem
ove the center-positioned
mark, push Set Clr. It works on both
manually and automatically created
marks.
To Automa
tically Set and Clear (delete) Search Marks:
1. Select Analyze > Search.
2. Select the desired search type from the
menu.
The search menu is similar to the trigger
menu.
Edge type is standard; other search
types are optional.
74 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
