Display a Wavefo
rm

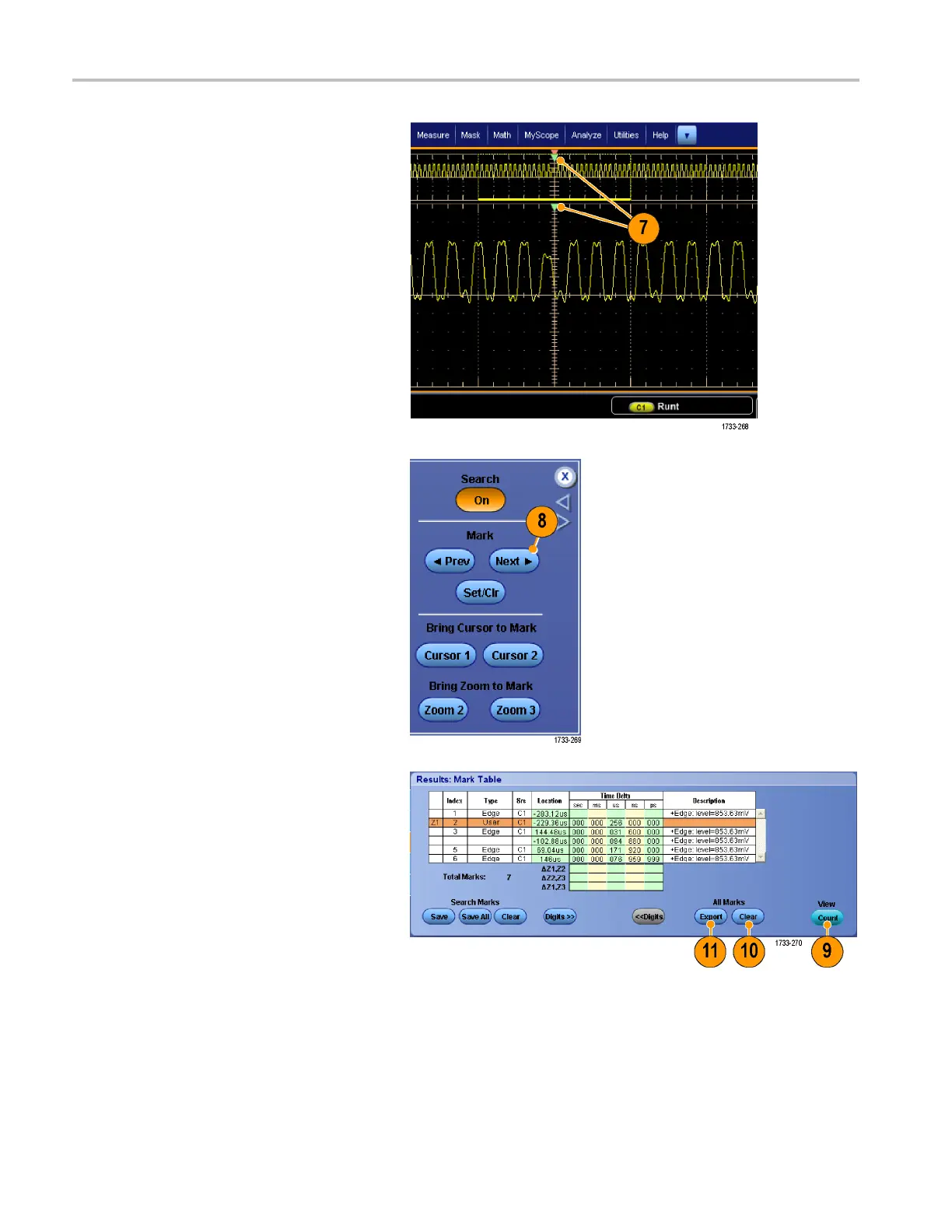

7. On the screen, triangles show the
location of automatic marks and white
triangles sho
w the custom (user-defined)
locations. These appear on both normal
and zoomed waveform views.
8. Yo u can quickly investigate your
waveform by moving from mark to mark
with the Next and Prev arrow buttons.
No other adjustments are needed.
9. To toggle between the display of search
event
s counts or Marks time, select the
Results tab and press View Count.
10. To clear all marks from the table, press
All Marks Clear.
11. To export the Mark Table to a file, press
All M
arks Export.
76 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
