Tektronix DSA70000/B Series User Manual

Analyzing Wavef
orms

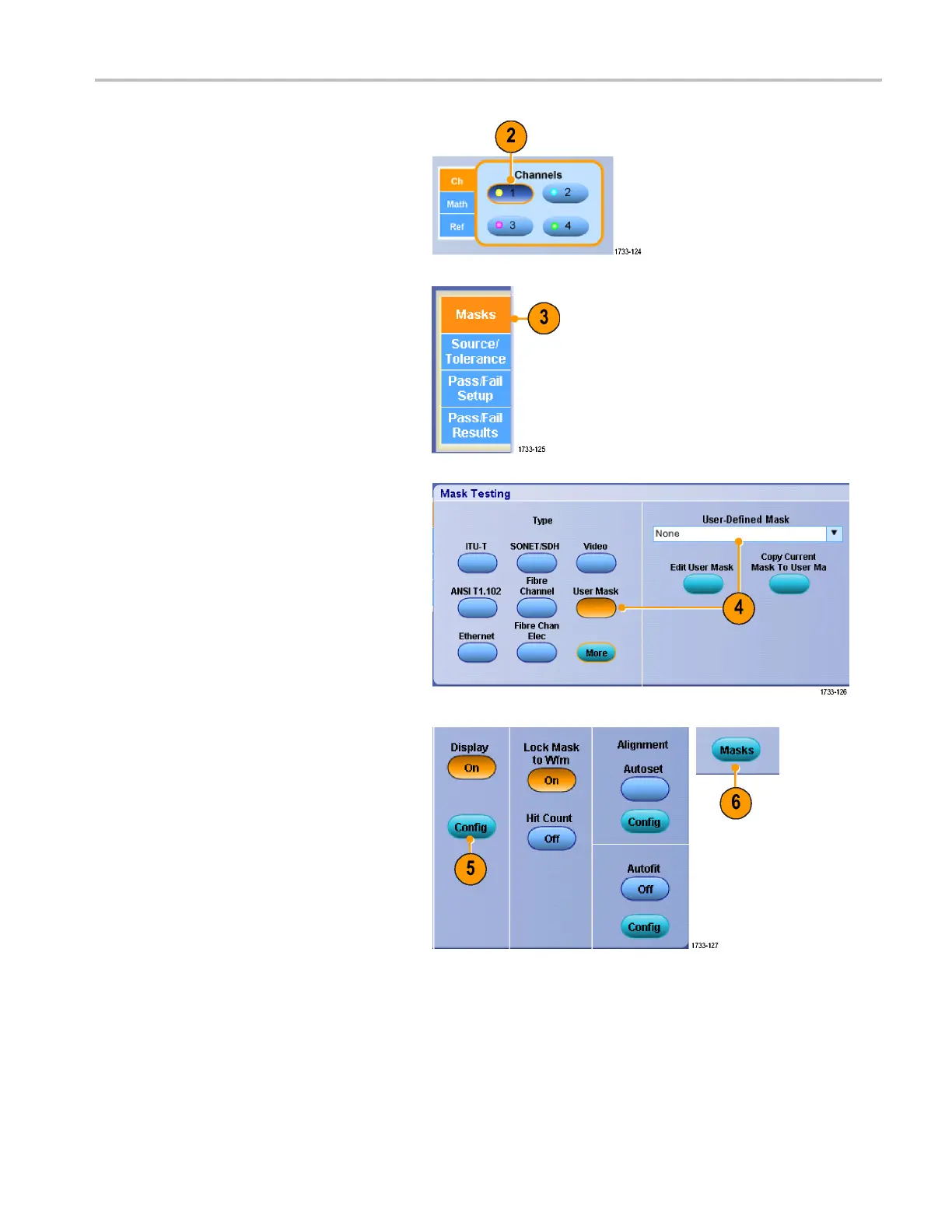

2. Select the signal source.
3. Click the Masks tab.
4. Select the Type and standard.
5. Click Config to access the Mask
Configuration control window, where you
can ad
just how masks and violations are
displayed and how Mask Autoset and
Autofitareconfigured.
6. Click Masks to return to the Mask Setup
cont
rol window.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 99
