Acquisition

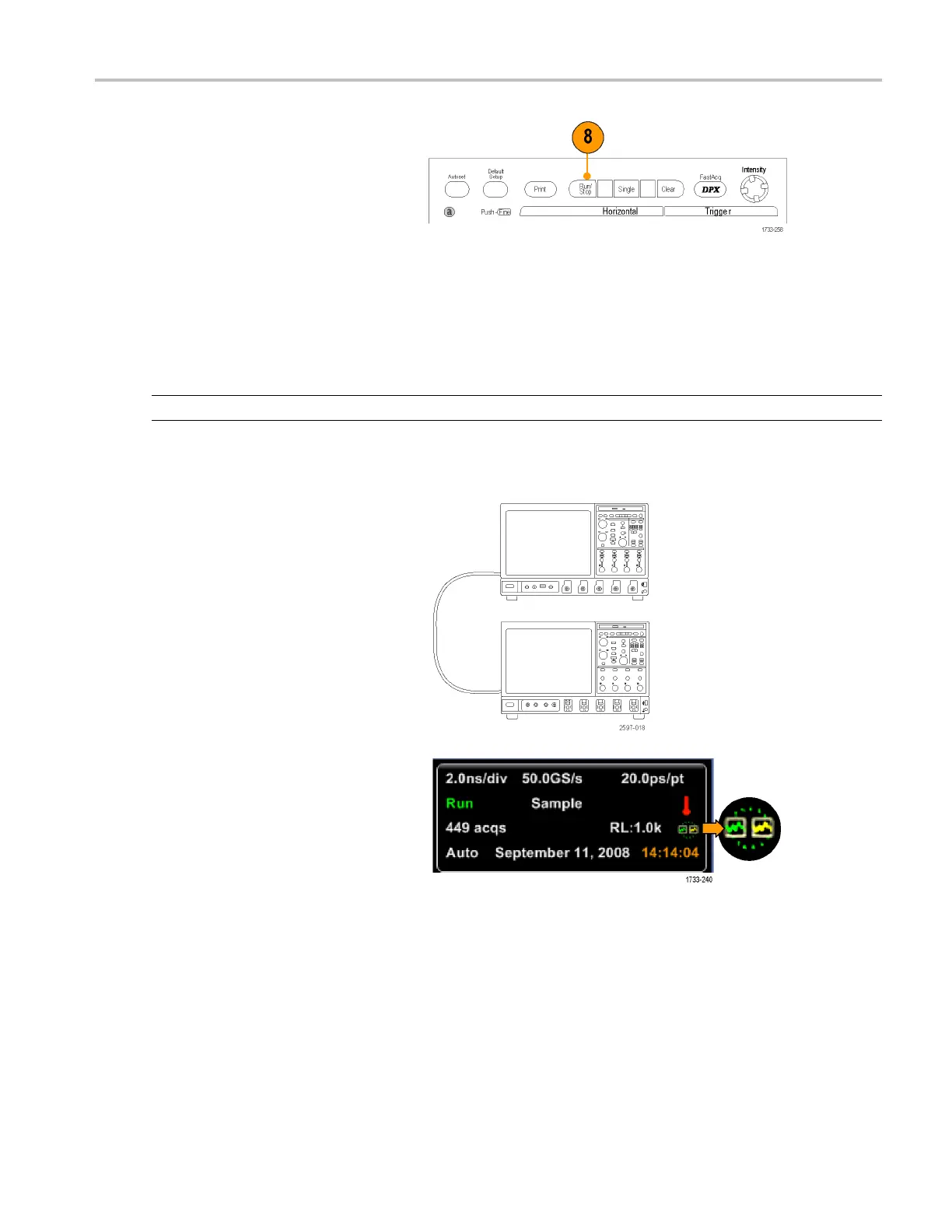

8. Push Run/Stop to restart acquisitions.
Using TekLink and MultiScope Trigger
To get more than 4 channels associated with a single trigger event, get more than 4 channels looking for a problem on a
channel, or
build a big AND gate with more than 4 inputs use TekLink.
NOTE. When using MultiScope Trigger, the B Triggers are not available.
Link2Ins
truments
1. Connect two instruments using a TekLink
cable.
2. TekLink connection status is displayed in
the horizontal readout.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 43
