Tektronix DSA70000/B Series User Manual

Getting Acquain
tedwithYourInstrument
Getting Acqua
inted with Your Instrument

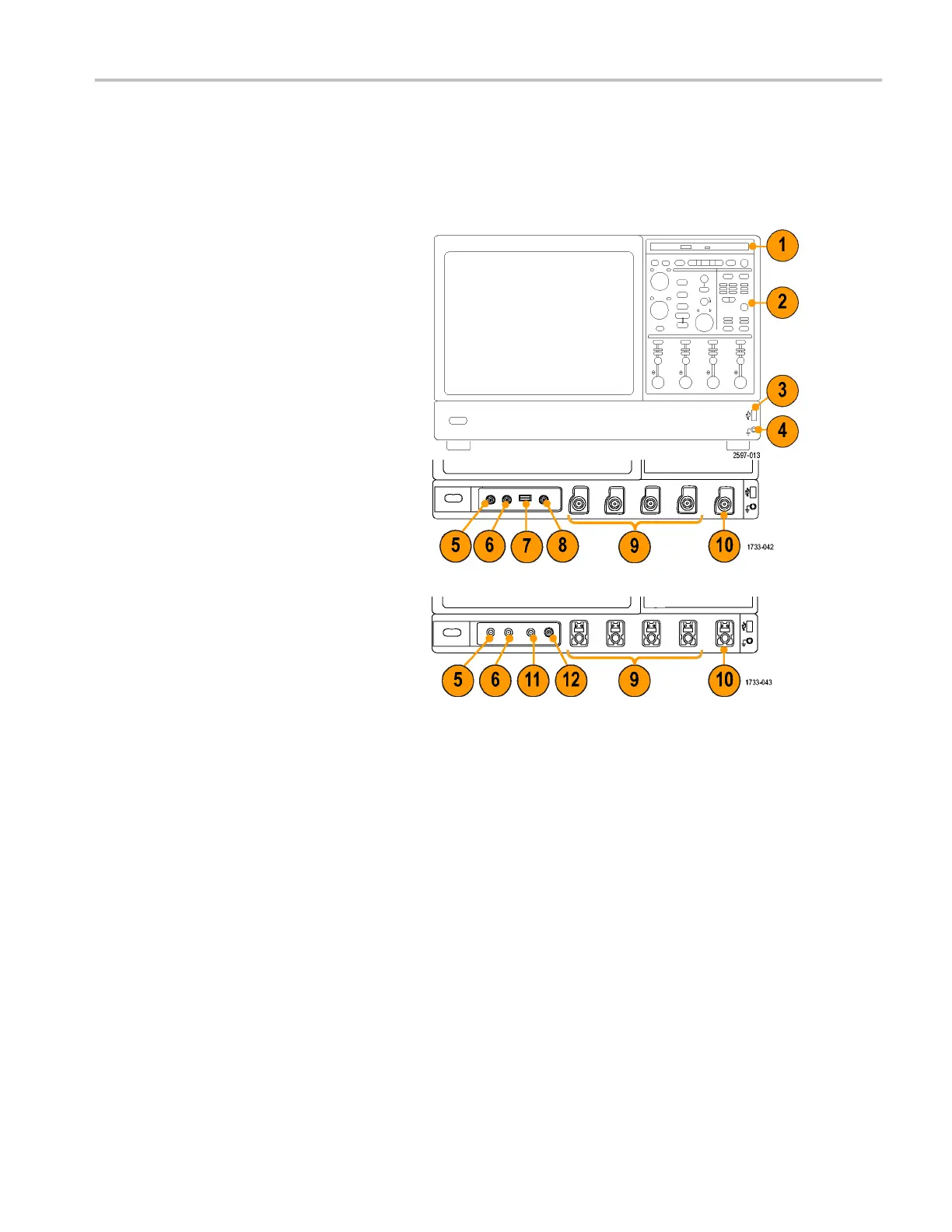

Front Panel
1. DVD/CD-RW drive
2. Front panel controls
3. USB port
4. Ground terminal
5. Recovered data output
6. Recovered clock output
7. Probe compensation output
8. Probe calibration output
9. Channel 1–4 input
10. Auxiliary Trigger input
11. Fast Edge output
12. DC Probe Cal output
<4 GHz models
≥4 GHz models
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 13
