Analyzing Wavef
orms
Using Limit Testing
Optional limit testing allows you to compare an a ctive signal with a template waveform. Build your template waveform from a
known good signal and use it to compare to an active signal to perform pass/fail testing.

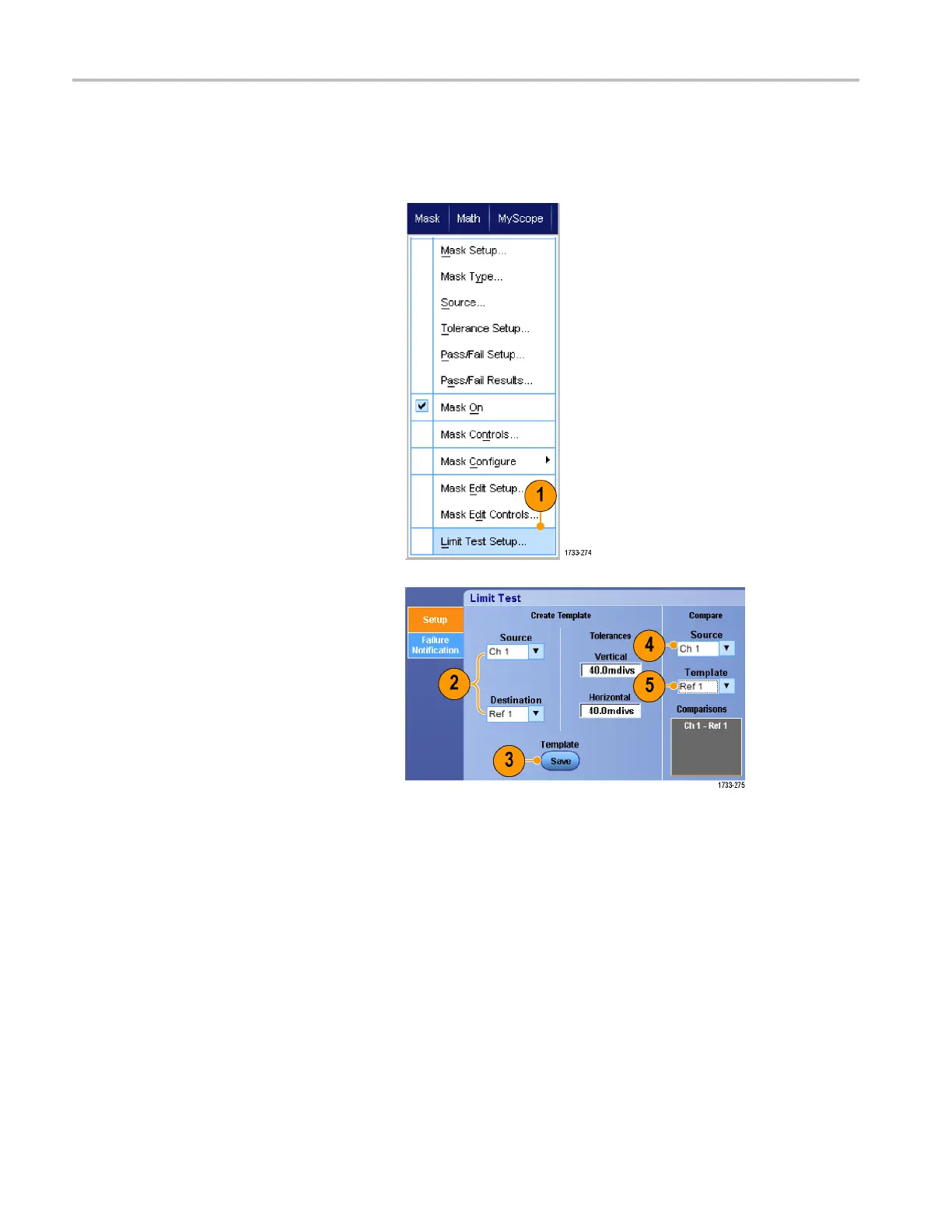

1. Select Masks > Limit Test Setup....
2. Create the template by selecting the
Source, Destination, and Tolerances.
Use the multipurpose knobs to adjust
the Tolerances. Tolerances specify
how much margin the signal is allowed
before failing the limit test.
3. Click Save. You can create multiple
templates and save them for later use.
4. Select the source wave form to compare
to the template.
5. Select the template to compare to the
Source waveform. (Usually, this is the
template that you created in step 3.)
102 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
