Tektronix DSA70000/B Series User Manual

Analyzing Wavef
orms

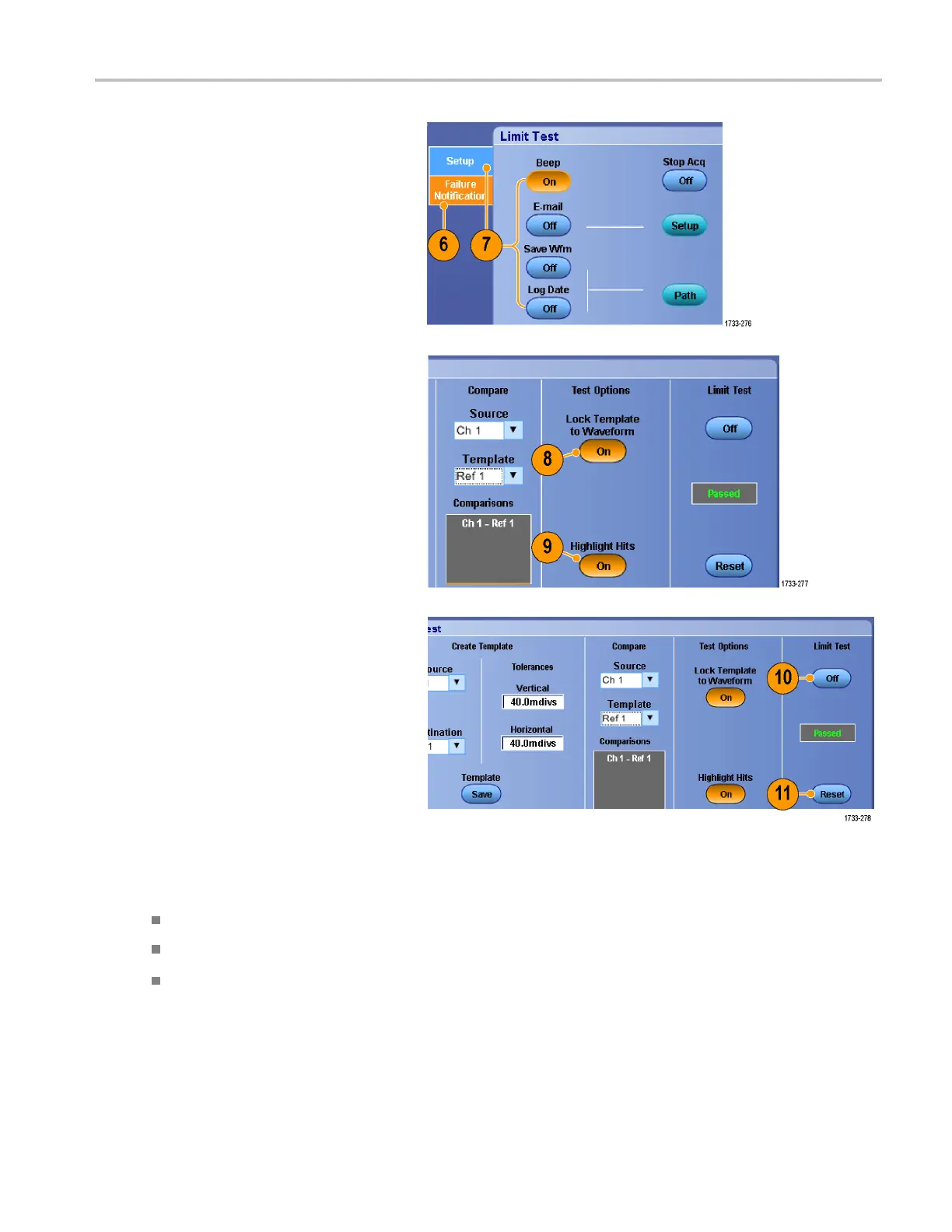

6. Click Failure No ti fication to set up the
Failure Notification.
7. Select the Failure Notification(s), and
then click Set
up to return to the setup
control window.
8. Click Lock Template to Waveform On to
lock the ve
rtical scale or position of the
template to that of the source wa veform .
9. Click Highlight Hits On to show points
that fall outside the template in a
different
color.
10. Toggle Limit Test to On to start the test.
11. Click Reset to clear all violations and
reset the test.
Quick Tips
You can use active or saved waveforms to create a limit test template.
Using Average acquisition mode will create a s moother template waveform.
Using Envelope acquisition mode will create a template that allows for occasional overshoots.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 103
