Tektronix DSA70000/B Series User Manual

Pinpoint Trigge
rs
Choosing a Trigger Type
Your instrume
nt allows you to modify basic trigger parameters from the front panel or set up more advanced triggers in
the Trigger Setup control window.
NOTE. Some trigger type selections are not available on some instruments.

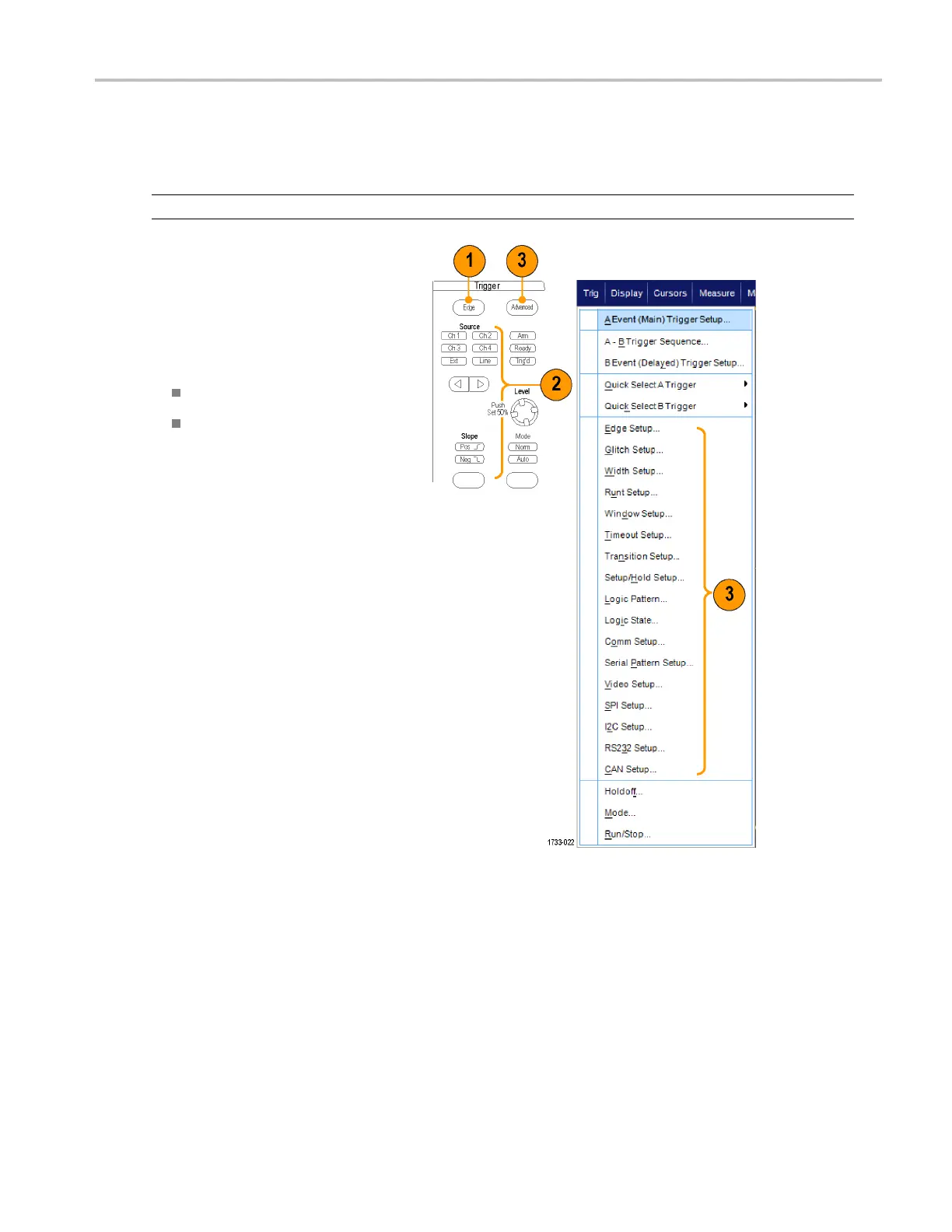

1. Push EDGE.
2. Set the source, slope and mode. To set
the couplin
g use the Trig > Edge Setup
menu.
3. To select one of the other trigger types,
do one of the following:
Push ADVANCED
Select a trigger type directly from the
Trig menu
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 49
