Application Exa
mples

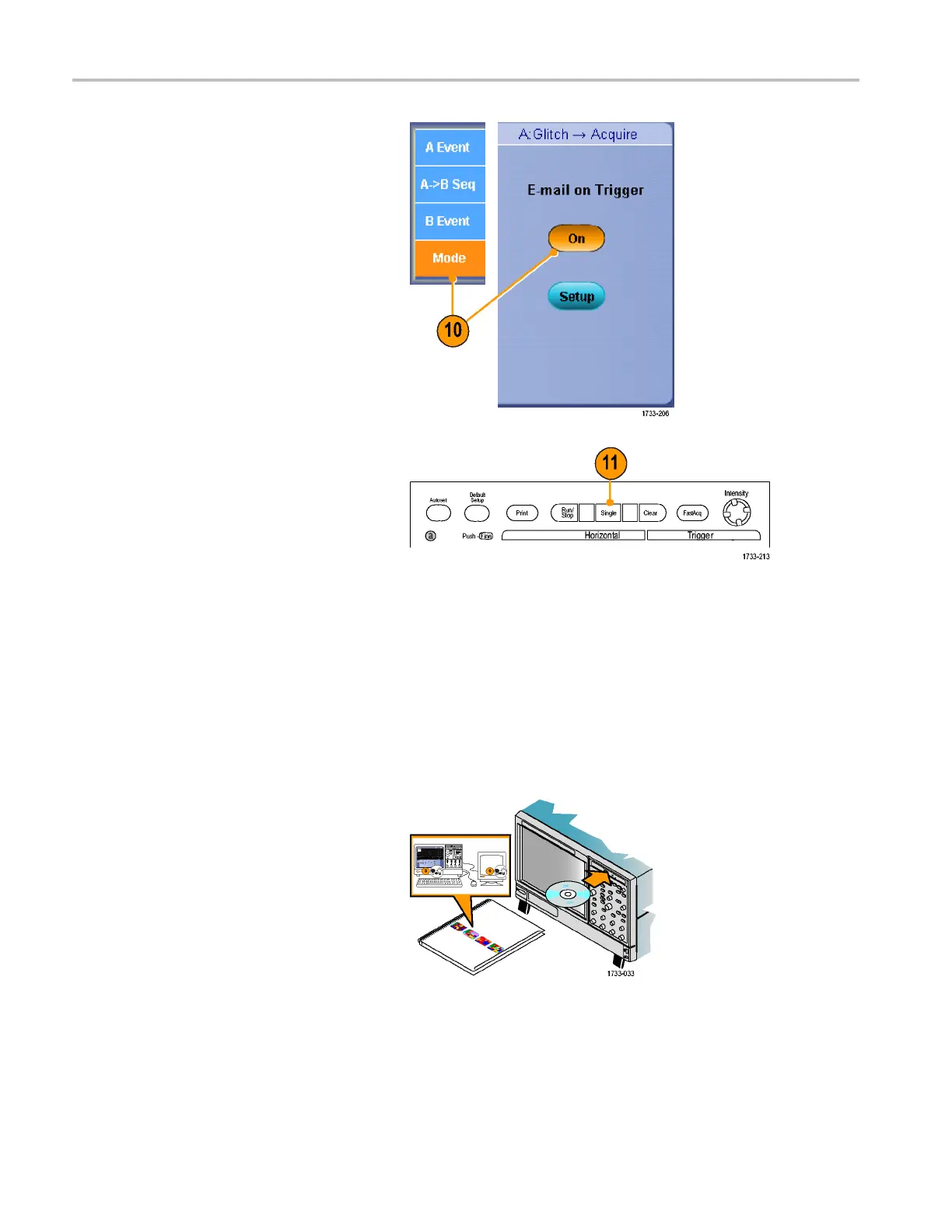

10. Click E-mail on Trigger On. (See
page 131, Setting Up E-mail on Event.)
11. Push Singl
e to trigger on a s ingle glitch.
Using the Extended Desktop and OpenChoice Architecture for Efficient
Documentation
Engineers often need to document their lab work for future reference. Instead of saving screen shots and waveform data
to a CD or USB memory device, and then generating a report later, try using the OpenChoice architecture to document
your work in real time.
To make your instrument the center of your design and documentation p rocess, use the following procedure.
1. Load Microsoft Word or Excel on your
instrument.
2. Connect a second monitor. (See page 9,
Adding a Second Monitor.)
126 DPO7000 Series and DPO /DS A70000/B Series Quick Start User Manual
