Display a Wavefo
rm

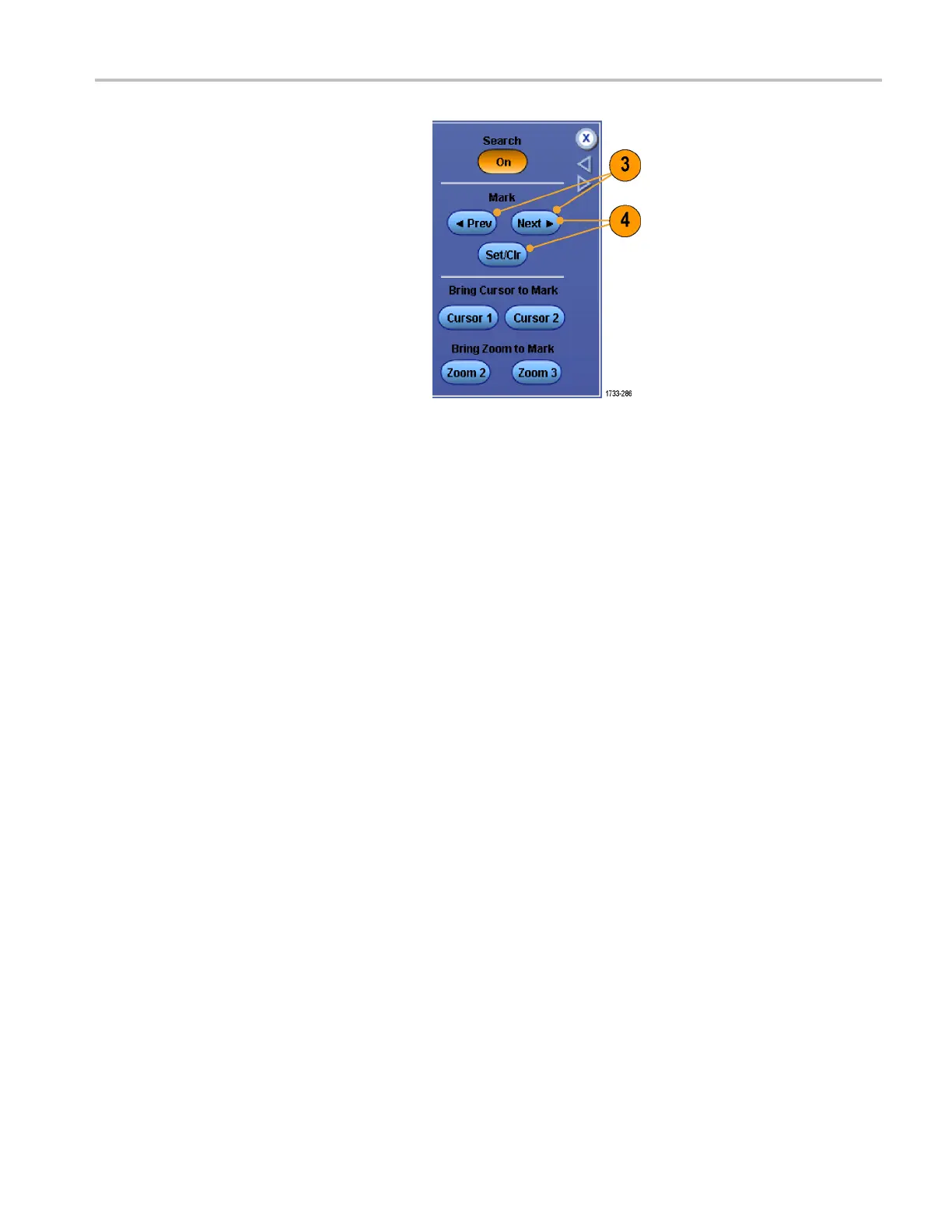

3. Move (the zoom box) to the area on
the waveform where you want to set
(orclear)ase
arch mark by turning a
multipurpose knob.
Push the Next or Prev button to jump to
an existing m
ark.
4. Push Set Clr
.
If no search mark is at the screen center,
the instrument will add one.
When a mark i
s created, the horizontal
zoom factor is saved. When you use
Next or Prev to move between marks,
the zoom fa
ctor is restored.
DPO7000 Series and DPO/DSA70000/B Series Quick Start User Manual 73
