Tektronix DSA8200 Series User Manual

Commands Listed in Alphabetical Order
the specified Ma
g timebase record (waveform). The Mag timebase is specified by
x,whichcanbe1or2.

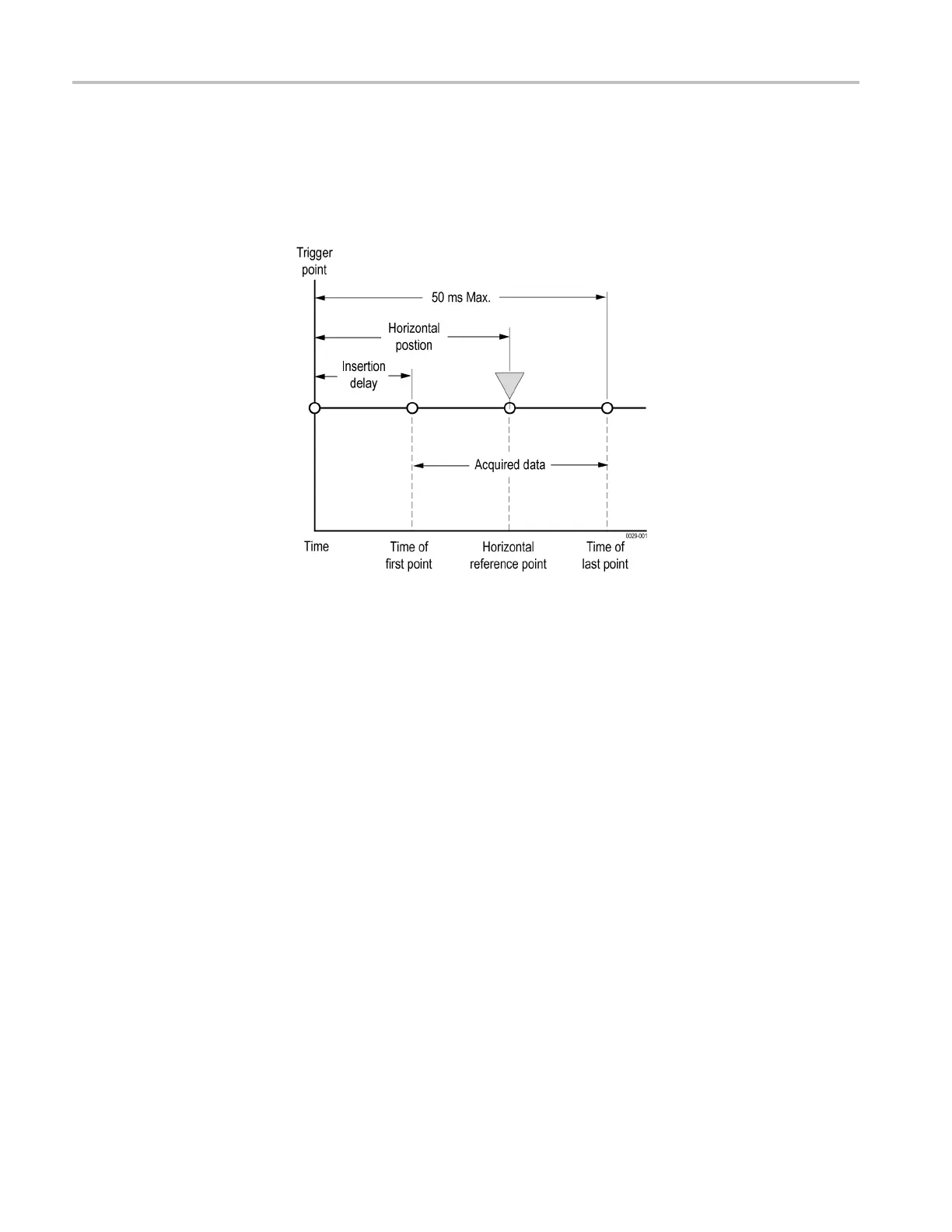

Refer to the il
lustration b elow for a diagram of the relationships of time of first
point, time of last point, horizontal position, and horizontal reference point.
Group
Horizontal
Syntax
HORizontal:MAGnify<x>:TOF Point?
Related Commands
HORizontal:MAGnify<x>:POSition, HORizontal:MAGnify<x>:REFPoint,
HORizontal:MAGnify<x>:SCAle
Examples
HORIZONTAL:MAG1:TOFPOINT? might return HORI ZONTAL:MAG1:TOFP OINT
50.0000000000E–9
, indicating that the time interval between the trigger point
and the first point in the Mag1 timebase rec ord is 50 ns.
HORizontal:MAGnify<x>:TOLPoint? (Query Only)
This query only command returns time of last point for the specified Mag
timebase, which is the time interval betwe
en the trigger point and the last point in
the specified Mag timebase record (waveform).
Refer to the illustration below for a diag
ram of the relationships of time of last
point, time of first point, horizontal position, and horizontal reference point.
2-170 DSA/CSA/TDS8X00/B Series Programmer Manual
