Tektronix Keithley DMM7510 User Manual

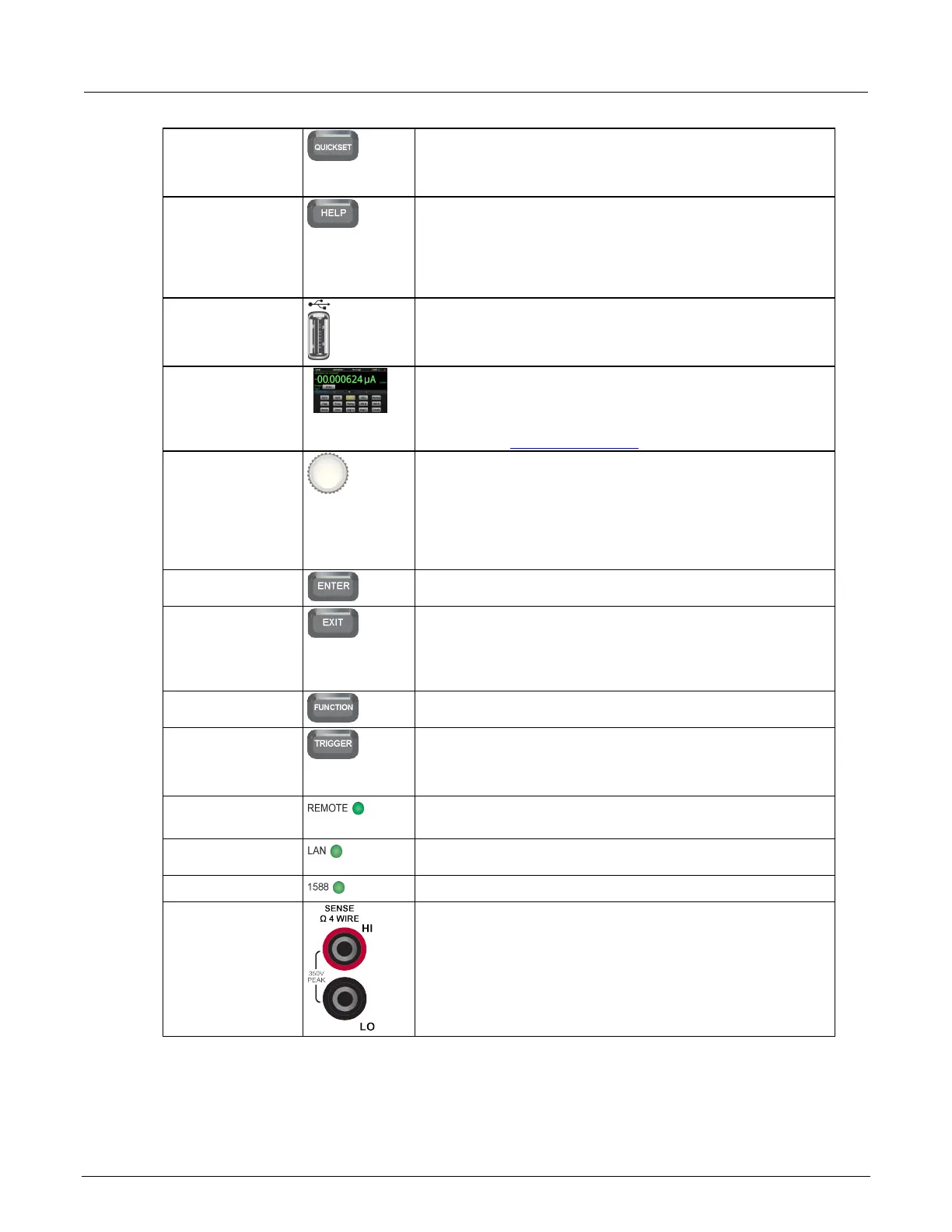

Section
2: Front-panel overview Model DMM7510 7½ Digit Multimeter
User's Manual
2-2 DMM7510-900-01 Rev. C / September 2019
QUICKSET key
Opens a menu of preconfigured setups, including Voltage
Waveform, Interval Measure, Current Waveform, and External
Scan. Also allows you to choose measure functions and adjust
performance for better resolution or speed.
HELP key
Opens help for the area or item that is selected on the display. If
there is no selection when you press the HELP key, it displays
overview information for the screen you are viewing. To display
help, use the navigation control to select the button, then press
the HELP key. You can also press and hold the on-screen button
while pressing the HELP key.
USB port
Saves reading buffer data and screen snapshots to a USB flash
drive. You can also store and retrieve scripts to and from a USB
flash drive. The flash drive must be formatted as a FAT or FAT32
drive.
Touchscreen
The DMM7510 has a high-resolution, five-inch color touchscreen
display. The touchscreen accesses swipe screens and menu
options. You can access additional interactive screens by
pressing the front-panel MENU, QUICKSET, and FUNCTION
keys. Refer to Touchscreen display (on page 2-4) for details.
Navigation control
Moves the cursor and makes screen selections.
Turning the navigation control: Moves the cursor to highlight a
list value or menu item so that you can select it. Turning the
control when the cursor is in a value entry field increases or
decreases the value in the field.
Pressing the navigation control: Selects the highlighted choice
or allows you to edit the selected field.
ENTER key
Selects the highlighted choice or allows you to edit the selected
field.
EXIT key
Returns to the previous screen or closes a dialog box. For
example, press the EXIT key when the main menu is displayed to
return to the home screen. When you are viewing a subscreen
(for example, the Event Log screen), press the EXIT key to return
to the main menu screen.
FUNCTION key
Displays instrument functions. To select a function, touch the
function name on the screen.
TRIGGER key
Accesses trigger-related settings and operations. The action of
the TRIGGER key depends on the instrument state. For details,
see "Switching between measurement methods" in the Model
DMM7510 Reference Manual.
REMOTE LED
indicator
Illuminates when the instrument is controlled through a
remote interface.
LAN LED indicator
Illuminates when the instrument is connected to a local area
network (LAN).
1588 LED indicator
1588 functionality is not supported at this time.
SENSE terminals
Use the SENSE HI and SENSE LO terminals and the INPUT
terminals with the 4-wire resistance, 3-wire and 4-wire RTD
temperature, and DC voltage ratio functions.
