Measure menu

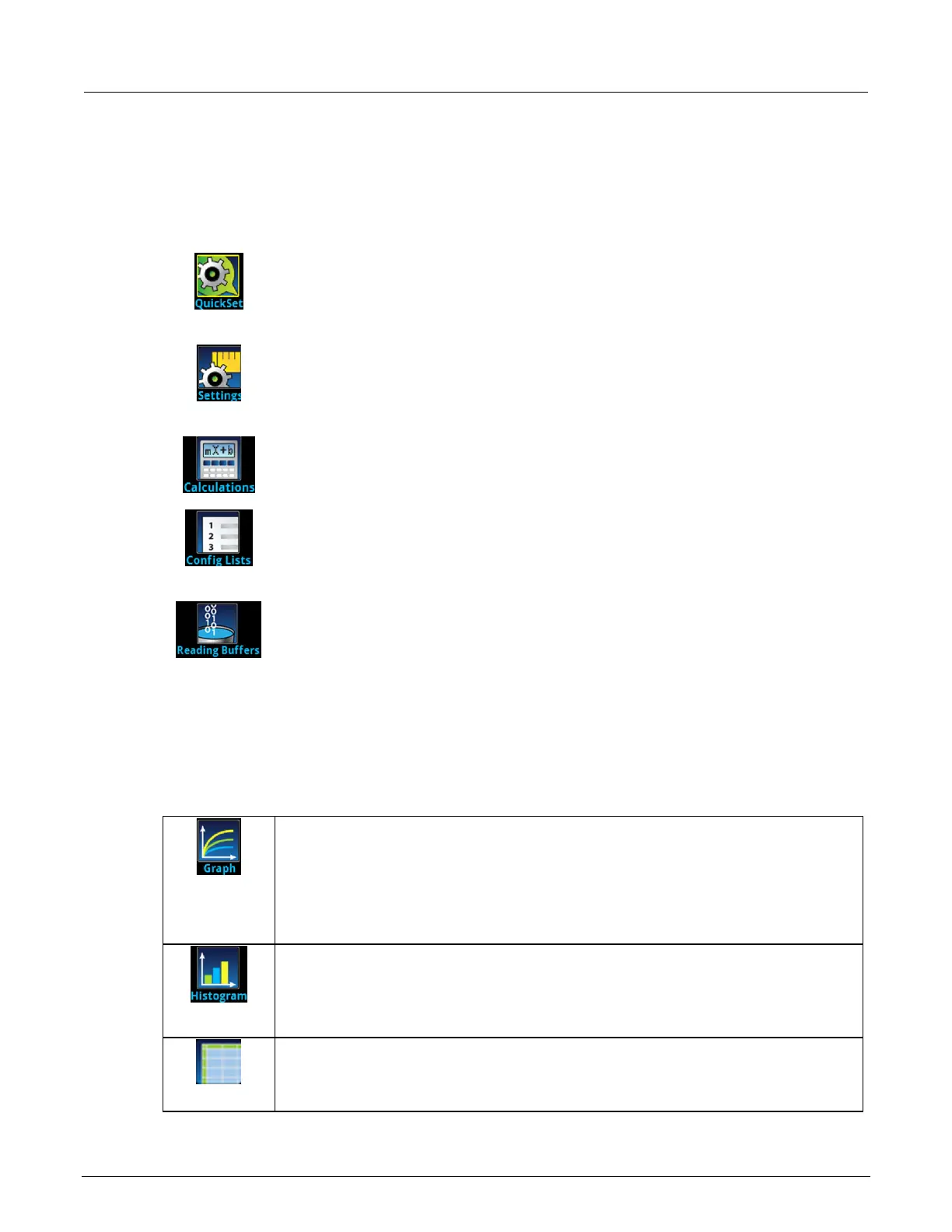

The Measure menus allow you to select, configure, and perform measure operations from the
front panel.
The QuickSet menu allows you to change the function and adjust performance.
You can also access the QuickSet menu by pressing the QUICKSET key on the
front panel.
The Measure Settings menu contains settings for the presently selected measure
function, which is identified by the function indicator in the upper right corner of the
menu. The available settings depend on the front-panel FUNCTION key selection.
The Calculations menu contains settings that specify the way measurement
information is processed and returned.
The Config Lists menu allows you to select an existing measure configuration list,
create a new list, load configuration settings to and from the instrument, and view
the settings of an index in a configuration list.
The Reading Buffers menu allows you to view the list of existing reading buffers
and select one to be the active buffer. You can also create, save, delete, resize,
and clear buffers from this screen.
Views menu
The Views menus allow you to select, configure, and view data that was gathered from measure
operations.
The Graph menu opens a screen that displays a graph of the measurements as
traces in selected reading buffers. It also contains tabs that you can use to
customize the graph display.
You can also select the trigger mode and initiate the trigger model from this screen.
The Histogram menu allows you to graph the distribution of measurement data in
the selected reading buffer. It also contains tabs that you can use to customize the
histogram.
This menu allows you to view data in the selected reading buffer.
