7½ Digit Multimeter User's Manual Section 2: Front-
DMM7510-900-01 Rev. C / September 2019 2-11

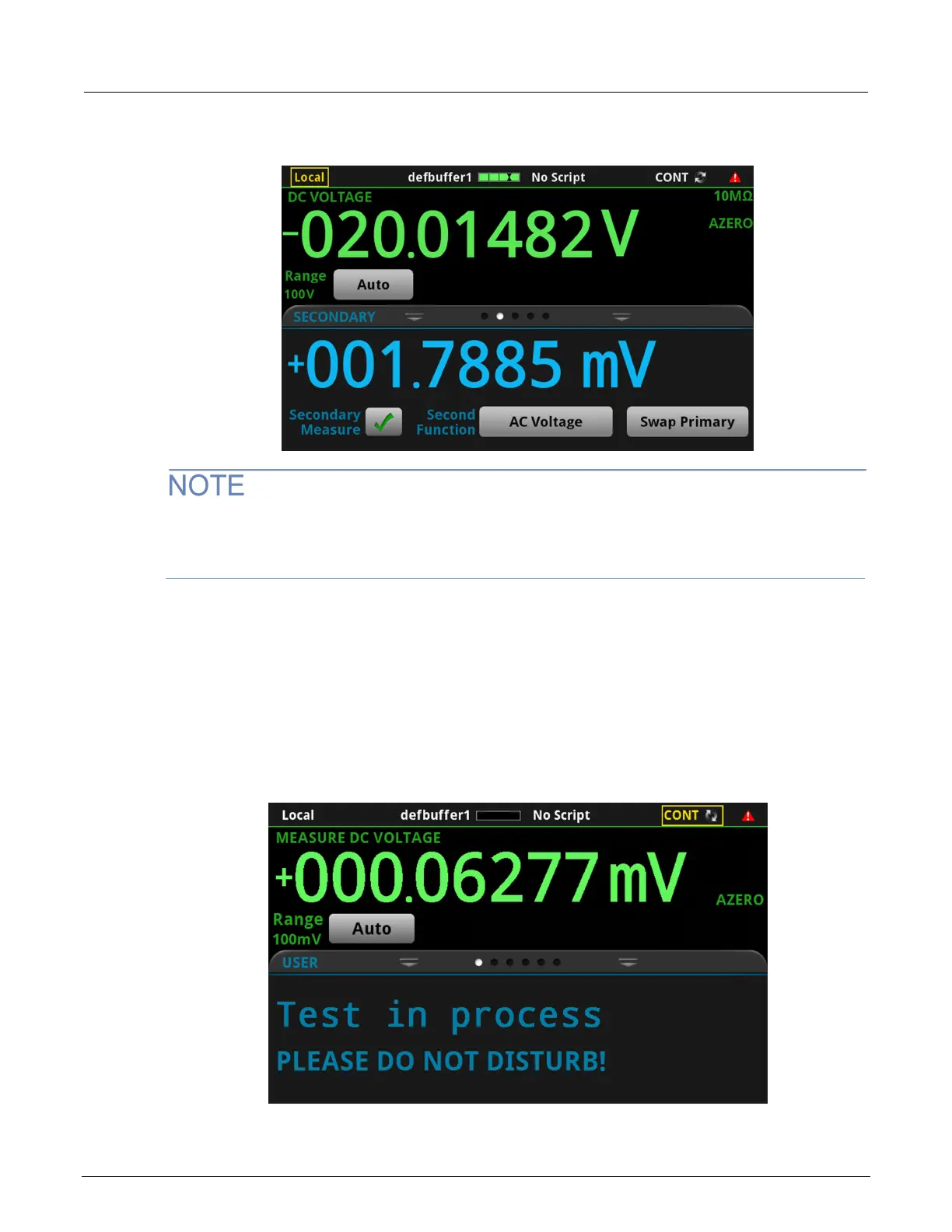

Figure 9: SECONDARY swipe screen
Depending on the selected functions, a relay may click when the instrument switches between the
measurement types. Leaving secondary measurements on for extended periods may shorten the life
of the relays.
USER swipe screen
You can program custom text and display it on the USER swipe screen. For example, you can
program the DMM7510 to show that a test is in process. This swipe screen is only displayed if custom
text has been defined. Refer to “Customizing a message for the USER swipe screen” in the Model
DMM7510 Reference Manual.
Figure 10: USER swipe screen
