2: Front-panel overview Model DMM7510 7½ Digit Multimeter
2-6 DMM7510-900-01 Rev. C / September 2019
Enter information
Some of the menu options open a keypad or keyboard that you can use to enter information. For
example, if you are setting the name of a buffer from the front panel, you see the keyboard shown in
the following figure.

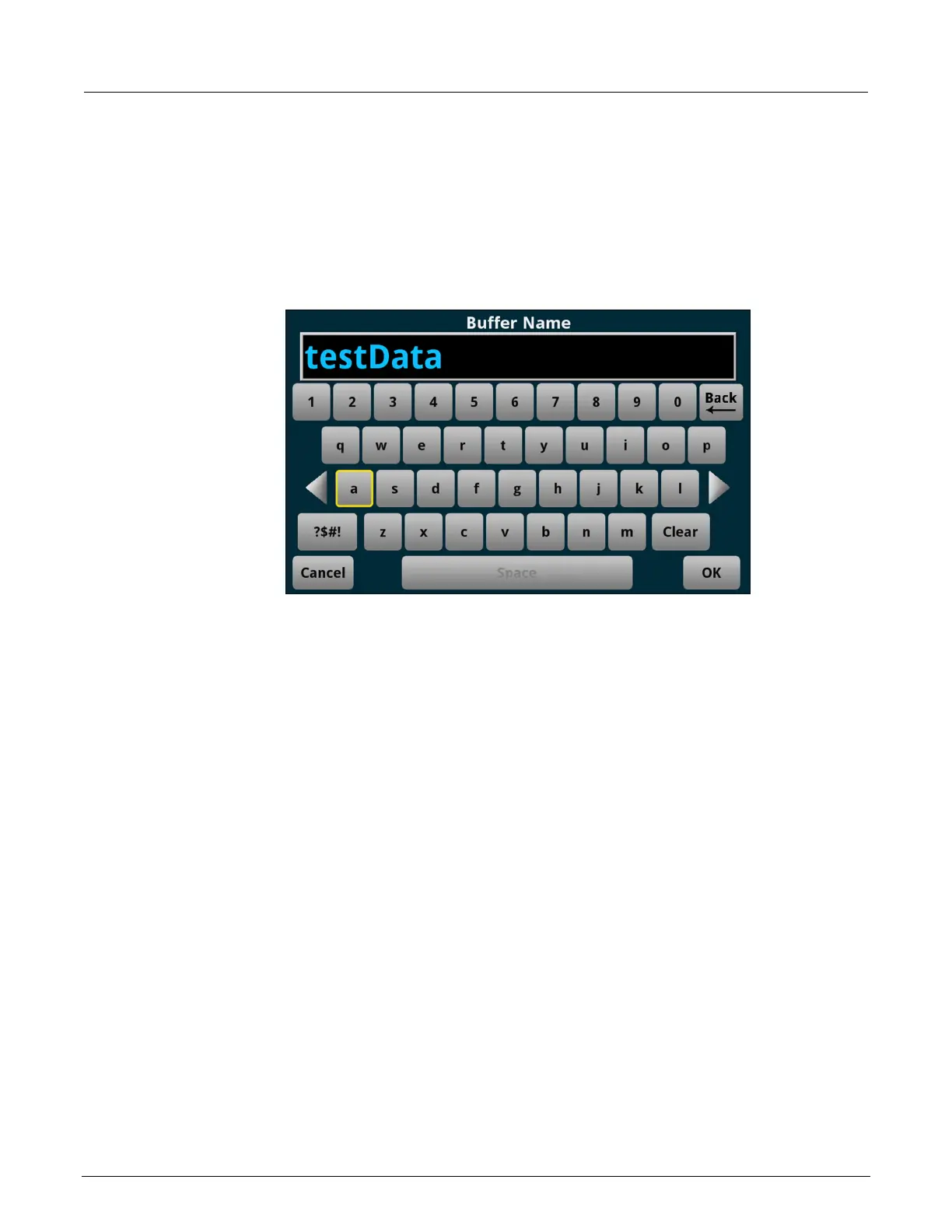

Figure 3: DMM7510 front-panel keyboard
You can enter information by touching the screen to select characters and options from the keypad or
keyboard. You can move the cursor in the entry box by touching the screen. The cursor is moved to
the spot in the entry box where you touched the screen.
Some numeric keypads include Min, Max, and Inf options. Min sets the lowest value for the setting.
Max sets the highest value. Inf sets the value to infinite. On number keypads, you can also use the
navigation control to move the cursor to a specific number.
On keyboards and keypads, you can use the navigation control to select characters.
To set values using the number keypad with the navigation control:
1. Turn the control to underline the character that you want to change.
2. Press the control to select the character for edit.
3. Turn the control to scroll through the options.
4. Press the control to set the character.
5. Press the ENTER key to save the change.
