5: Measuring DC voltage with high accuracy Model DMM7510 7½ Digit Multimeter User
5-2 DMM7510-900-01 Rev. C / September 2019
Make sure power to the instrument is off and make the following connections:
• Connect the test leads to the INPUT HI and LO terminals.
• Connect the INPUT HI connection to one of the DUT leads.
• Connect the INPUT LO connection to the other DUT lead.
The physical connections for the front and rear panels are shown in the following figures.

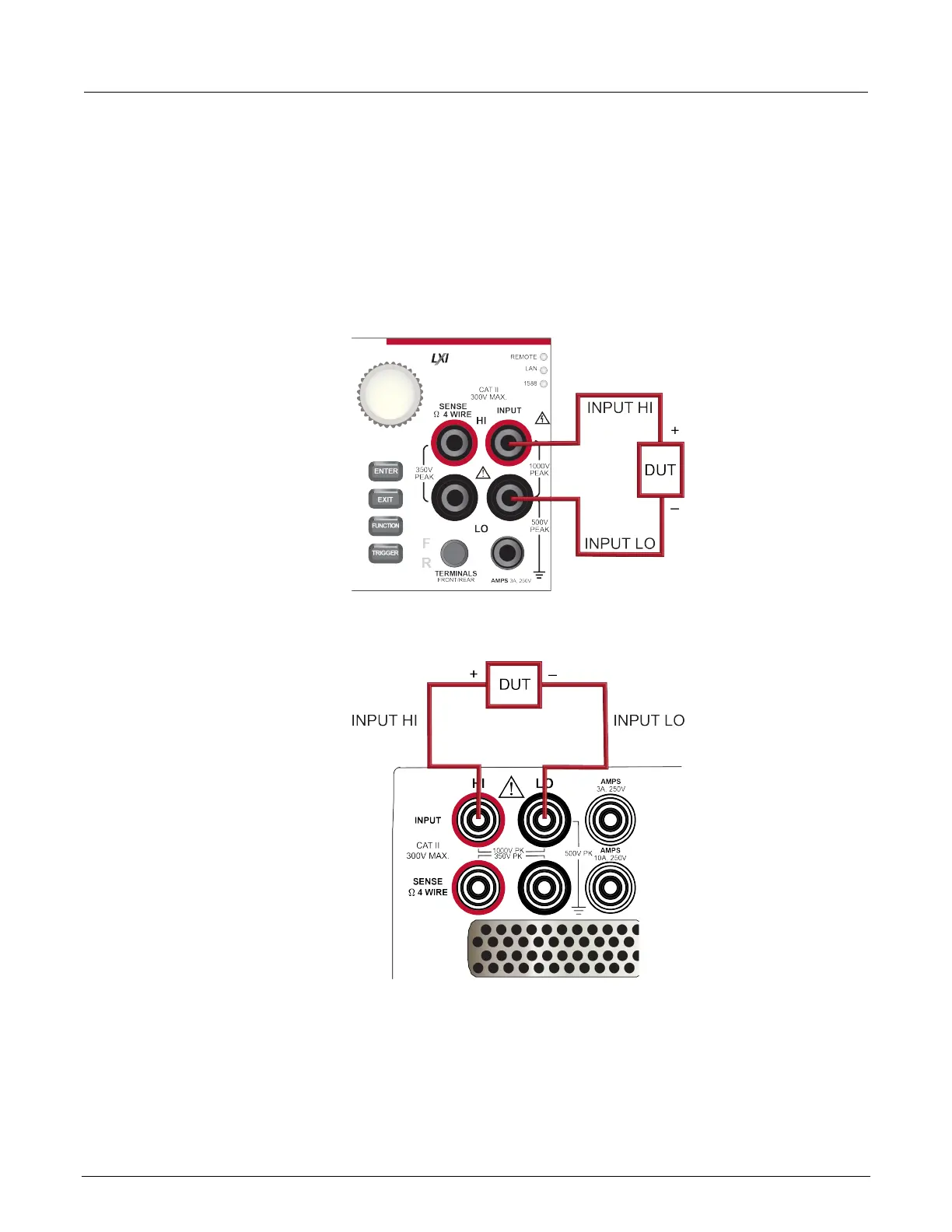

Figure 25: Front-panel connections for high-accuracy DC voltage measurements
Figure 26: Rear-panel connections for high-accuracy DC voltage measurements
