Section 3: Instrument description Series 2600B System SourceMeter® instrument User's Manual
3-42 2600BS-900-01 Rev. A / August 2021

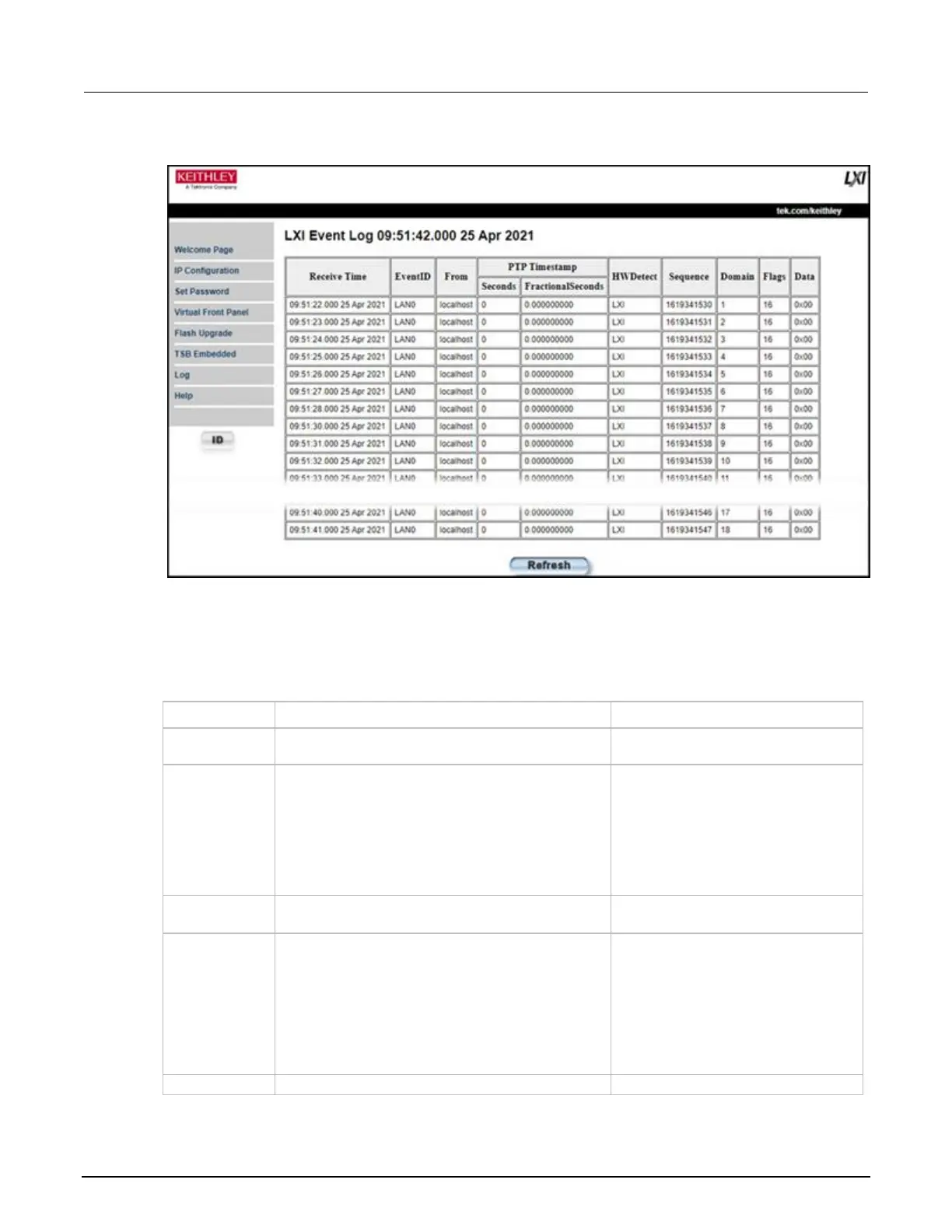

Figure 20: LXI Event Log
The timestamp, event identifier, IP address, and the domain name identify the incoming and outgoing
LXI trigger packets. The following table provides detailed descriptions for the columns in the
event log.
Event log descriptions
Column title
Description
Example
Receive Time
Displays the date and time that the LAN trigger
occurred in UTC, 24-hour time
11:46:44.000 11 Mar 2020
Event ID
Identifies the lan.trigger[N] that generates an
event
LAN0 = lan.trigger[1]
LAN1 = lan.trigger[2]
LAN2 = lan.trigger[3]
LAN3 = lan.trigger[4]
LAN4 = lan.trigger[5]
LAN5 = lan.trigger[6]
LAN6 = lan.trigger[7]
LAN7 = lan.trigger[8]
From
Displays the IP address for the device that
generates the LAN trigger
localhost
192.168.5.20
Timestamp
A timestamp that identifies the time the event
occurred; the timestamp uses the following:
PTP timestamp
Seconds
Fractional seconds; the 2600B does not
support the IEEE Std 1588 standard; the
values in this field are always 0 (zero)
HWDetect
Identifies a valid LXI trigger packet
LXI
