Performance Ver
ification
b. Record the noise threshold value (in dBm/Hz) in the test record and compare it to the instrument speci fication.
3. In the test record, enter the result at this frequency (9 kHz).
4. Check from 50 kHz to 5 MHz (all models):
a. Set the stop frequency to 5 M Hz.
b. Set the start frequency to 50 kHz.

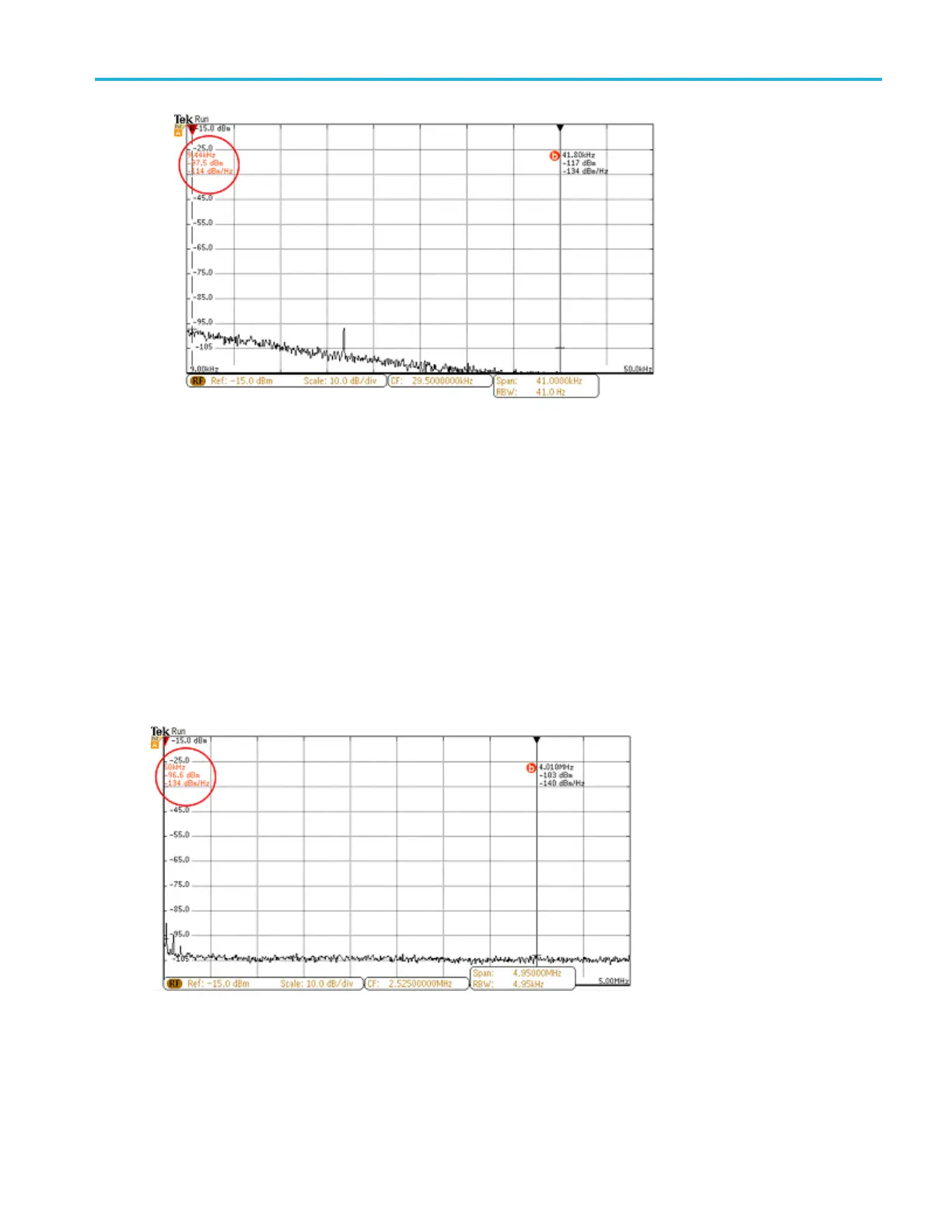

c. Set Manual Marker (a) at the frequency of the highest noise, ignoring any spurs.
d. Set the center frequency as follows: Push the RToCenterside-bezel button.
e. Set the span to 10 MHz as follows: Push the side-bezel Span button. Set the Span to 10 MHz.
f. Record the highest noise value (in dB m/Hz) in the test record and compare it to the instrument specification.
5. In the test record, enter the result at this frequency (50 kHz).
MDO3000 Series S pecifications and Performance Verification 93
