Tektronix MDO3024 Installation And Safety Instructions

Power-On and Power-Off Procedure
Setting up the oscilloscope
for connectivity

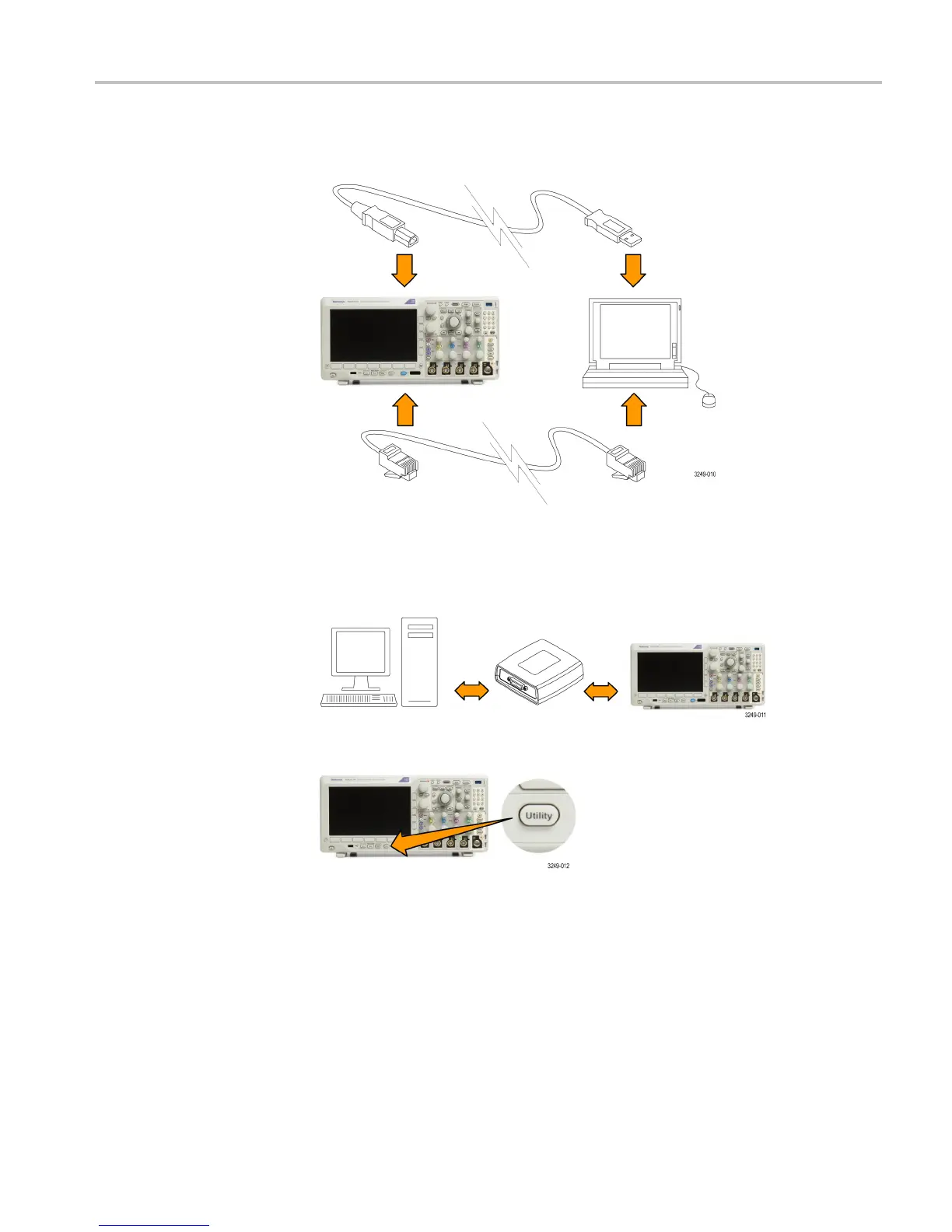

1. Connect the osc
illoscope to your computer with the appropriate USB or
Ethernet cable.
To communicate between the oscilloscope and a GPIB system, connect the
oscilloscope to the TEK-USB-488 GPIB-to-USB Adapter with a USB cable.
Then connect the adapter to your GPIB system with a GPIB cable. Cycle the
power on the oscilloscope.
2. Push Utility.
3. Push Utility Page.
4. Tu
rn multipurpose knob a and select I/O.
5. Follow the menu items as required. For more detailed information, refer to
t
he MDO3000 User Manual.
MDO3000 Installation and Safety Instructions 29

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
