Analyze Wavefor
morTraceData
2. Push More as ma
ny times as needed to
select Statistics from the resulting pop-up
menu.
Add Mea-
surement
Remove
Measure-
ment
Indicators
Waveform
His-
tograms
More
Bring
Cursors
On Screen
3. Push the side-bezel menu options. These
include whether to turn statistics on or off
and how many
samples to use for mean and
standard deviation calculations.
Measure-
ment Sta-
tistics
On|Off
Mean &
Std Dev
Samples
(a) |
32
Reset
Statistic
s
Snapsho
t

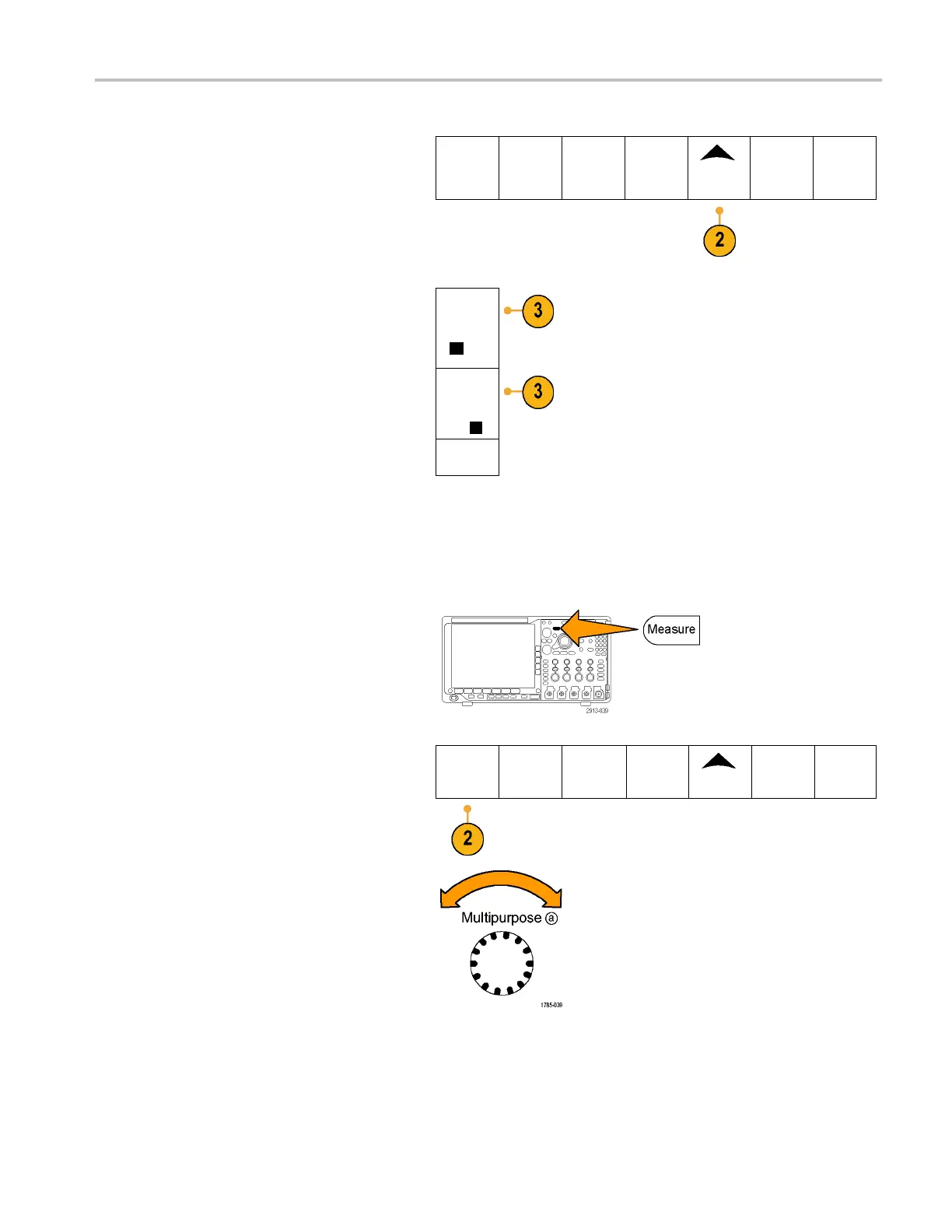

To see all the single-sourced measurements at one moment in time:
1. Push Mea
sure.
2. Push Add Measurement.
Add Mea-
surement
Remove
Measure-
ment
Indicators
Waveform
His-
tograms
More
Bring
Cursors
On Screen
3. Turn multipurpose knob a to select the
desired Source channel.
MDO4000 Series Oscilloscopes User Manual 127
