Analyze Wavefor
morTraceData

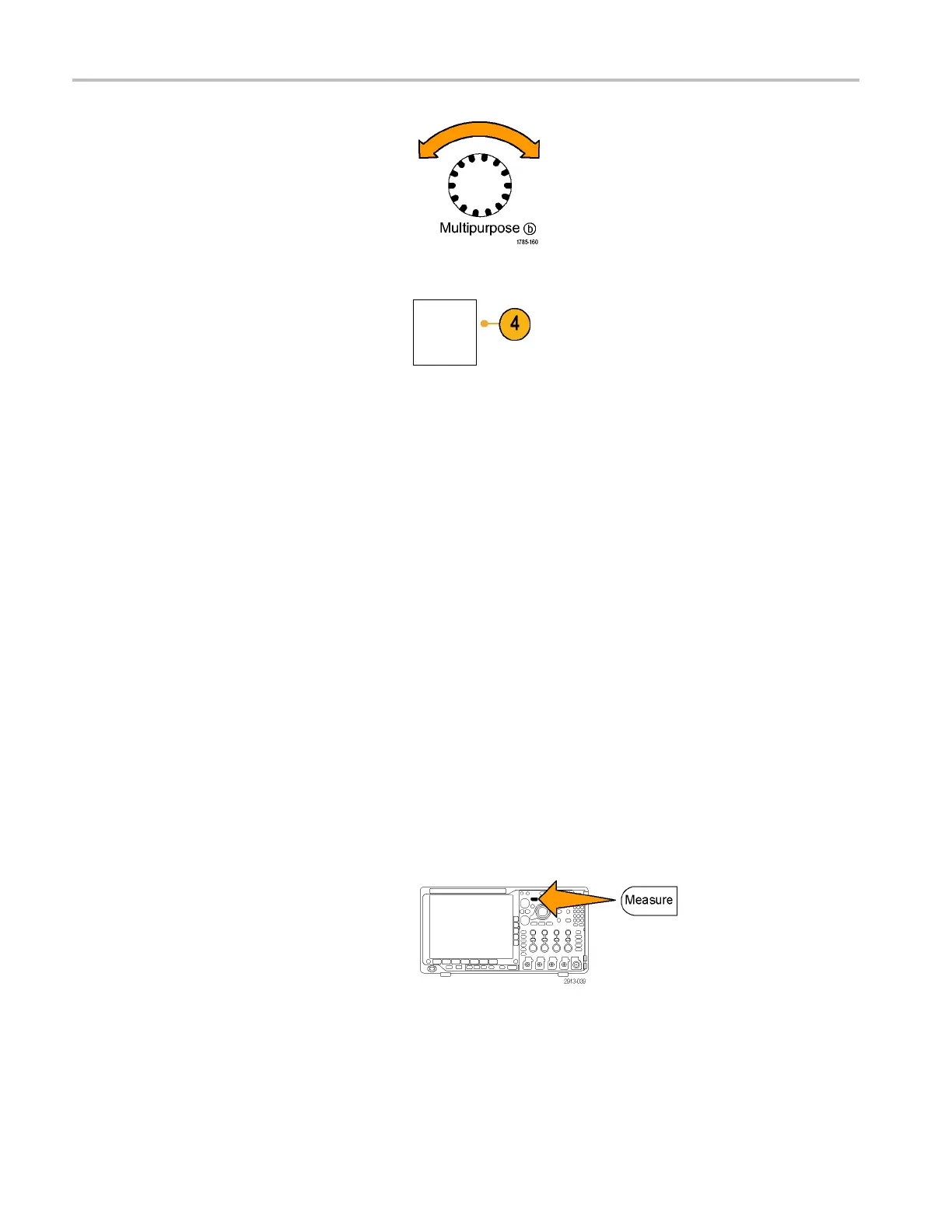

4. Turn multipurp
ose knob b to select the
Measurement Type of Snapshot.
5. Push OK Snapshot All Measurements.
OK
Snapshot
All Mea-
surements
6. View results.
Snapshot on 1
Period
+Width
Burst W
Rise
+Duty
+Over
High
Max
Ampl
Mean
RMS
Area
+Edges
+Pulses
: 312.2μs
: 103.7μs
: 936.5μs
: 1.452μs
: 33.23%
: 7.143%
: 9.200 V
: 10.40 V
: 16.80 V
: -5.396
V
: 7.769 V
:-21.58mVs
:1
:2
Freq
–Width
Fall
–Duty
–Over
Low
Min
Pk-Pk
CycleMe
an
CycleRMS
CycleArea
-Edges
-Pulses
: 3.203 kHz
: 208.5μs
: 1.144μs
: 66.77 %
: 7.143 %
: -7.600
V
: -8.800 V
: 19.20 V
: -5.396
V
: 8.206 V
: -654.6μVs
:0
:2
Reference Levels
Refe
rence levels determine how time-related
measurements are taken. For example, they are
used in calculating rise and fall times.
1. Push Measure.
128 MDO4000 Series Oscilloscopes User Manual
