Installation

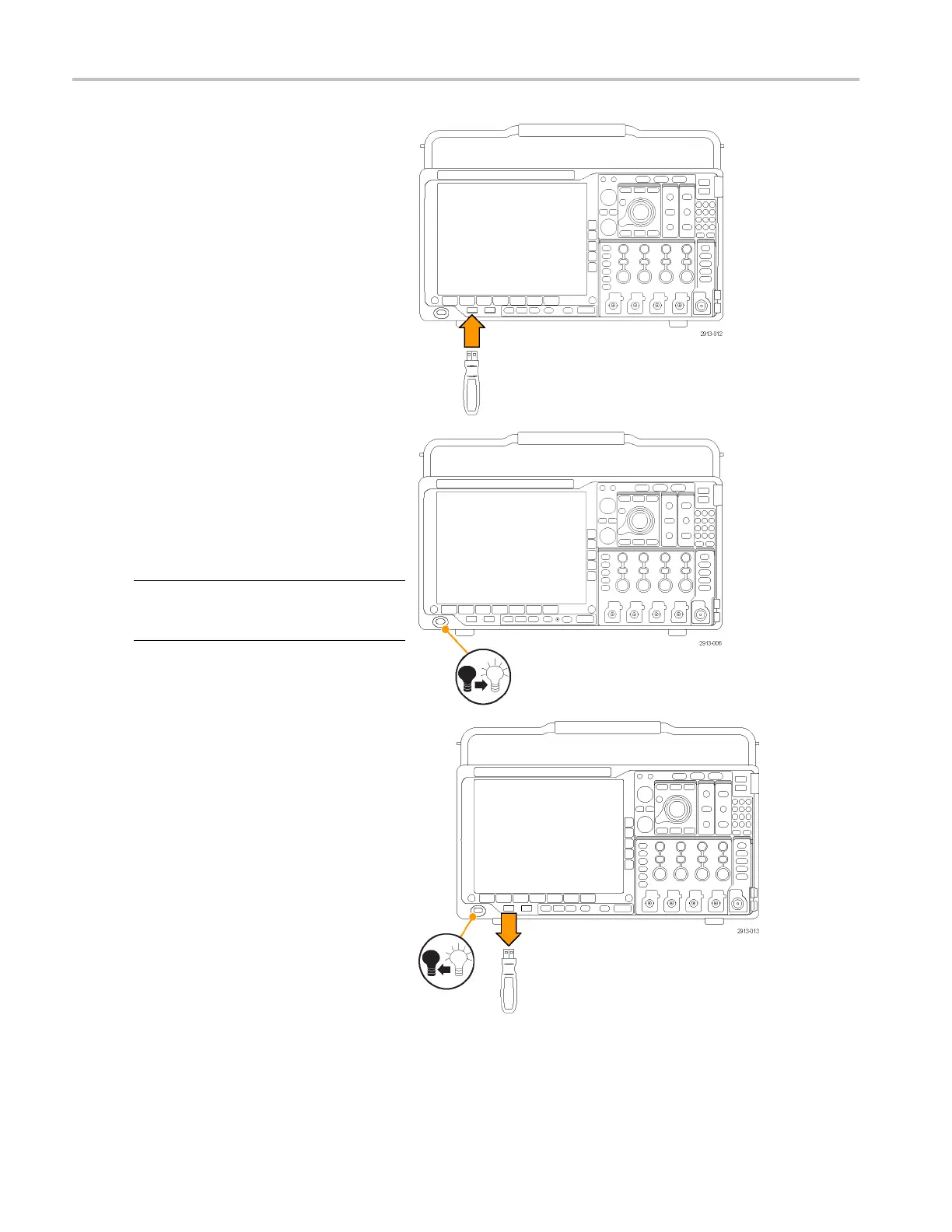

3. Insert the USB flash or hard drive into the
front-panel USB port on your oscilloscope.
4. Power on the oscilloscope. The instrument
automatic
ally recognizes the replacement
firmware and installs it.
If the instrument does not install the
firmwa re,
rerun the procedure. If the
problem continues, try a different model of
USB flash or hard drive. F inally, if needed,
contact
qualified service personnel.
NOTE. Do not power off the oscilloscope or
remove the USB drive until the oscilloscope
finishes
installing the firmware.
5. Power off the oscilloscope and remove the
USB fl ash or hard drive.
22 MDO4000 Series Oscilloscopes User Manual
