Tektronix MSO 5 Series User Manual

Getting acquainted with your instrument

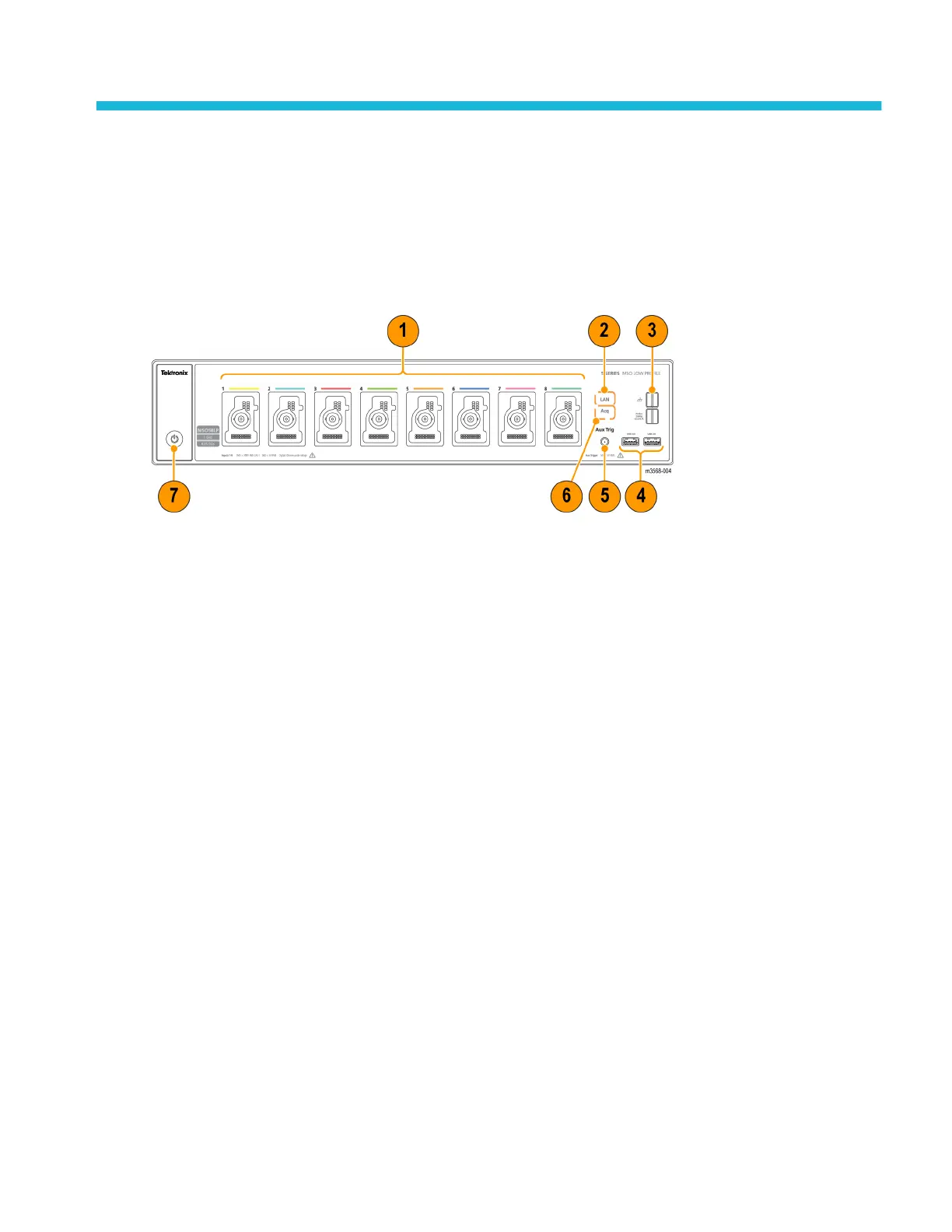

MSO58LP front panel connections
The front panel connections are where you power on or off the instrument, connect signals with probes or cables, connect an
external trigger input signal, insert USB devices, and access a probe compensation signal.
1. FlexChannel
®
probe connectors:
FlexChannel
®
connectors support all TekVPI+ and TekVPI measurement probes, BNC passive probes, the TLP058
FlexChannel
®
Logic Probe, and BNC cables. You connect most probes simply by pushing them into the connector until the
probe seats with a click. See Connecting Probes on page 5
2. LAN Status LED:
Shows the network connection and activity status:
■
Off - No power to instrument
■
Green - Network connection is good
■
Red - Network connection has fault or is not connected
MSO58LP Installation and Safety Manual 7
