NOTE. If the menu shows tabs other than Standard, then optional measurement types have been installed on the
instrument. Select a tab to show the measurements for that option.

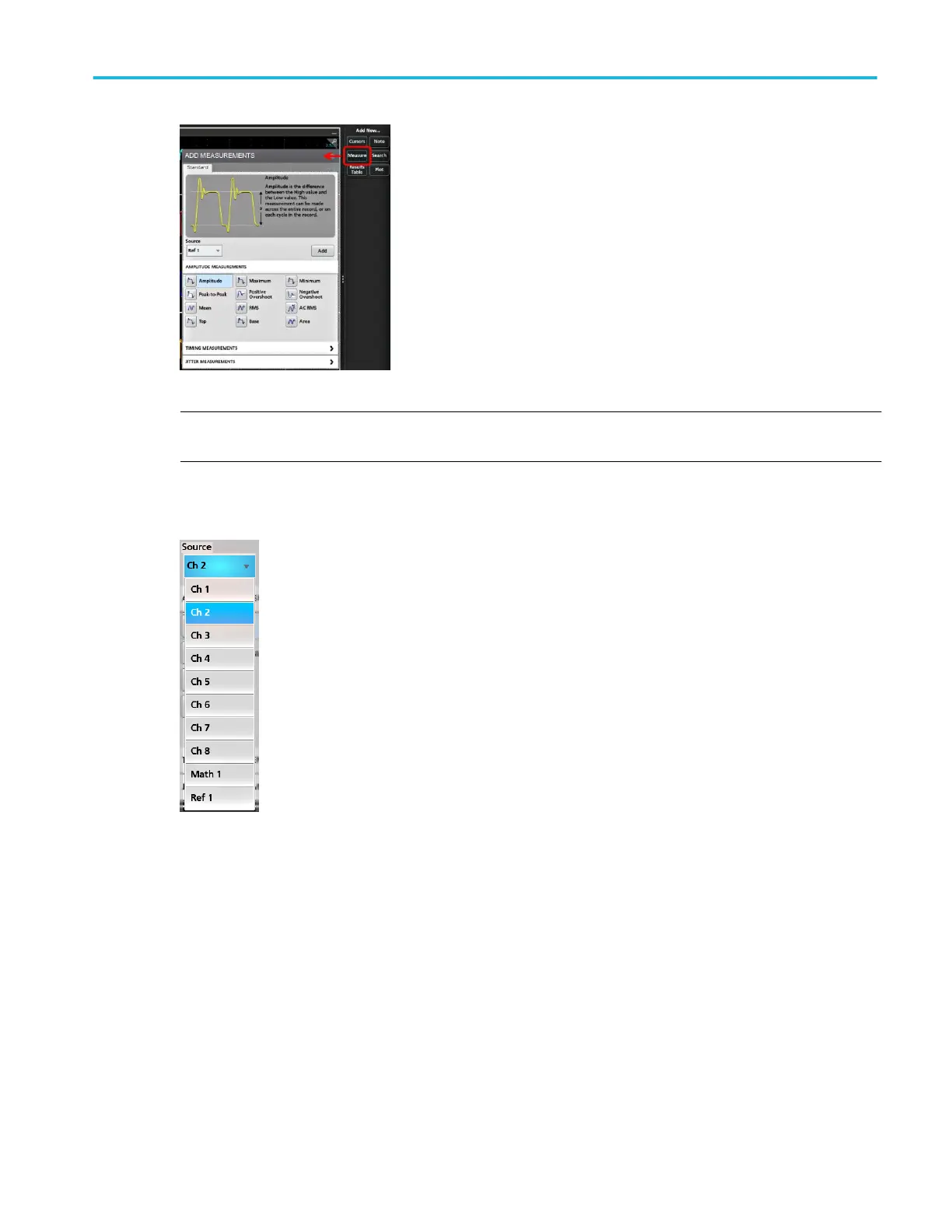

3. Tap the Source field and select the measurement source. The list shows all available sources that are valid for the
measurement.
4. Select from the configuration menu panels, such as Amplitude, Timing, and Jitter, to display measurements for those
categories.
5. Select a measurement and tap Add to add the measurement to the Results bar. You can also double-tap a measurement
to add it to the Results bar.
Analog channel operating basics
MSO54, MSO56, MSO58, MSO58LP, MSO64 Help 95
