Replaceable Parts (MSO/DPO5000 Series)

Table 5-30: Rep

laceable parts – Cable and connectors, rear chass is (MSO/DPO5000 Series)

Figure

and

index

no.

Tektronix

part no.

Serial

no.

effective

Serial

no.

discont’d Qty. Name a nd description

5-32-

CABLES, REAR CHASSIS

-1 174-5808-00 1

CABLE, IEC TO POWER SUPPLY

-2 174-5704-00 1

CABLE ASSEMBLY, MAIN BOARD TO INTERFACE POWER (COM-E BOARD)

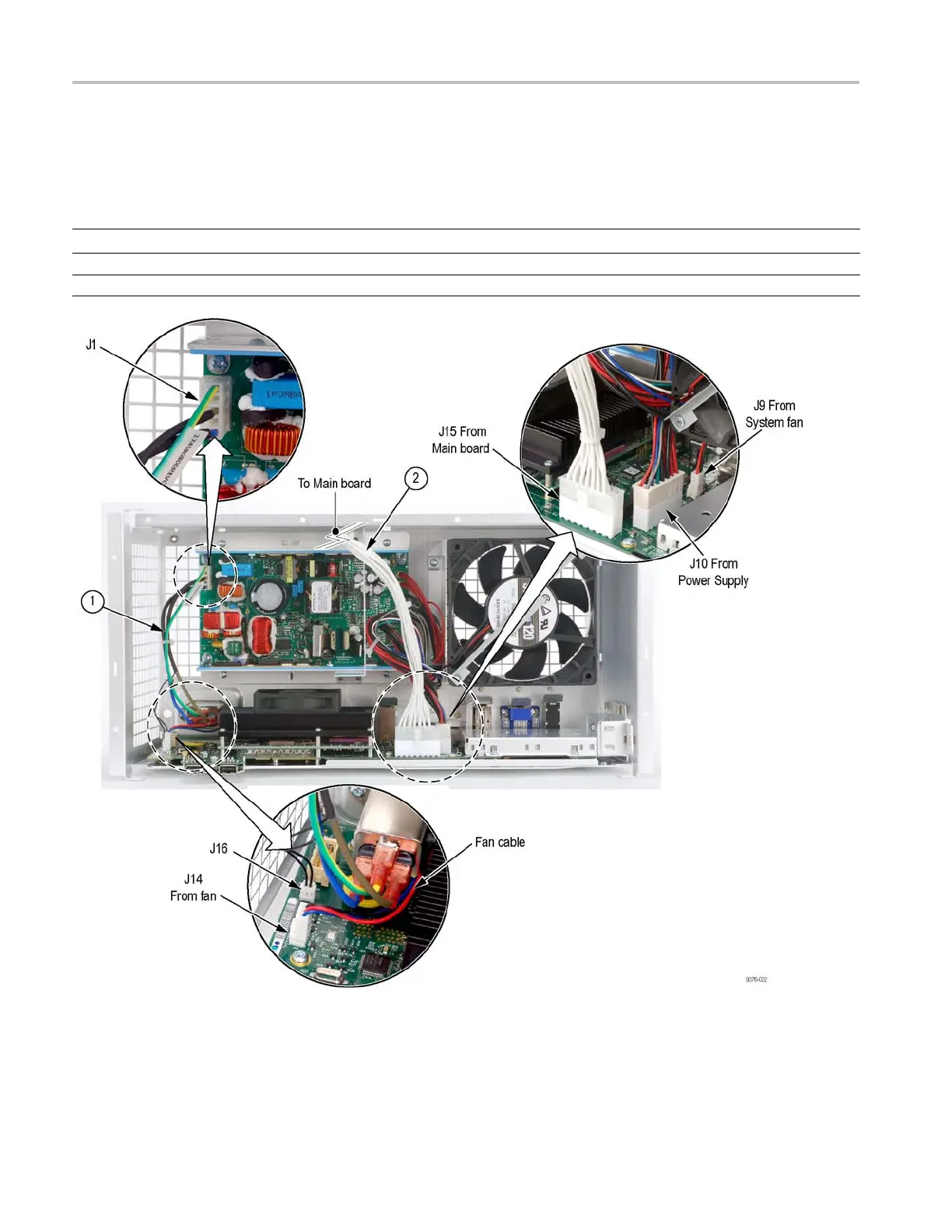

Figure 5-32: Rear chassis, showing cables and connectors (MSO/DPO5000 Series)

5–62 MSO70000/C, DSA70000B/C, DPO70000B/C, DPO7000, MSO5000, DPO5000 Series
