Disassembly

8. Remove the scre

w that attaches the probe input connector to the front panel

ampliﬁer board to the chassis. Pull the front panel assembly away from the

ampliﬁer and set it aside as shown.

9. Remove the three screws that attach the ampliﬁer board to the chassis.

10. Do in revers

e steps 9 through 2 to install a new ampliﬁer board.

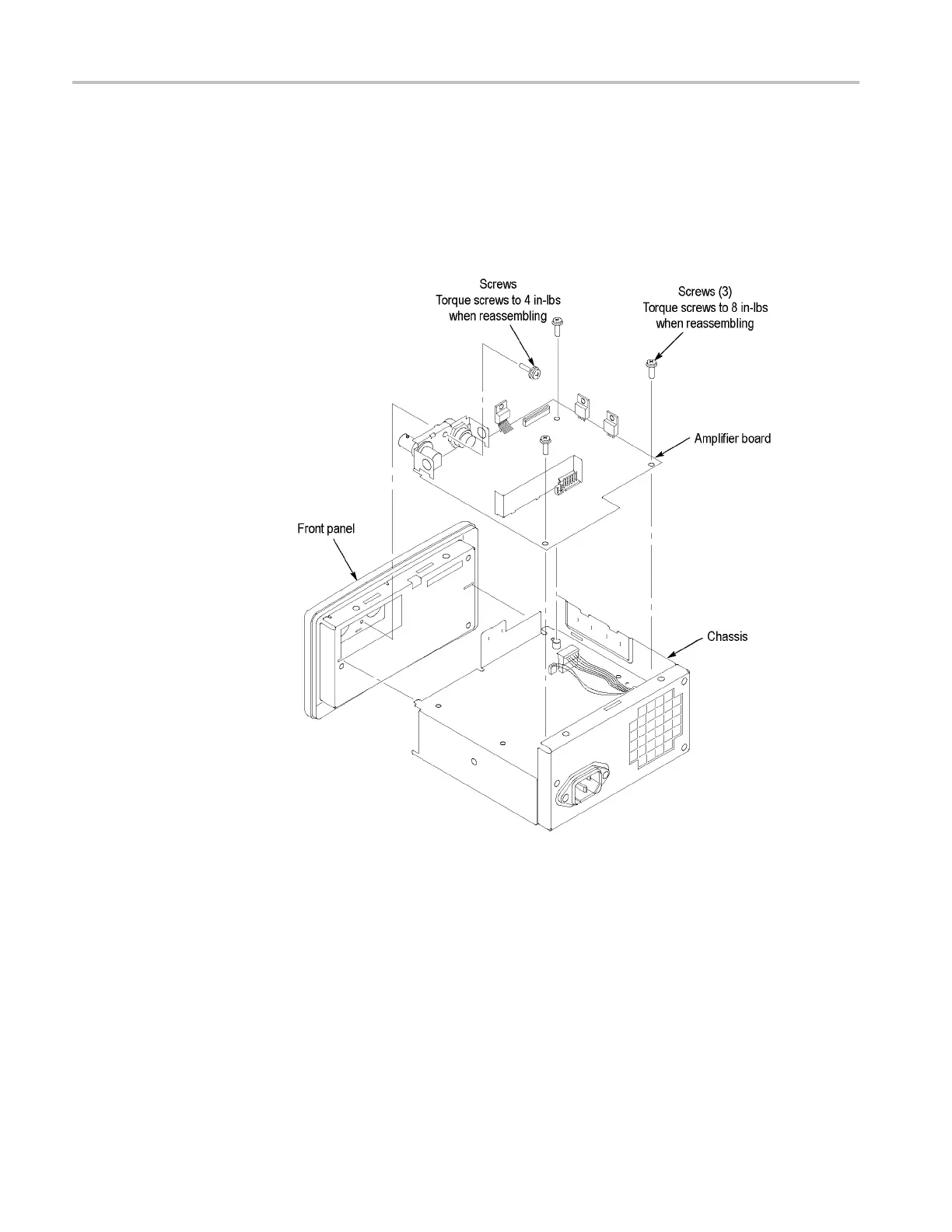

Fig

ure 25: Removing the ampliﬁer board

68 TCPA300/400 Ampliﬁers and TCP300/400 Series Current Probes Service Manual
