Check Signal Integrity (continued)
The TDS2000C Series’ automatic measurement system can also be
used to make such measurements quickly and automatically.

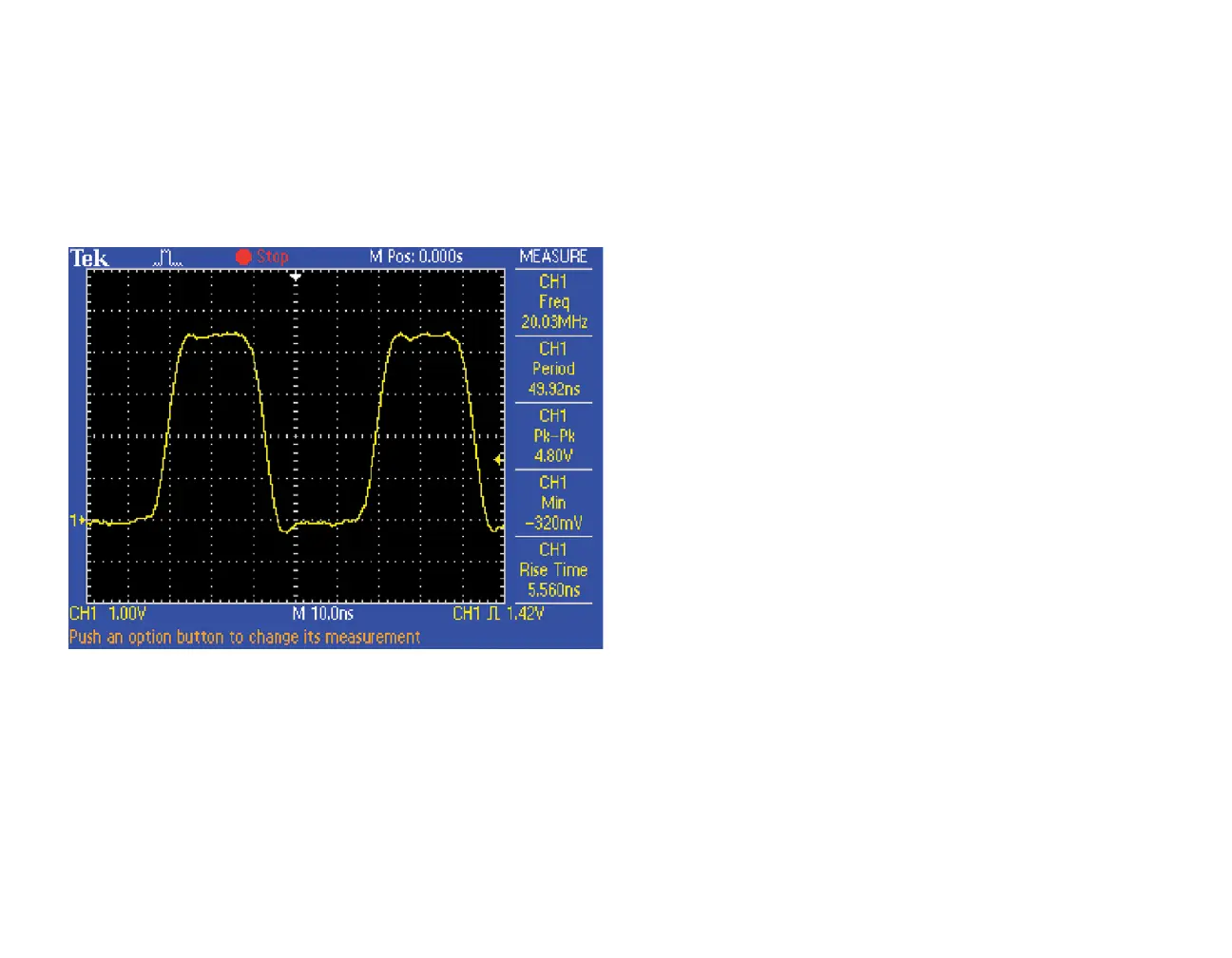

To make signal integrity measurements using
automatic measurement system:
1. Press the MEASURE front panel button.
2. Press a CH1 side menu button to add an automatic
measurement.
3. Press the Type side menu button until you find the desired
measurement, and then press Back.
4. Repeat steps 2 and 3 to select and display up to 5
measurements.
5. View the selected measurements on the right side of the display.
