TDS2000C Series Oscilloscope www.tektronix.com/tds2000 5
Getting Started
To optimize your troubleshooting task at hand, it is important to start
at the beginning – with proper probe compensation and attenuation,
default setup, and automatic instrument setup.
To properly compensate and attenuate your probe,
follow these simple steps:
1. Connect the probe to channel 1.
2. Attach the probe tip and reference lead to the PROBE COMP
connectors. If using the probe hook-tip, ensure a proper
connection by firmly twisting the tip onto the probe.
3. Push PROBE CHECK.
4. The oscilloscope will automatically check the probe attenuation
and check the shape of the displayed waveform to determine if
your probe is compensated correctly.
5. If necessary, it will instruct you to adjust your probe compensation.
To ensure that you begin with factory initialization
settings, follow these simple steps:
1. Press the front panel DEFAULT SETUP button.
2. Press the front panel AUTOSET button.

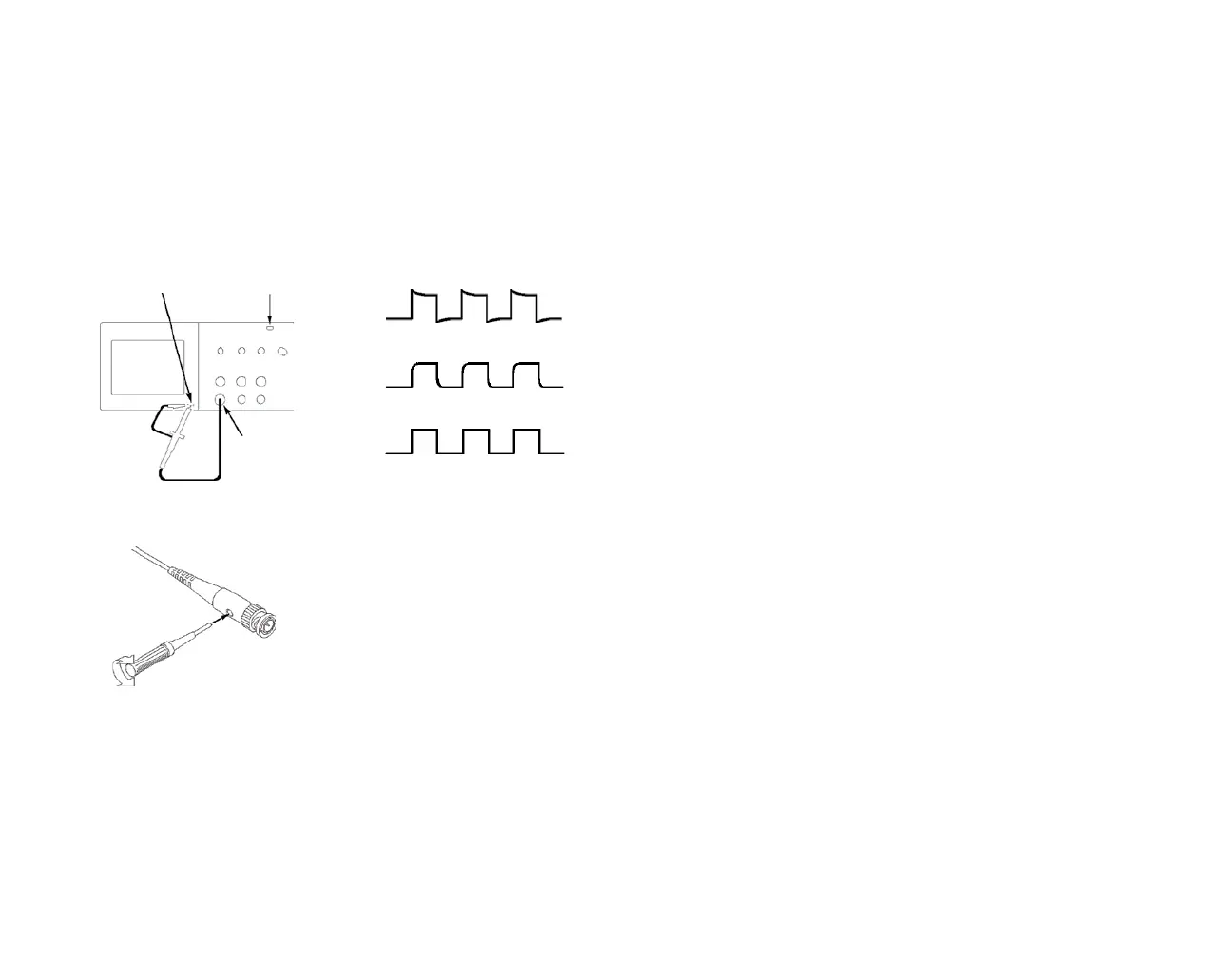

PROBE COMP AUTOSET
button
CH 1
Overcompensated
Undercompensated
Compensated Correctly
TPP Series
