TDS2000C Series Oscilloscope www.tektronix.com/tds2000 9
Verify Timing Relationships
Electronics engineers often need to verify that their circuits
are working as designed. One of the most common types of
oscilloscope measurements is timing measurements, such as pulse
width, period, and frequency. The TDS2000C Series’ cursors can be
used to make such measurements quickly and easily.
To make timing measurements using cursors:
1. Press the CURSOR button.
2. Press the Type menu button until the Time cursor type is
selected.
3. Press the Cursor 1 menu button.
4. To measure the timing relationship between two signals, place
cursor 1 on the first edge of interest, using the multipurpose knob.
5. Press the Cursor 2 button and place cursor 2 on the second
edge of interest, at approximately the same Voltage.

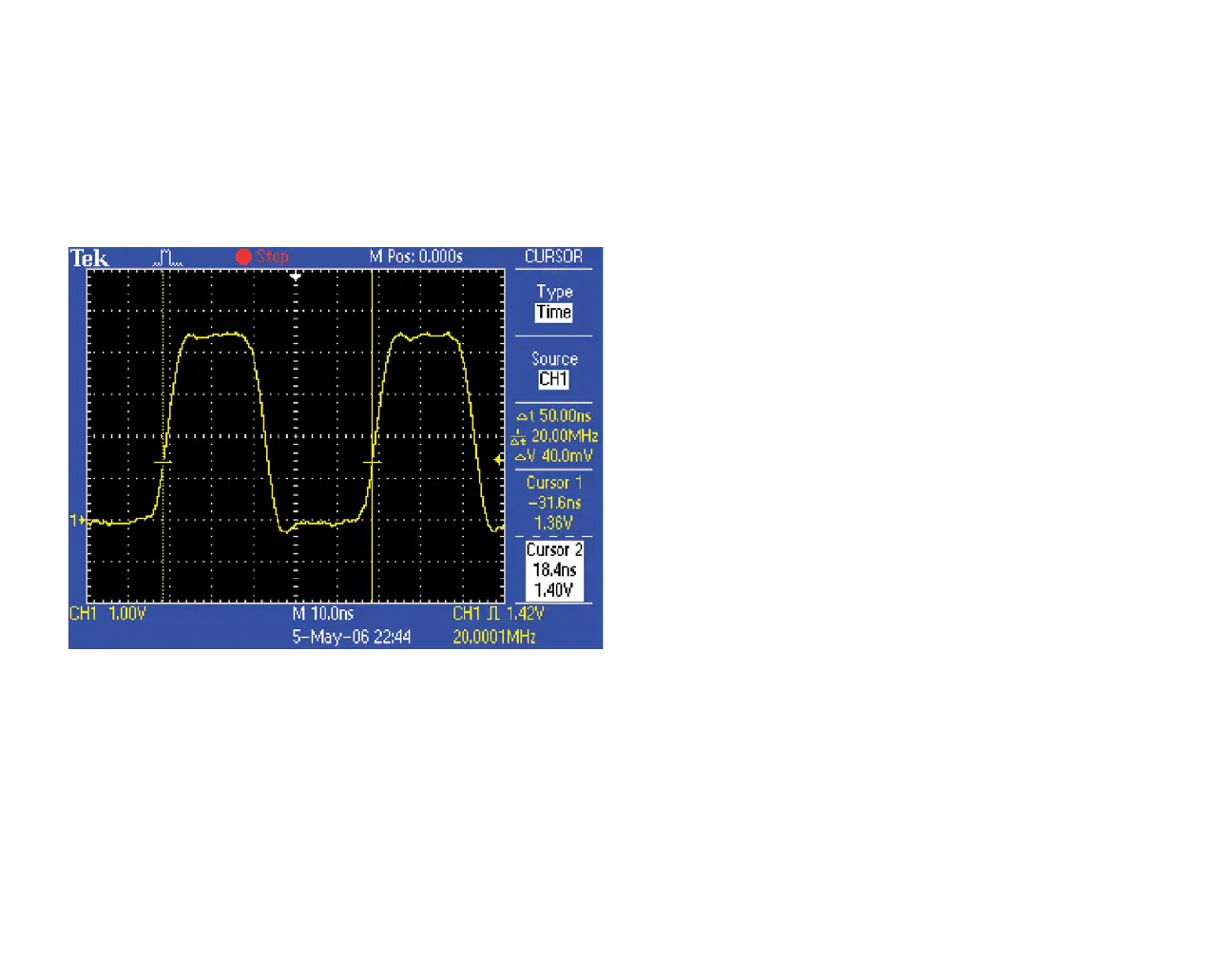

6. The cursor readouts indicate the timing of the cursors relative
to the trigger point. In this example, the Δt readout indicates
the period of the waveform, and the 1/Δt is the frequency of
the signal.
