Tektronix TDS2024 User Manual

Reference
82
TDS1000/2000-Series Digital Oscilloscope User Manual

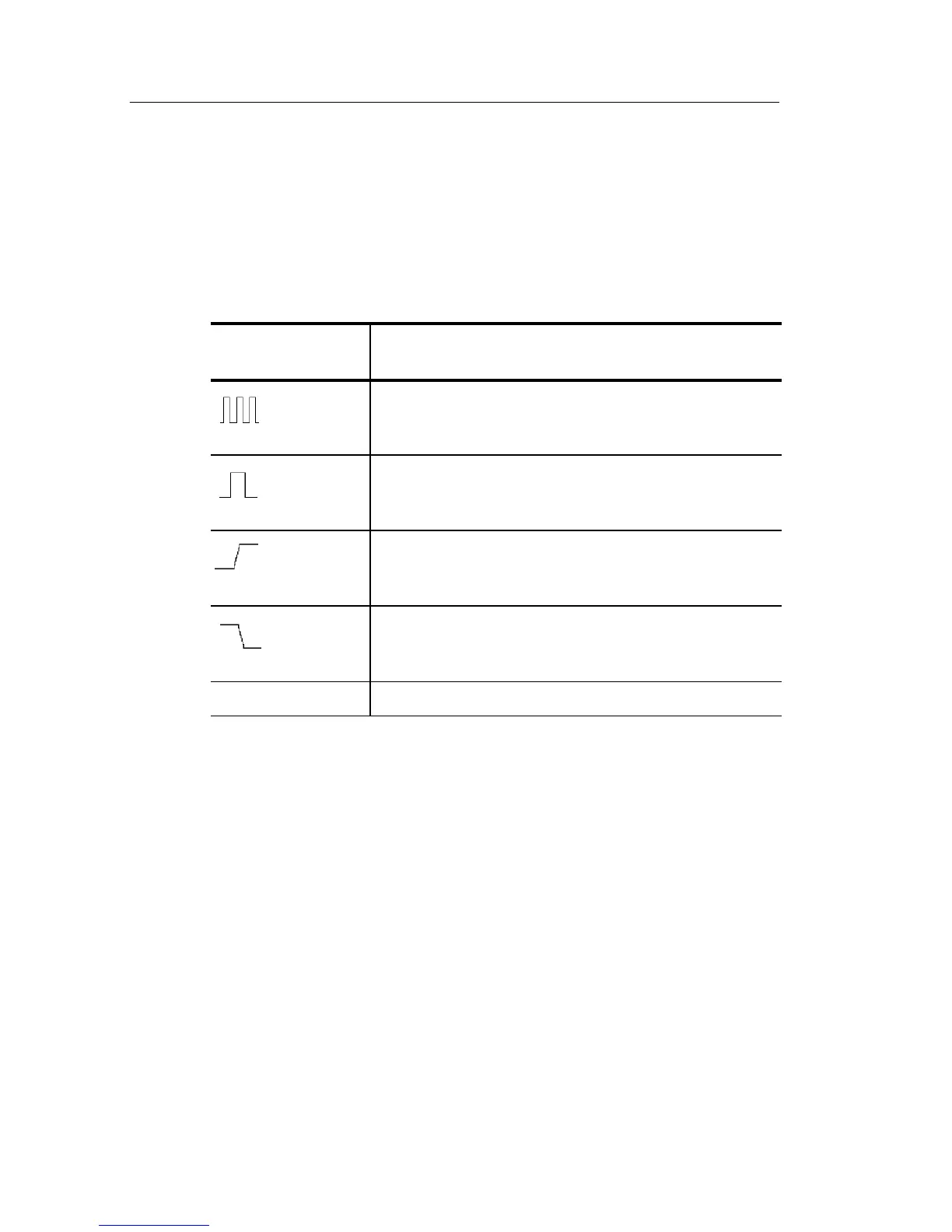

Square Wave or Pulse
When you use the Autoset function and the oscilloscope determines
that the signal is similar to a square wave or pulse, the oscilloscope
displays the following options:
Square wave or
pulse options
Details
Multi-cycle square
Displays several cycles with appropriate vertical and
horizontal scaling; the oscilloscope displays Pk-Pk,
Mean, Period, and Frequency automatic measurements
Single-cycle square
Sets the horizontal scale to display about one cycle of
the waveform; the oscilloscope displays Min, Max, Mean,
and Positive Width automatic measurements
Rising edge
Displays the edge, and the Rise Time and Peak-to-Peak
automatic measurements
Falling edge
Displays the edge, and the Fall Time and Peak-to-Peak
automatic measurements
Undo Setup Causes the oscilloscope to recall the previous setup

Tektronix TDS2024 Specifications

General

Channels	4
Bandwidth	200 MHz
Sample Rate	2 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Math Functions	Add, Subtract, Multiply, Divide, FFT
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Types	Edge, Video, Pulse
Connectivity	USB
Input Impedance	1 MΩ
Maximum Input Voltage	300 V
Interface	USB
Power Supply	100 to 240 V
Dimensions	326 mm x 158 mm x 124 mm
