Preface
TDS1000/2000-Series Digital Oscilloscope User Manual
xi
Conventions
This manual uses the following conventions:
H Front-panel buttons, knobs and connectors appear in all
uppercase letters. For example: HELP, PRINT.
H Menu options appear with the first letter of each word in upper
case. For example: Peak Detect, Window Zone.

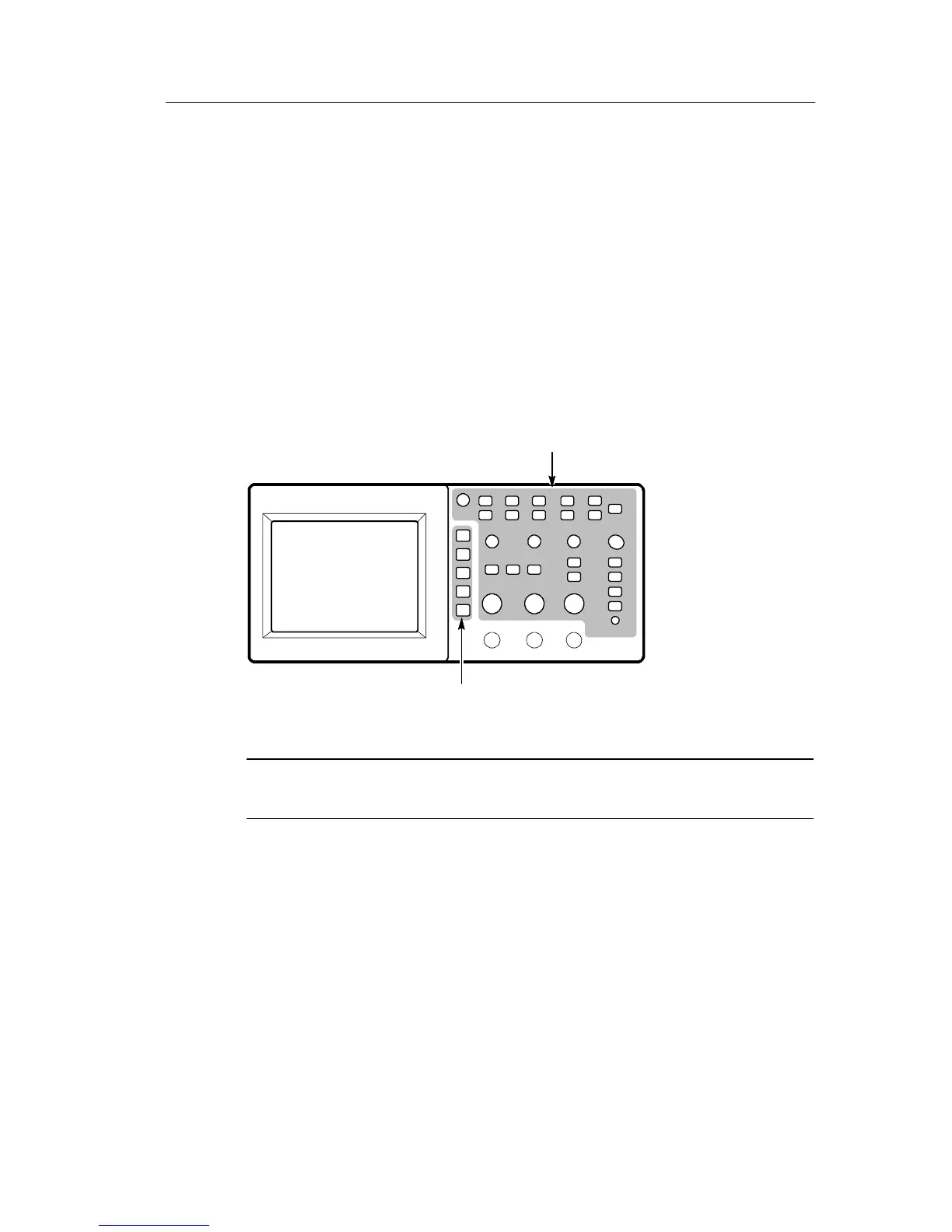

Front-panel buttons and
knob labels — All upper case
Option buttons — First letter of
each word on screen is upper case
NOTE. Option buttons can also be called screen buttons, side-menu
buttons, bezel buttons, or soft keys.
H The
" delimiter separates a series of button pushes. For example,
UTILITY
" Options " RS-232 means that you push the
UTILITY button, then push the Options option button, and then
push the RS-232 option button.

Tektronix TDS2024 Specifications

General

Channels	4
Bandwidth	200 MHz
Sample Rate	2 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Math Functions	Add, Subtract, Multiply, Divide, FFT
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Types	Edge, Video, Pulse
Connectivity	USB
Input Impedance	1 MΩ
Maximum Input Voltage	300 V
Interface	USB
Power Supply	100 to 240 V
Dimensions	326 mm x 158 mm x 124 mm
