Reference
TDS1000/2000-Series Digital Oscilloscope User Manual
87

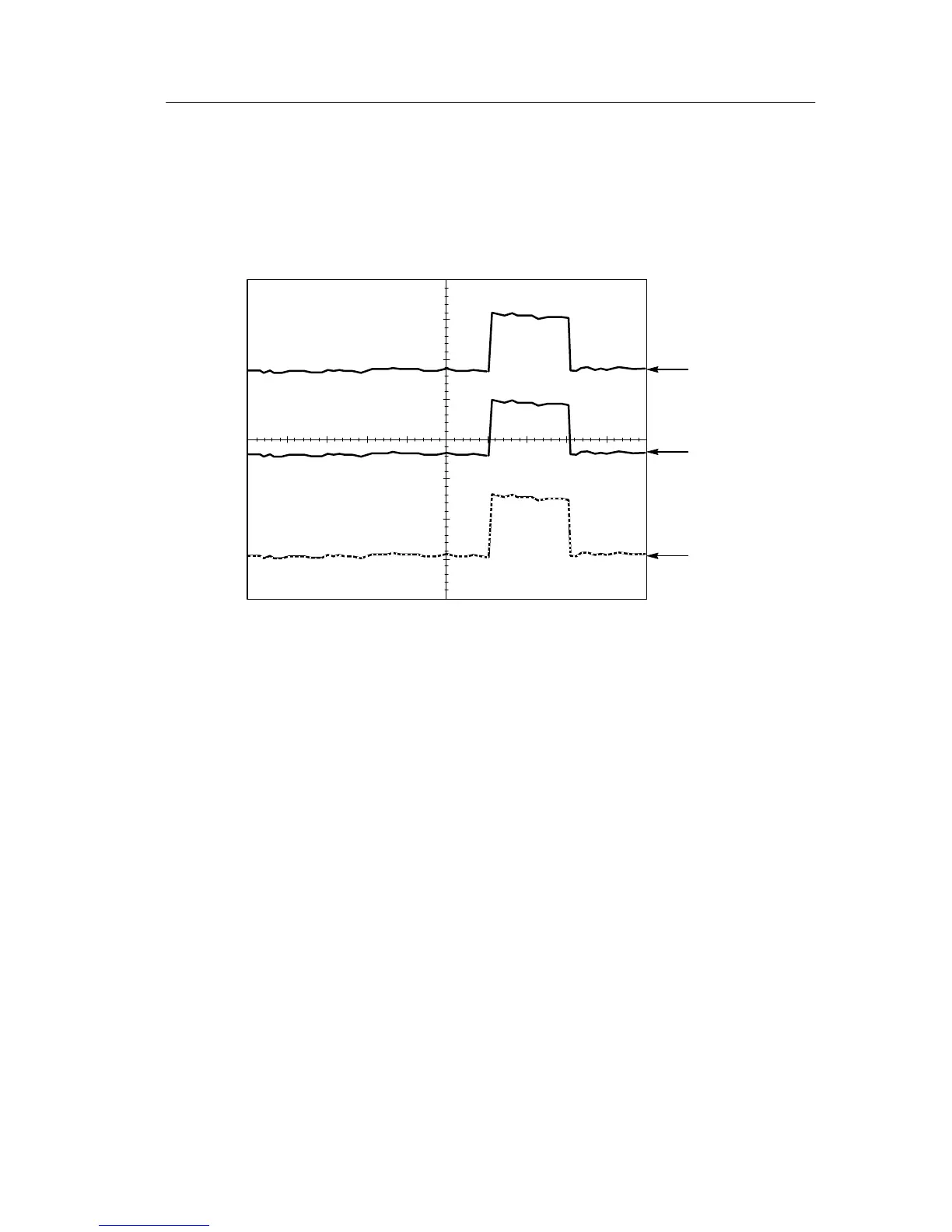

Depending on the type, wave forms will be displayed in three
different styles: solid, dimmed, and broken.
1
2
3
1. A solid waveform indicates a channel (live) waveform display.
The waveform remains solid when the acquisition is st oppe d if no
controls are changed that make the di splay accuracy uncertain.
Changing the vertical and horizont al controls is allowed on
stopped acquisitions.

Tektronix TDS2024 Specifications

General

Channels	4
Bandwidth	200 MHz
Sample Rate	2 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Math Functions	Add, Subtract, Multiply, Divide, FFT
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Types	Edge, Video, Pulse
Connectivity	USB
Input Impedance	1 MΩ
Maximum Input Voltage	300 V
Interface	USB
Power Supply	100 to 240 V
Dimensions	326 mm x 158 mm x 124 mm
